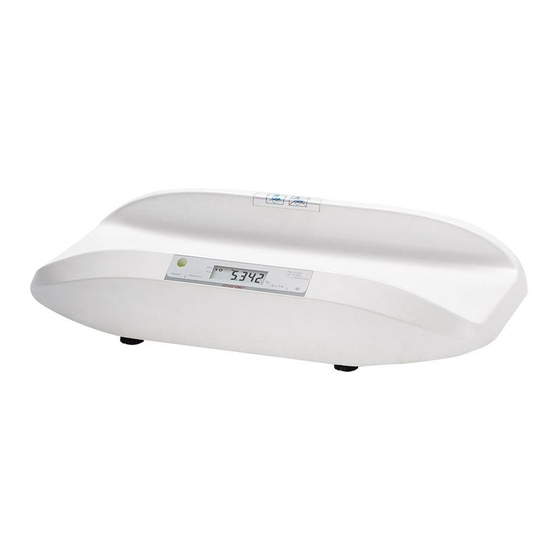

Charder MS5900 User Manual

Infant scale
Hide thumbs Also See for MS5900:
Table of Contents

Advertisement

Quick Links

Download this manual

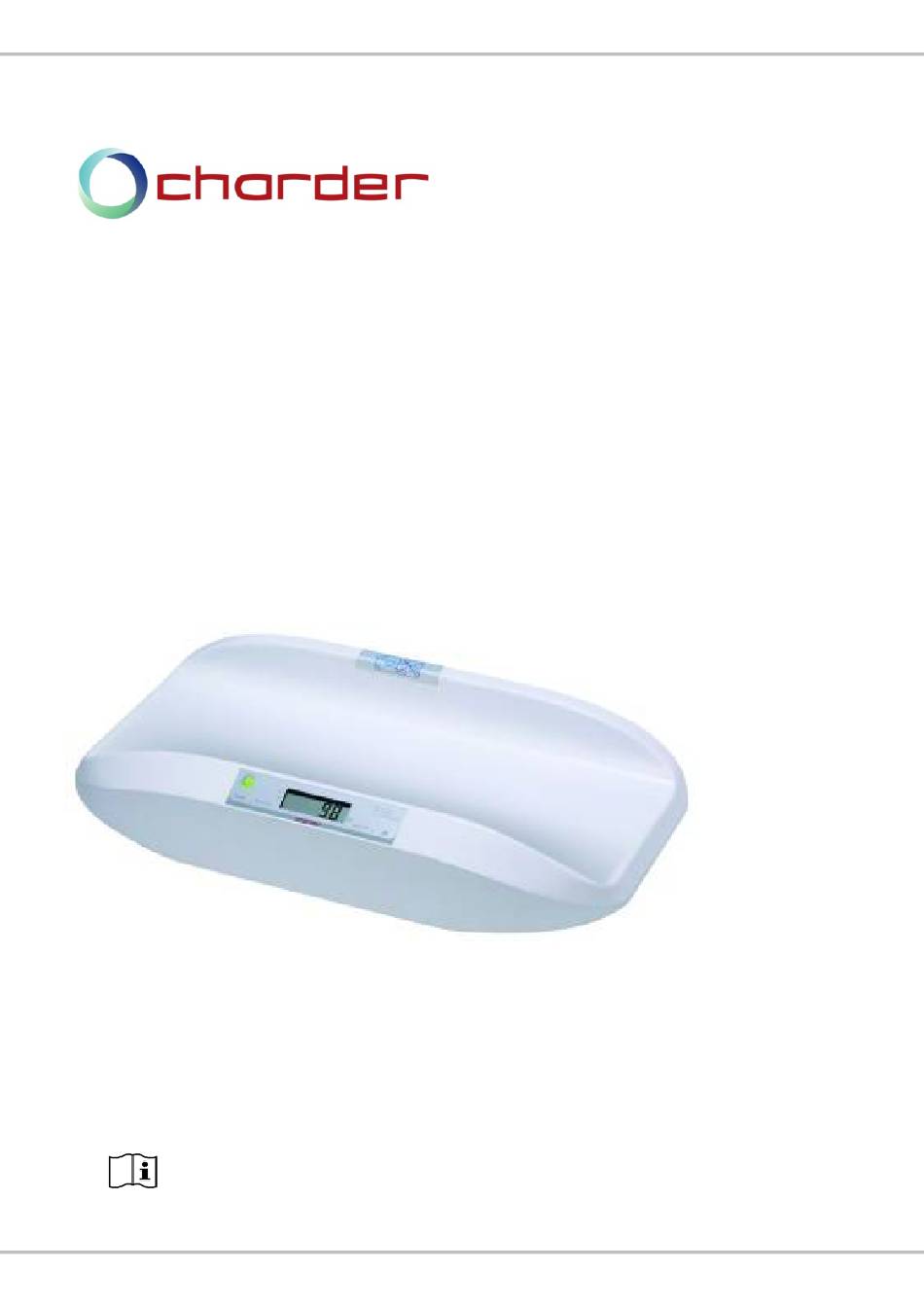

USER MANUAL
MS5900
Infant Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS5900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS5900

Summary of Contents for Charder MS5900

  • Page 1 USER MANUAL MS5900 Infant Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Height Measure Attachment ..........12 B. Inserting Batteries ............. 15 C. Using AC Adapter ............... 15 III. Indicator and Key Functions ..........16 IV.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. Disposal This product is not to be treated as regular household waste, but ...

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS5900 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5900 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5900 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS5900 Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    II. Installation A. Height Measure Attachment 1. Remove bracket holder cover. 2. Attach bracket to device with two screws.
  • Page 13 3. Attach height rod to bracket carefully until a click noise is heard. (HM80D used as example) 4. Install bracket holder cover. (HM80D) (HM80M)
  • Page 14 5. Disassembling height rod Locate buckle at bottom of height rod. Press down on buckle and slid out height rod.

  • Page 15: Inserting Batteries

    B. Inserting Batteries Step 1. Open battery cover and take out battery compartment. Insert batteries correctly according to polarity. prompt displays on the LCD, please replace batteries or plug in adapter. C. Using AC Adapter Device can be powered using AC adapter. Plug adapter into device before plugging into mains.

  • Page 16: Indicator And Key Functions

    III. Indicator and Key Functions Display : Stable : Negative weight : Zero Key Function 1. Hold/Milk Intake: Press [Hold/Milk Intake] key once to hold weight. To return to  normal weighing mode, press [Hold/Milk Intake] key again. Press and hold [Hold/Milk Intake] key for 3 seconds to enable ...

  • Page 17: Using Device

    IV. Using Device A. Basic Operation Switch on the device using key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ZERO] key to zero the device.
  • Page 18 Place baby on tray (5kg used an example) Triangle will appear next Press to "HOLD" Hold/Milk Intake Display flashes Press and hold three times and Memory/Recall stores baby key for 3 seconds to weight store baby weight. Baby can be removed from tray for feeding.

  • Page 19: Printing

    Press Hold/Milk Intake key to return to normal mode. D. Printing If thermal printer is connected to indicator via transfer cable, results can be printed.

  • Page 20: Wireless Connection

    V. Wireless Connection If the device has the wireless or bluetooth module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless or bluetooth software instructions for details. VI. Device Setup When the device is switched on, press and hold the [O/T] key until the display shows the "SETUP”, followed by "A_OFF”...
  • Page 21 Set scale ID: this function is used by service technician, and user normally does not need to change setting. Press [Hold/Milk Intake] to toggle between no/yes, and [O/T] to confirm selection. Bluetooth (optional): If device has Bluetooth module installed, Bluetooth function can be turned on or off. Press [Hold/Milk Intake] to toggle between on/off, and [O/T] to confirm selection.

  • Page 22: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 23 If the steps above cannot resolve the problem, re-calibration may be  required to correct weighing accuracy Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...
  • Page 24 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Zero count over Re-calibration calibration zero range required.

  • Page 25: Product Specifications

    VIII. Product Specifications A. Device Information Model MS5900 Weight Capacity (15 kg model) (20 kg model) Measurement 0-6 kg x 2g 0-10 kg x 5g 6-15 kg x 5g 10-20 kg x 10g Accuracy ±3g<6kg>±7.5g LCD Screen 1.0-inch LCD screen (5 digits)

  • Page 26: Power Adapter Standards

    B. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below. DRAWING NO.: CE APPROVED TYPE NO. / TYPE Adapter VOLTAGE MODEL NO.: plug 9V DC 100mA AD-038A D41W1090100-13/1 9V DC 100mA AD-0484 D35W090100-23/1 9V DC 100mA...
  • Page 27 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 28: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-00120 REV XXX 09/2020...
