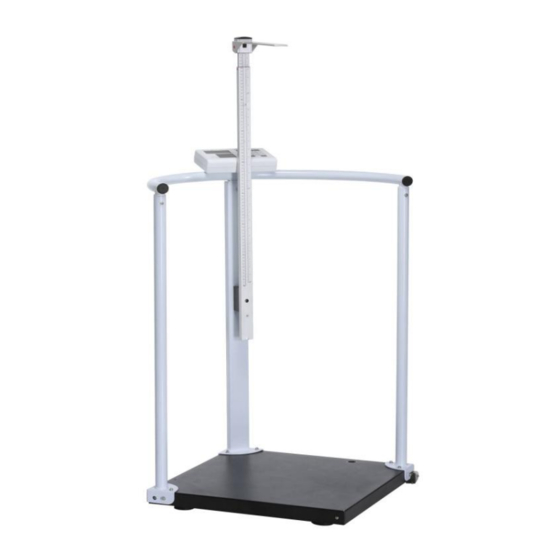

Charder MS2504 User Manual

Stand-on floor scale
Hide thumbs Also See for MS2504:
Table of Contents

Advertisement

Quick Links

Download this manual

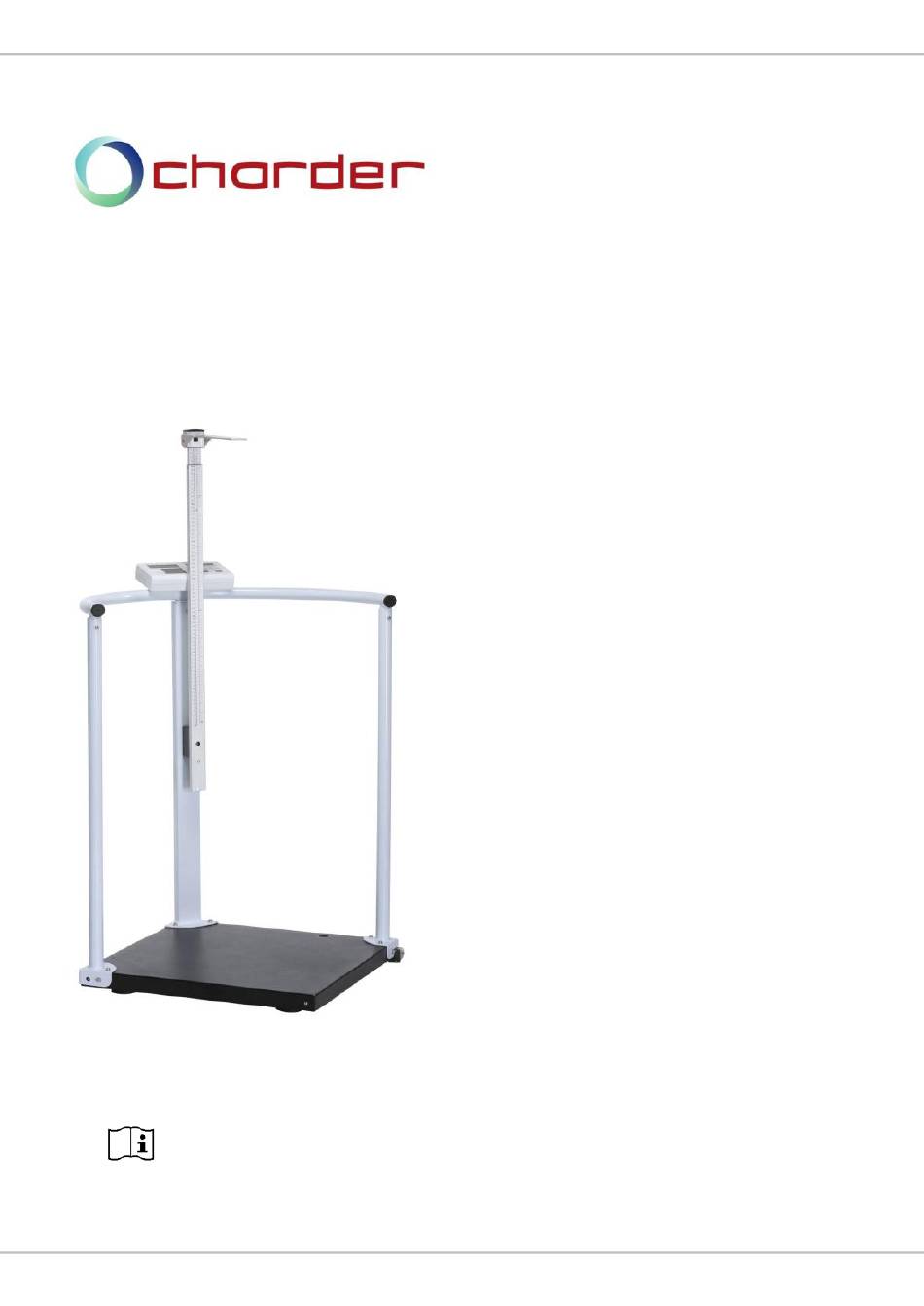

USER MANUAL
MS2504
Stand-on Floor Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2504 and is the answer not in the manual?

Questions and answers

Related Manuals for Charder MS2504

Summary of Contents for Charder MS2504

  • Page 1 USER MANUAL MS2504 Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Assembly ................12 B. Inserting Batteries ............. 16 C. Using Adapter ..............19 D. Attaching Height Rod to Column .......... 20 III.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS2504 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS2504 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS2504 Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS2504 Stand-on Floor Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    transmitter in watts (W) according to the transmitter manufacturer. NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. II.
  • Page 13 3. Attach third handrail to platform. Tighten upper screws first Tighten side screws after...
  • Page 14 Attaching handrail 1. Attach handrail columns to platform 2. Attach handrail to column with screws NOTE: securely tighten screws mounting handrail to column.
  • Page 15 Attaching indicator 1. Ensure screws securing indicator to handrail are tight (bottom view)

  • Page 16: Inserting Batteries

    B. Inserting Batteries 1. Open battery housing cover 2. Accessing batteries Take out the battery housing 3. Use either rechargeable battery pack, or AA batteries...
  • Page 17 4. Ensure batteries are installed into the housing correctly Rechargeable Battery Housing AA-size Battery Housing 5. Install the battery housing into the compartment, and make sure the right side of housing pin is facing towards inside of the connecting position...
  • Page 18 6. Slide back the cover to close the battery housing compartment. Turn on power to confirm that battery is correctly installed. Using Rechargeable Battery (optional) The rechargeable battery should be recharged at least once every 3 months, regardless of if the device has been used. Battery can be charged by plugging device's exclusive adapter into AC Connector Port.

  • Page 19: Using Adapter

    C. Using Adapter 1. Connect adapter to indicator before connecting to mains power supply 2. Disconnect adapter from mains power supply before unplugging adapter pin from indicator. AC Connector Port...

  • Page 20: Attaching Height Rod To Column

    D. Attaching Height Rod to Column Installation 1. Attach two fixing blocks to column. 2. Attach height rod to fixing blocks using two screws.
  • Page 21 Connecting Digital Height Rod to indicator 1. Locate USB port on back of height rod 2. Connect USB cable (9 pin DIN) to USB port on height rod. 3. Locate 9 pin DIN port on bottom of indicator, and connect USB cable.
  • Page 22 Calibrating Height Rod (HM200D) Slide measurement rod down completely. Turn on HM200D using [ON/OFF] key. If height display is not at "120cm", press [Reset] key to calibrate to 120cm. Calibrating Height Rod (HM201D) Slide measurement rod down completely. Turn on HM201D using [BMI] key on indicator.

  • Page 23: Indicator

    III. Indicator A. Indicator and Key Functions (Wireless functionality optional) Key Function 1. ON/OFF: Power on or power off. 2. ZERO: Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to enter device settings. 3.

  • Page 24: Display Layout

    B. Display layout Definitions Stable symbol: Indicate that weight is stable. Zero symbol: Weight is at zero Minor weight: Weight under zero. Low battery: Battery needs to be charged or replaced.

  • Page 25: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ZERO] key to zero the device.

  • Page 26: Tare

    move to next digit. Press [CLEAR] key to re-input. Press [TARE] key to manually move to next digit. 4. After inputting height, press [ZERO] to confirm. 5. Proceed to weigh subject as usual. Indicator will display weight, height, and BMI. NOTE: Hold function can be used at this time if weight is unstable 6.

  • Page 27: Pre-Tare

    E. Pre-Tare The Pre-Tare function is used to subtract the known weight of a substance prior to weighing. The MS2504 can store 5 sets of pre-tare values. Pre-tare values can be stored using two different methods: "Load Weight", or "Input Manually".
  • Page 28 B. Input Manually DESCRIPTION EXAMPLE Press [PRE-TARE] key. Left-most digit will begin blinking. If no further action is taken within 6 seconds, indicator will return to normal mode While digit is blinking: Enter pre-tare weight using 0~9 keys. Ex: to pre-tare 5.0 kg of weight, press 0-0-5-0.
  • Page 29 Press numeral key 1 ~ 5 to assign this number with the current pre-tare weight. Press [ENTER] key to store pre-tare weight; the indicator will make a beep sound. C. Recall Pre-Tare Weight DESCRIPTION EXAMPLE Press and hold [PRE-TARE] key for 3 seconds.

  • Page 30: Print

    Press [CLEAR] key to return to Normal Mode NOTE: Pre-tare weight must be under max capacity, otherwise screen will show 0.00 after [ENTER] key is pressed, and the operator will have to re-input pre-tare settings. F. Print If thermal printer is connected to indicator, results can be printed by pressing [PRINT] key.

  • Page 31: Device Setup

    V. Device Setup A. Setting Time & Date Press and hold [HOLD] key for 3 seconds to enter Time Setting mode. Example: Inputting 2008, Dec 25, 8:00am Year Setting Enter year using numeral keys 0-9. Press [HOLD] key once completed to proceed to month &...

  • Page 32: Device Setup

    B. Device Setup When the device is switched on, press and hold the [ZERO] key for about 3 seconds, until the display shows the "SETUP”, followed by "A.OFF” (first option in setting menu). In device setup menu: [TARE] to toggle next menu option [ZERO] to toggle previous menu option [HOLD] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain...
  • Page 33 Language: Set thermal printer language Press [HOLD] to toggle between English, Italian and Polish. Press [TARE] key to confirm selection. Font size: Set thermal printer font size. Press [HOLD] to toggle between normal and double (larger). Press [TARE] key to confirm selection. Bluetooth (optional): If device has Bluetooth module installed, Bluetooth function can be turned on or off.

  • Page 34: Setup Usb Connection To Pc

    USB 2.0 or above. Operators should select a USB cable length that is most suitable to the operating environment. 1. Charder Smart Data Manager can be used to connect the device to a PC. The software program can be downloaded from the Charder website: [LINK URL] https://www.chardermedical.com/download.htm...
  • Page 35 Conducting Measurement 1. Input subject's first name, last name, patient ID, date of birth (DD/MM/YYYY), gender, and height (for BMI calculation) into software if needed. Press [Clear] to clear all input. NOTE: information can also be input after weight measurement. 2.
  • Page 36 Saving & Printing Results 1. Press [Save as] to save measurement results as .csv file on PC. Default file name is same as user ID. (ex: 20190201.csv) To track changes and multiple measurements for the same subject, we recommend not changing the default file name. 2.

  • Page 37: Wireless Connection

    3. Press the printer icon to print out result using a printer connected to the PC. VII. Wireless Connection If the device has the wireless or bluetooth module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless or bluetooth software instructions for details.

  • Page 38: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 39 Ensure printer is supplied with power. Ensure PC software is set up  properly as indicated in this manual Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...
  • Page 40 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or...

  • Page 41: Product Specifications

    IX. Product Specifications A. Device Information Model MS2504 Display DP3710 Weight Capacity 300 kg x 0.1 kg Measurement Accuracy ± 0.15 kg OIML Class III LCD Screen 1.0-inch LCD screen (5 1/2 digits) Dimensions Overall 550(W) x 550(D) x 1090(H) mm...

  • Page 42: Standard Accessories

    B. Standard Accessories Accessories Item Spec. Qty. Adjustable feet SW-8080B Round head socket screws M5*0.8*18 (for columns) Washer head screws M5*0.8*38 (for handrail) Locknut M5(T=6.2) (for handrail) screws M4*0.7*8 (for indicator) washer M5x12x1 (for handrail) Rubber washer for handrail screws SW-8074 and nut user manual...

  • Page 43: Power Adapter Standards

    C. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below.

  • Page 44: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-00145 REV XXX 09/2020...
