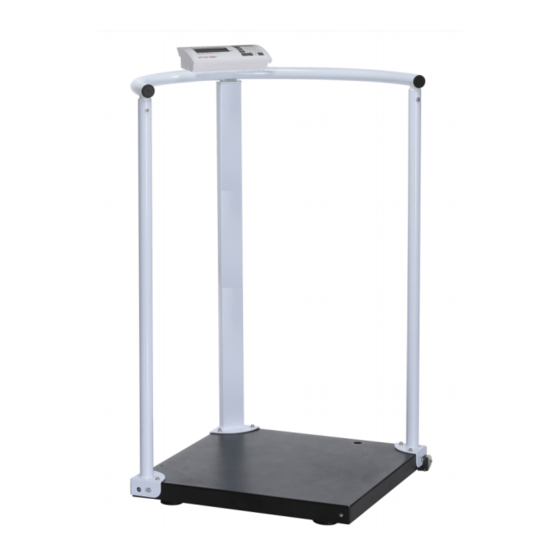

MS2500 / MS2501
Medical Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2500 and is the answer not in the manual?

Questions and answers

Related Manuals for Charder MS2500

Summary of Contents for Charder MS2500

  • Page 1 MS2500 / MS2501 Medical Scale USER MANUAL Please keep the instruction manual at hand all the time for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PREFACE ..................2 GENERAL INFORMATION .............. 2 SAFETY INSTRUCTION..............2 ENVIROMENTAL ................2 CLEANING ..................2 MAINTENANCE ................3 WEIGHING OPERATION..............4 WARRANTY-LIABILITY ..............4 DISPOSING OF THE SCALE ............5 EXPLANATION OF THE GRAPHIC SYMBOLS....... 5 EMC GUIDANCE AND MANUFACTURER'S DECLARATION ..

  • Page 3: Preface

    PREFACE Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating instructions, please contact your CHARDER MEDICAL service partner, or visit us on the Internet at www.chardermedical.com...

  • Page 4: Maintenance

    The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact your local dealer or CHARDER MEDICAL service partner.

  • Page 5: Weighing Operation

    WARRANTY-LIABILITY If a fault or defect is present on receipt of the unit which is within CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid.

  • Page 6: Disposing Of The Scale

    If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period.
  • Page 7 Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Charder scales. +60°C Transport and storage temperature limit indicating the upper and the -20°C lower limit...

  • Page 8: Emc Guidance And Manufacturer's Declaration

    EMC guidance and manufacturer's declaration Guidance and manufacturer’s declaration-electromagnetic emissions The digital weighing scale is intended for use in the electromagnetic environment specified below. The customer or the user of the digital weighing scale should assure that it is used in such an environment. Electromagnetic Emission test Compliance...
  • Page 9 Electrical fast ± 2kV for power ± 2kV for power Mains power quality transient/burst supply lines + supply lines Not should be that of a typical IEC 61000-4-4 1kV for applicable commercial or hospital input/output environment. lines Surge IEC ± 1kV line(s) to ±...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The digital weighing scale is intended for use in the electromagnetic environment specified below. The customer or the user of the digital weighing scale should assure that is used in such and environment. IEC 60601 test Compliance Electromagnetic Immunity test...
  • Page 11 NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
  • Page 12 Recommended separation distance between portable and mobile RF communications equipment and the digital weighing scale The digital weighing scale is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the digital weighing scale can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the digital weighing scale as...

  • Page 13: Specification

    Humidity 15% - 85% RH Transport / Storage - 20°C … + 60°C Temp. & Humidity 10% - 95% RH MS2500:ON/OFF, UNIT, HOLD/BMI, TARE MS2501 4key OIML CIII ON/OFF, (zero), HOLD , TARE MS2501 20key OIML CIII Key Functions ON/OFF, (Zero), PRINT, BMI, HOLD, PRE TARE, TARE, CLEAR, ENTER, 0~9.M1~M5...

  • Page 14: Medical Scale Models Approval List

    Medical Scale Models Approval List The Medical Scales listed below are the certified models under the Council Directive 93/42/EEC for standard of safety, health protection and accurate metrology characteristics of medical scales: PRODUCT PRODUCT MODEL NO. CLASS DESCRIPTION Medical Scale MS21-NEO, MS-2320, MS-2501, MS-2514, MS-3800, MS-4610, MS-4940,...

  • Page 15: Power Adaptor Standards

    POWER ADAPTOR STANDARDS AMP VOLTAGE DRAWING NO.: CE APPROVED TYPE NO. TYPE / MODEL NO.: 9V DC 100mA AD-038A REV 007 D41W1090100-13/1 9V DC 100mA AD-0484 REV 001 D35W090100-23/1 9V DC 100mA AD-0484 REV 001 SP35-90100 9V DC 100mA AD-037A REV 003 D41WK090100-13/2 9V 100-200mA AD-8082A REV 001...

  • Page 16: Lcd Display

    LCD DISPLAY PRE-TARE Indication Hold Indication NET WEIGHT Indication WEIGHT Indication BMI Indication Definitions Stable symbol: When user stands on scale and is stable. Minor weight: Weight under zero. Zero symbol: Weight is at zero point. Low battery: Voltage is too low to operate. Stable symbol Minor weight...

  • Page 17: Assembly Instruction

    ASSEMBLY INSTRUCTION Step1. Fixing first handrail column on platform (figure1) Tighten screws first Fixing second handrail column on platform (figure2)
  • Page 18 Fixing third handrail column on platform (figure3) Fixing third handrail column on platform (figure4) Tighten upper screws first Tighten side screws after...
  • Page 19 Step2.Fixing handrail. Assemble handrail and column.
  • Page 20 Fixing handrail and column with screw. Attention : The screws to mount handrail must be tightly fixed...
  • Page 21 Step3. Fixing DP2701 indicator. Make sure DP2701 is well fixed on column...

  • Page 22: Key Functions

    KEY FUNCTIONS MS2500 (NP-4444) MS2501 4KEY OIML CIII VERSION MS2501 20keys OIML CIII version...
  • Page 23 SEMI AUTO TARE: To tare weight. TARE : To tare weight [MS2500] [MS2501 OIML type] UNITS: To select between metric and imperial measuring unit. [MS2500] CLEAR: To clear digits while wrong input. ENTER: Press to DECIDE or END your operation.

  • Page 24: Setting Up Your Device

    This enables operator to setup period to shut off device with no operation automatically. BUZZER ON/OFF SETUP This enables operator to setup ON/OFF to the buzzer. Auto off time: 120 sec/180 sec/240 sec/300 sec/off Buzzer: On/Off KEY DIRECTION OPERATION FLOW for 3 seconds. TARE MS2500 Press to complete setting. Press to complete setting.

  • Page 25: Setting Up Your Device Step By Step

    SETTING UP YOUR DEVICE STEP BY STEP For Example: Setup 180s AUTO-OFF time and Buzzer OFF Press for 3 seconds to enter setting mode. Press to enter Auto-Off menu when you see symbol. Press to select which means Auto-Off time is 180s. Press to confirm and return to menu.

  • Page 26: Using Scale - Key Functions

    USING SCALE – Key Functions WEIGHING Switch on the scale with the [ON/OFF] key. The diagnostic scale self-check is performed and then the software version is displayed. The scale is ready for weighing when the „0,00 kg” weight display is shown. Direction: The [→0←] key makes it possible to zero the scale if necessary and at any time.
  • Page 27 Step 3. Confirm the entered numerical value by press [ENTER] key to perform calculations of BMI value during weighing. (For MS2500 model, press [HOLD/BMI] key to confirm changes of height value), and the BMI index will be displayed on the LCD screen during weighing.)
  • Page 28 PRE-TARE When a tare weight (rubber mat, clothes, ...) is known, this value can be entered manually. If the PRE-TARE key is pressed shortly, the flashing display will be shown. The PRE-TARE function is active as long as the small arrow is pointing the ”PRE-TARE” symbol on the display. The value used as the last one will be displayed.

  • Page 29: Assemble With Hm201M

    ASSEMBLE WITH HM201M Fix two fixing block on the column. Fix height rod on the fixing block with two screws.

  • Page 30: Instruction For Charge And Connect

    INSTRUCTION FOR CHARGE AND CONNECT is displayed on the LCD, you should charge scale with exclusive adaptor for MS 2500 Located AC jack at the rear of indicator. CAUTION: Always connect the AC adaptor to the indicator before connecting to the mains power supply. Please disconnect the adaptor from main power supply before indicator.

  • Page 31: Replacing Battery And Charge

    REPLACING BATTERY AND CHARGE Replacing battery for operation Replacing rechargeable battery pack for operation [OPTION]...

  • Page 32: Error Message

    ERROR MESSAGE Low battery : This warning shows that the voltage of battery is too low to use. Please replace new battries or plug the AC adaptor for operation. Counting error( too low ): The loading is lower than limit when power on, please increase the loading and try again.

  • Page 33: Troubleshooting

    TROUBLESHOOTING Troubleshooting for defective modes: Original purchaser can enjoy the benefits under the effective Warranty against functional defects in material and workmanship subject to the terms and conditions listed in the yearly Warranty Program & Return Policy. Our warranty service program includes the following: 1.
  • Page 34 LCD showing “ERRL” after switch on - Load cell damaged Overload may cause the weigh to malfunction. Software system crash Resonator faulty Load cells with faulty grinding standard. Key buttons failure - Front key panel damaged or disconnected 3. Buzzer malfunction Wrong welding of PVC wire Key buttons &...
  • Page 35 Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412 ,Taiwan (R.O.C.) FDA no.: D051882 / 3007074192...

This manual is also suitable for:

Ms2501
