DMX Status: Output

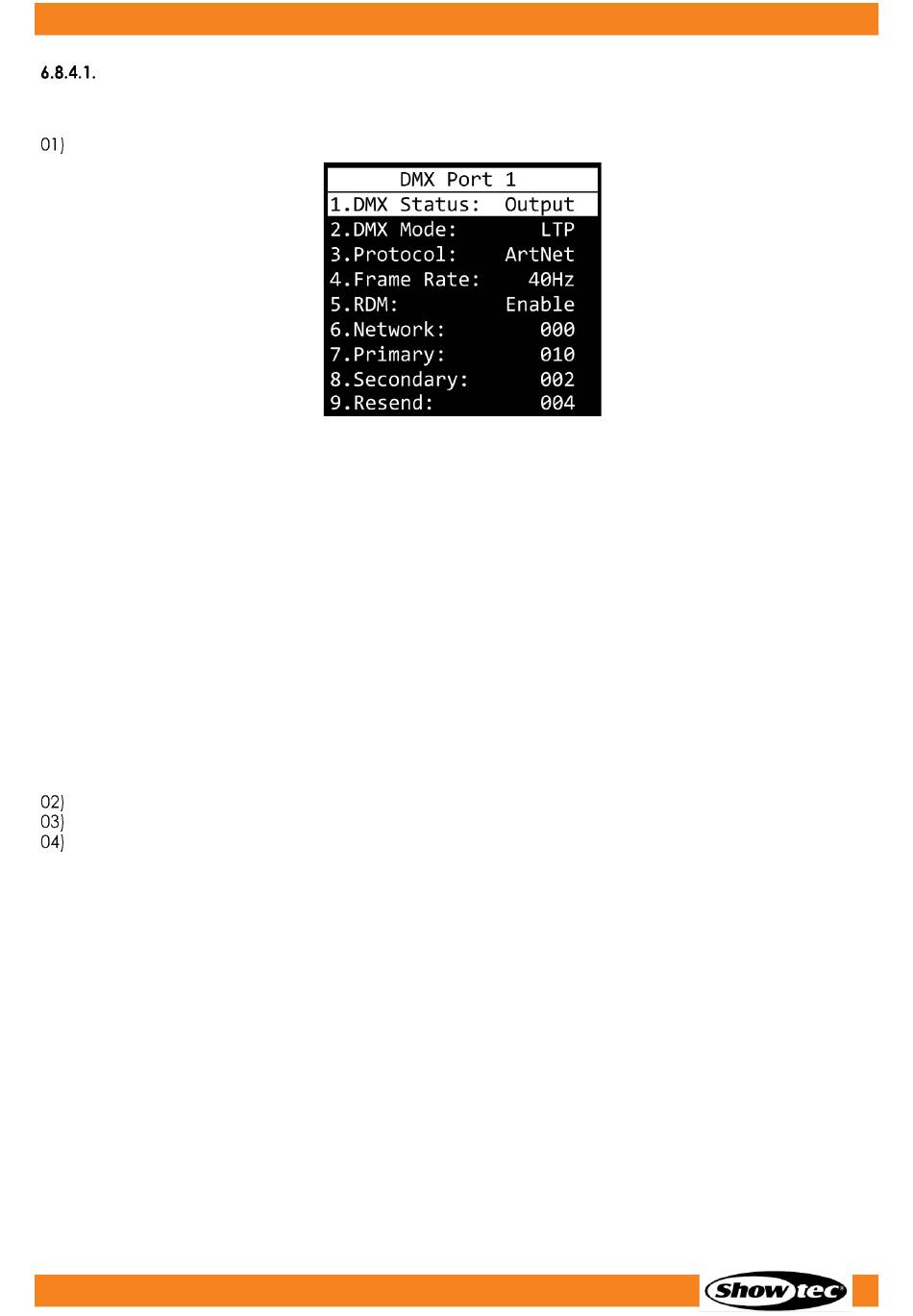

In this submenu, you can configure the DMX port settings.
Press the UP/DOWN buttons to select one the following 7 options:
● DMX Status:
● DMX Mode:
● Protocol:
● Frame Rate:
● RDM:
● Network:
● Primary:
Note:
Secondary and Resend settings are only available when the DMX mode is set to LTP or HTP.
● Secondary:
● Resend:
Press the ENTER button to confirm the selection.
Press the UP/DOWN buttons to select the required setting.
Press the ENTER button to confirm the selection.
Product code: 50818
Set the DMX status. The available options are Output, Input and Disable.
Set the DMX mode. The available options are Single, LTP and HTP.
Set the protocol. The available options are sACN or ArtNet.
Set the DMX data refresh rate. The available options are 10 Hz, 15 Hz, 20 Hz, 25 Hz,
30 Hz, 35 Hz and 40 Hz.
Set the RDM. The available options are Enable or Disable.
Set the ArtNet/sACN network number. The adjustment range is 0–255.
Set the primary ArtNet/sACN number. The adjustment range is 1–255.
Set the secondary Art-Net/sACN universe number. The adjustment range is 1–255.
Set the resend universe number. The adjustment range is 1–255. This setting
determines which universe to rebroadcast onto the network. This function is only
available when the network port is set between 0–127. For the 128–255 network
range, the resend function is disabled.
