Pneumatic pump for extrusion
Table of Contents

Advertisement

EN
OMEGA 10:1 EXT
TECHNICAL DATA
F
OMEGA
Pump pressure ratio
Air pressure range
Maximum fluid outlet pressure
Delivery per cycle
Delivery at 60 cycles per minute
Air inlet thread
Air consumptin at 60 cycles/min
CODE
DESCRIPTION
7457
OMEGA 10:1 extrusion pump
Always observe these instructions carefully
when evaluating the product compatibility and
in case of disposal of some parts of the pump no
more usable, in order to meet the environmental
regulations on recycling process.
8
Fluid outlet thread
10:1
Fluid inlet thread
3-8 bar / 40-120 psi
Pump tube material
80 bar / 1,200 psi
Piston material
530 cc
Seals material
32 l/m
3/4" BSPT (M)
Air motor piston diameter and stroke
3 bar 1,100 l/min
5 bar 1,800 l/min
7 bar 2,500 l/min
OMEGA
3/4" BSPP (F)
1 1/2" BSPP (F)
AISI 303 - Copper
AISI 420 B
PTFE + PE 1000
7" - 4 3/4"
180 mm - 120 mm

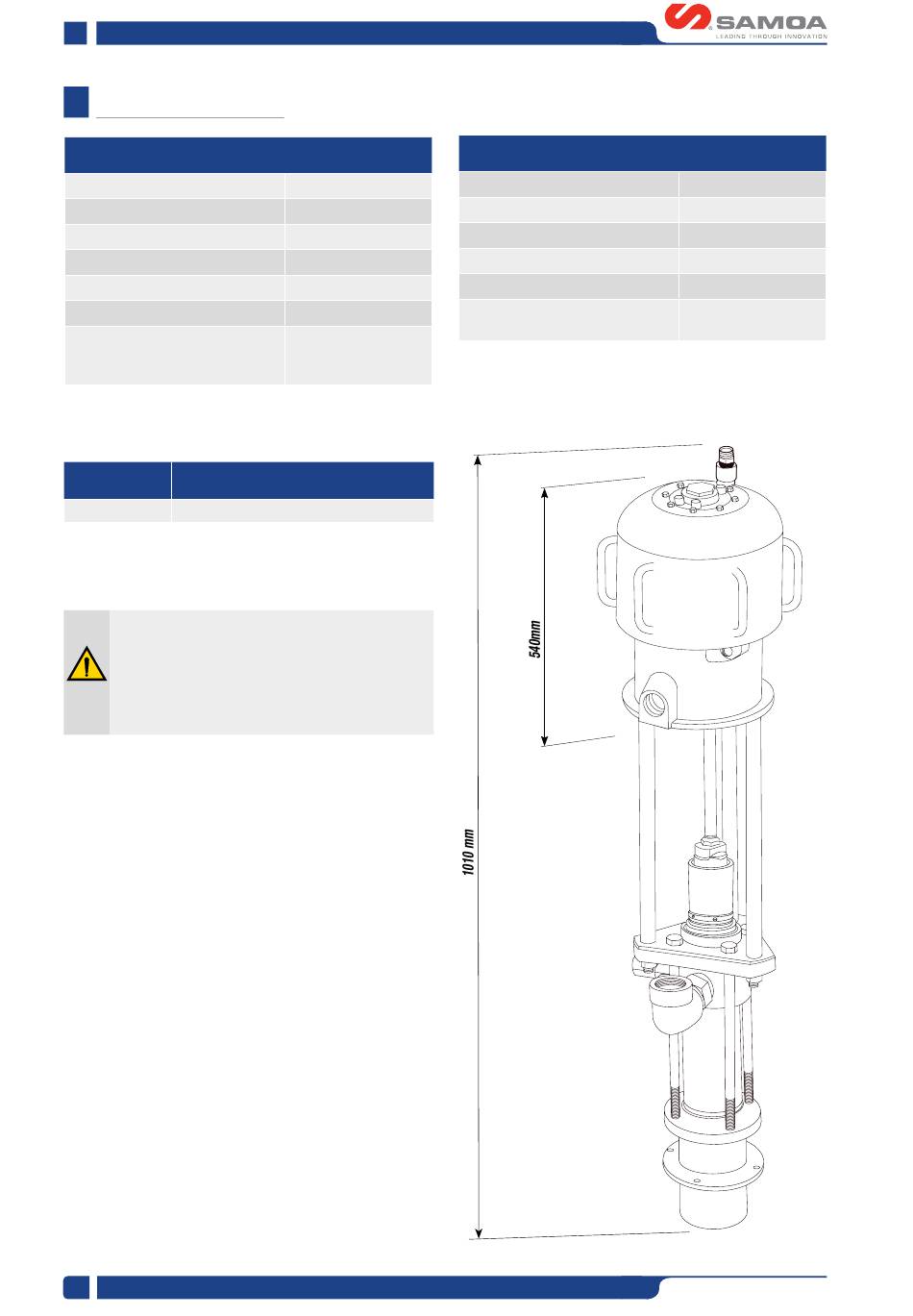

Fig. 1
ED. 02 - 02/2024 - Cod. 150210
