Samoa LARIUS VIKING Operating And Maintenance Manual

Elettric diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
VIKING
Elettric
diaphragm pump
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LARIUS VIKING and is the answer not in the manual?

Questions and answers

Related Manuals for Samoa LARIUS VIKING

Summary of Contents for Samoa LARIUS VIKING

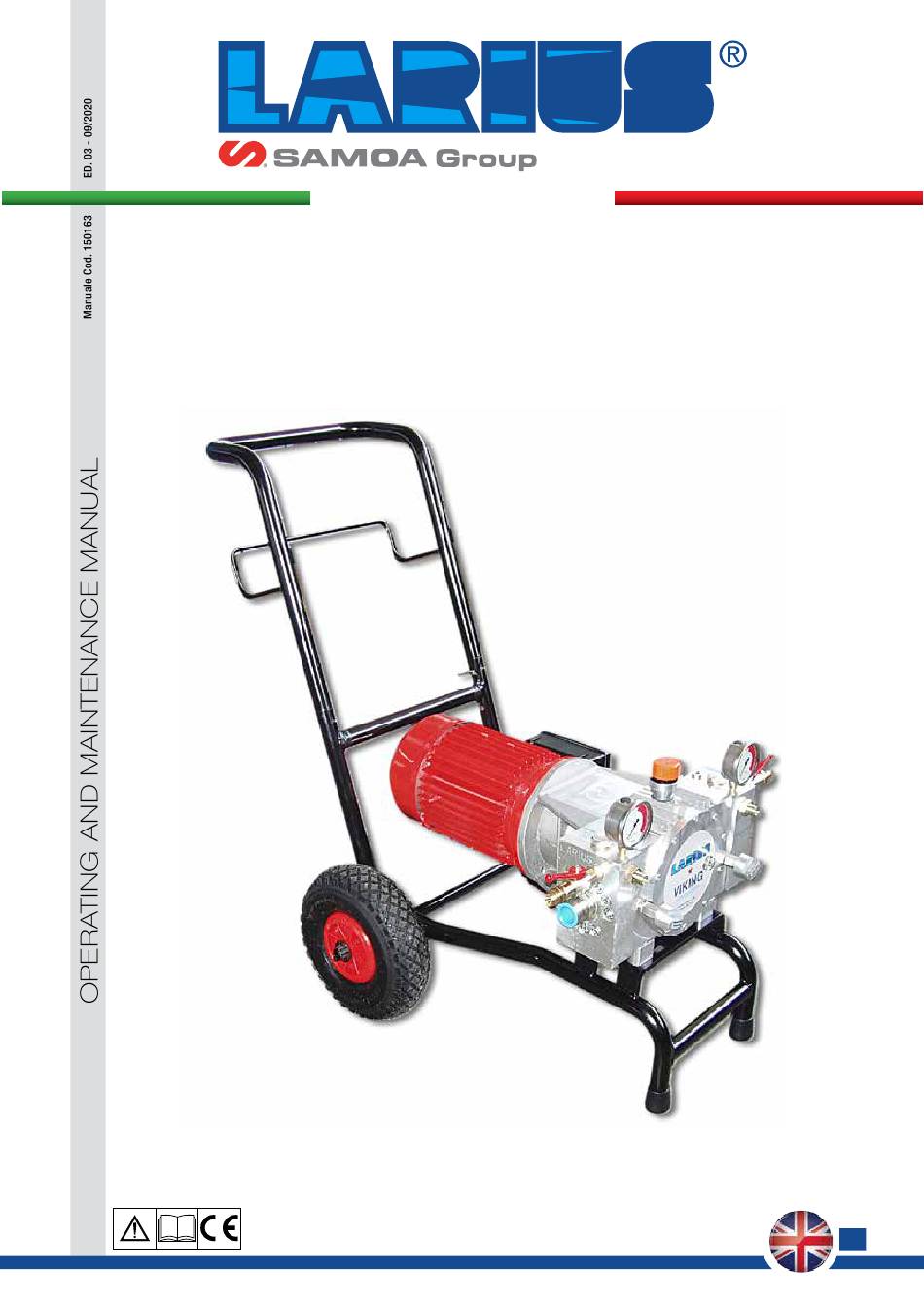

  • Page 1 w w w . l a r i u s . c o m VIKING Elettric diaphragm pump...
  • Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    VIKING VIKING Electric diaphragm pump INDEX WARNINGS ..................................2 WORKING PRINCIPLE ..............................3 TECHNICAL DATA ................................3 DESCRIPTION OF THE EQUIPMENT ..........................4 TRANSPORT AND UNPACKING ..........................5 CODITIONS OF GUARANTEE ............................5 SAFETY RULES ................................5 SETTING-UP ................................6 WORKING ..................................8 CLEANING AT THE END OF THE WORK ........................9 ROUTINE MAINTENANCE ............................10 WARNING PLATE ...............................10 PROBLEMS AND SOLUTIONS ..........................11...

  • Page 4: Awarnings

    VIKING WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 5: Bworking Principle

    VIKING WORKING PRINCIPLE The LARIUS VIKING unit is defined as an “electric diaphragm the pump outlet and sent to the guns through the flexible hose. pump”. An electric diaphragm pump is used for high pressure A hydraulic valve on the hydraulic case head allows setting and paint spraying without air (known as “airless”).

  • Page 6: Ddescription Of The Equipment

    VIKING DESCRIPTION OF THE EQUIPMENT Fig. 1D Pos. Description Pos. Description Carriage Complete colour body Electric motor Suction and recirculation tube High pressure manometer High pressure feed tube Setting valve LARIUS AT 300 gun Hydraulic oil filling cap Fast clean Hydraulic body Tools box www.larius.com...

  • Page 7: Etransport And Unpacking

    VIKING TRANSPORT AND SAFETY RULES UNPACKING Read carefully and entirely the following instructions before using the product. Please save these • The packed parts should be handled as indicated in the symbols instructions in a safe place. and markings on the outside of the packing. •...

  • Page 8: Hsetting-Up

    VIKING SETTING-UP FOR CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN BEFORE USING THE EQUIPMENT. • ALWAYS USE THE FLExIBLE HOSE SUPPLIED WITH STAN- CONNECTION OF THE FLEXIBLE HOSE TO THE GUN DARD KIT. • Connect the high pressure flexible hose push-button, to the •...
  • Page 9 VIKING • The supply cable is provided without plug. • Lift the suction pipe and dip it into the solvent tank. Use a plug which guarantees the plant earthing. Only a technician or a skilled person should perform the Ensure the gun (H4) is without nozzle. connection of the plug to the electric cable.

  • Page 10: Iworking

    VIKING PREPARATION OF THE PAINT • Point the gun at a container keeping the trigger pressed (so as to drain the oil inside) till a clean solvent comes out. Now, release the trigger. • Make sure the product is suitable to be used with a spray •...

  • Page 11: Jcleaning At The End Of The Work

    VIKING SPRAY ADJUSTMENT • Slowly turn clockwise the pressure control knob to reach the pressure value in order to ensure a good atomization of the product. • An irregular and marked spray on the sides indicates a low working pressure. On the contrary, a too high pressure causes a high fog (“overspray”) and waste of product.

  • Page 12: Kroutine Maintenance

    VIKING • As the pump starts idling, press the ON/OFF switch to stop REPLACING HYDRAULIC OIL the equipment. After operating for 100 hours, replace the oil in the pump; • In case of long storage, we recommend you to suck and •...

  • Page 13: Mproblems And Solutions

    VIKING PROBLEMS AND SOLUTIONS Problem Cause Solution The equipment does not start Lack of voltage; Check the correct connection to the power supply; Considerable drops in mains voltage; Check the extension cable; ON-OFF switch disconnected; Ensure the ON-OFF switch is on the “ON”...

  • Page 14: Ncorrect Procedure Of Decompression

    VIKING CORRECT PROCEDURE OF DECOMPRESSION Insert the gun clamp (N1). • • Move the ON/OFF switch (N2) to the OFF position (0) to stop the equipment. Fig. 1N • Disconnect the power supply cable (N3). Release the gun clamp (N4). Point the gun at the tank of the •...

  • Page 15: Osuction System

    VIKING SUCTION SYSTEMS Pos. Code Description 85009 Suction systems 85010 Suction tube 35003 Recirculation tube 18096 Spring 85012 Filter of suction www.larius.com ED. 03 - 09/2020 - Cod. 150163...

  • Page 16: Pcomplete Hydraulic Body

    VIKING COMPLETE HYDRAULIC BODY www.larius.com ED. 03 - 09/2020 - Cod. 150163...
  • Page 17 VIKING Pos. Code Description Pos. Code Description 18711/1 Hydraulic body 32021 Washer 12475 Filter assembly 32020 Elastic ring 32033 Piston insert 32019 Piston 33002/4 82005 Oil cup 33002/3 Spring 31128 High temperature 28x38x7 Corteco 33002/2 Oil distributor 9308 Screw M3x8 UNI 5931 33002/1 Diaphragm 18716...

  • Page 18: Qcomplete Colour Body

    VIKING COMPLETE COLOUR BODY www.larius.com ED. 03 - 09/2020 - Cod. 150163...
  • Page 19 VIKING Pos. Code Description Pos. Code Description 33000 Colour body 33015 Nipple 33001DX Right colour body casting 33012 1/4" copper washer 33001SX Left colour body casting 33013/3 O ring 33007 Ø16 copper washer 33013 Return tap 33006 High pressure hose fitting 33011 3/8"x1/4"...

  • Page 20: Rmotor

    VIKING MOTOR ELECTRIC MOTOR Pos. Code Description 81001 Electric motor 220V 50Hz 81002 Electric motor 380V 50Hz three-phase 81003 Electric motor 110V 60Hz 16071 Electic box 86001 Condenser 81012 Stud bolt 81033 Washer 95158 www.larius.com ED. 03 - 09/2020 - Cod. 150163...
  • Page 21 VIKING INTERNAL COMBUSTION SUPPLY MOTOR Pos. Code Description Pos. Code Description 4415 Petrol motor 31111 Plate 12478 Motor flange 31110 Crown gear 32004 Screw 31109 Bearing 31116 Motor pinion 31128 Corteco 31115 Washer 54003 Washer 69011 Screw 31106 Screw 4019 Screw 31107 Reduction box...

  • Page 22: Saccessories

    VIKING ACCESSORIES AT 300 GUN HIGH PRESSURE GAUGE MANUAL LX-T GUN Art. Description Art. Description Art. Description 11090 AT 300 1/4" 1147 High pressure gauge 14310 Nozzle 4 mm 11000 AT 300 M16x1,5 14311 Nozzle 6 mm 14312 Nozzle 8 mm FILTERS FILTERS PISTON GUNSTOCK FILTERS...
  • Page 23 VIKING HIGH PRESSURE HOSE 3/8" - ANTISTATIC HOSE 3/16" - M16X1,5 ANTIPULSATIONS 1/4" - M16X1,5 MAX M16X1,5 MAX PRESSURE 425 bAR MAX PRESSURE 210 bAR PRESSURE 250 bAR Art. Description Art. Description Art. Description 18063 7,5 mt 6164 5 mt 35013 5 mt 18064 10 mt 55050 7,5 mt...
  • Page 24 VIKING GUN EXTENSION Art. Description 30 cm 40 cm 60 cm 80 cm 100 cm PLA 16X1,5 + bASE PLA 1/4'' + bASE SUPER FAST-CLEAN SUPER FAST-CLEAN Art. Description Art. Description K11421 130 cm K11420 130 cm K11426 180 cm K11425 180 cm K11431...
  • Page 25 VIKING AIRLESS DIAPHRAGM PUMPS MIRO' Rif. 21500 GIOTTO Rif. 12450 DALI' Rif. 18900 www.larius.com ED. 03 - 09/2020 - Cod. 150163...

  • Page 27: Declaration Of Conformity

    VIKING CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: VIKING Electric diaphragm pump complies with the directives: - EC Directive 2006/42 Machinery Directive - EU Directive 2014/30 Electromagnetic Compatibility (EMC) - EU Directive 2014/35 Low Voltage (LVD)
  • Page 28 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
