Samoa OMEGA 10:1 EXT Instruction Manual page 14

EN
OMEGA 10:1 EXT

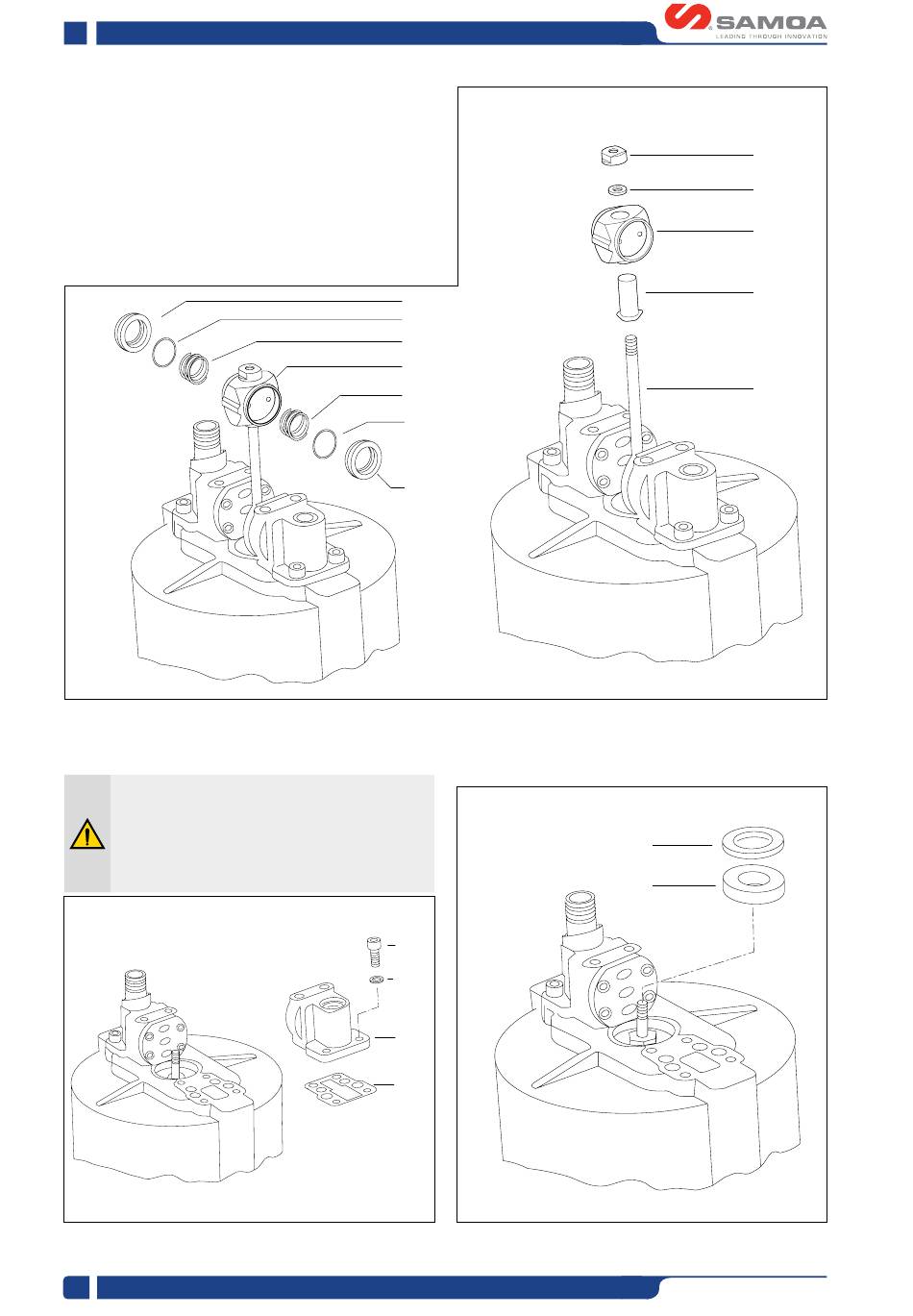

• Pull upwards the seat (17) so as to take out the valves (18),
the O-rings (19) and the springs (20) (clean and/or replace
the worn parts).
• Unscrew the lock nut (21) [take care of the washer (22)] by
keeping the bush (23) blocked using a wrench.
• Remove the seat (24) from the rod (17).
• Unscrew the bush (23) (if necessary, keep the rod (24) blocked
on the threaded part using pliers with the bits wrapped in
rags to avoid damage to thread).
Fig. 2
• Remove the screws (25) [take care to the washers (26)], a
manifold (27) and the gasket (28).
Handle with care the manifold. The edges of its
plate are very sharp.
Important: do not remove the other manifold if
not necessary (it will facilitate the fastening of
the manifold removed).
Fig. 3
14
18
19
20
17
20
19
18
• Using a screwdriver, remove the washer (29) and the rubber
pad (30).
25
26
27
28
Fig. 4
21
22
17
23
24
29
30
ED. 02 - 02/2024 - Cod. 150210
