Samoa Larius Miro Operating And Maintenance Manual

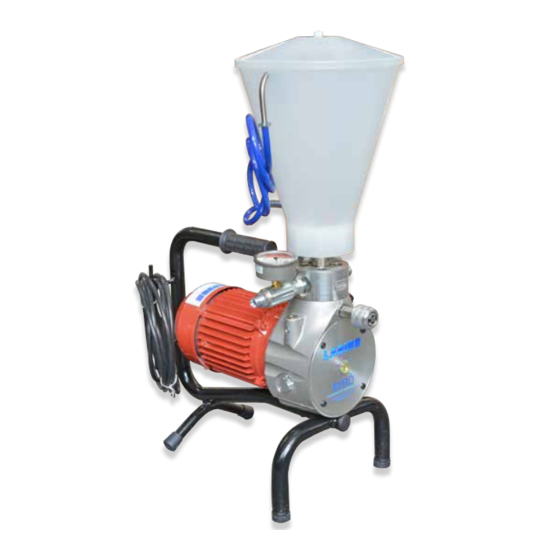

Electric diaphragm pump for sanitation
Hide thumbs Also See for Larius Miro:
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
Miro'
Electric diaphragm pump
for sanitation
Mirò Vertical suction 220 V Code: KSE9080
Mirò Vertical suction 110 V Code: KSE9081
Mirò Vertical suction 220 V with trolley Code: KSE9082
Mirò Vertical suction 110 Vwith trolley Code: KSE9083
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Larius Miro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samoa Larius Miro

Summary of Contents for Samoa Larius Miro

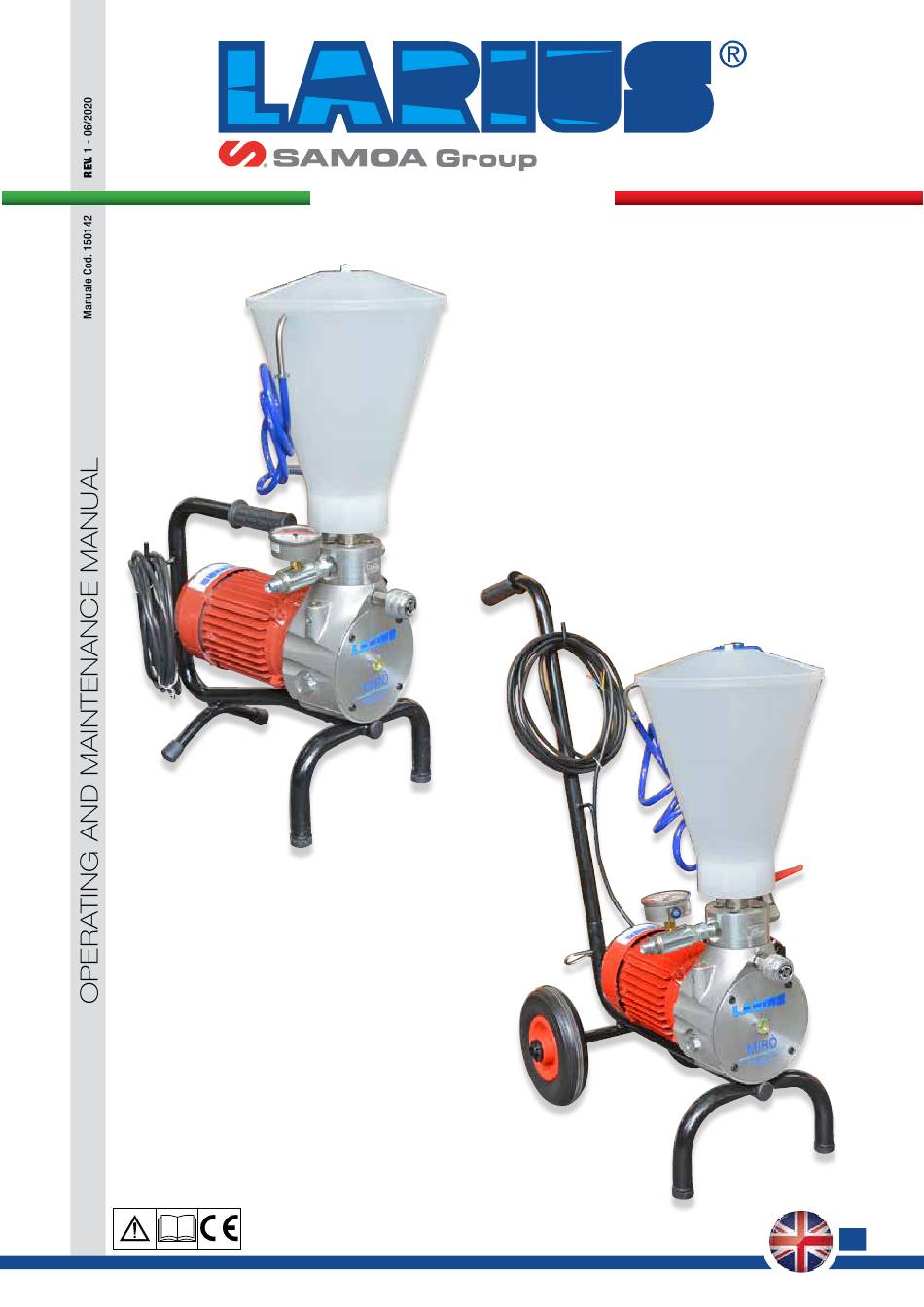

  • Page 1 w w w . l a r i u s . c o m Miro' Electric diaphragm pump for sanitation Mirò Vertical suction 220 V Code: KSE9080 Mirò Vertical suction 110 V Code: KSE9081 Mirò Vertical suction 220 V with trolley Code: KSE9082 Mirò...
  • Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
  • Page 3 Miro' for sanitation Miro' Electric diaphragm pump for sanitation INDEX AVVERTENZE ................................. p. 2 UTILIZZO ................................p. 3 PRINCIPIO DI FUNZIONAMENTO.......................... p. 4 DATI TECNICI ................................. p. 5 DESCRIZIONE DELL’APPARECCHIATURA......................p. 6 TRASPORTO E DISIMBALLAGGIO ........................p. 8 CONDIZIONI DI GARANZIA ........................... p. 8 NORME DI SICUREZZA ............................
  • Page 4 Miro' for sanitation WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...
  • Page 5 Miro' for sanitation SANITIZING FLUID APPLICATIONS ON: SANITIZING PRODUCTS SPRAYING EQUIPMENT • Office buildings, public bodies The spraying of liquids under high pressure allows you covering • Industrial sheds, factories, logistics centers large surfaces with sanitizing agents, thus reducing the •...

  • Page 6: Working Principle

    Miro' for sanitation WORKING PRINCIPLE The LARIUS MIRÒ unit for sanitation is defined as an “electric The product is sucked up, pushed towards the pump outlet and diaphragm pump”. An electric diaphragm pump is used for high sent to the guns through the flexible hose . A hydraulic valve on pressure paint spraying without air (known as “airless”).

  • Page 7: Technical Data

    Miro' for sanitation TECHNICAL DATA Carrello Telaio MOTOR POWER 0,75 kW 0,75 kW 220 VAC 220 VAC VOLTAGES AVAILABLE 110 VAC 110 VAC MAX. WORKING PRESSURE 220 bar 220 bar MAX. DELIVERY 2,2 L/min 2,2 L/min WEIGHT 23 Kg 20 Kg LENGTH (A) 400 mm (A) 440 mm...

  • Page 8: Description Of The Equipment

    Miro' for sanitation DESCRIPTION OF THE EQUIPMENT MIRO' FOR SANITATION VERTICAL SUCTIONA ON TROLLEY Fig. 1E Pos. Description Pos. Description Carriage Hydraulic body High pressure manometer Colour body Electric / combustion motor Recirculation tube Setting valve Circulation tap Hydraulic oil filling cap Tank www.larius.com REV.
  • Page 9 Miro' for sanitation MIRO' FOR SANITATION VERTICAL SUCTION Fig. 2E Pos. Description Pos. Description Electric / combustion motor Colour body High pressure manometer Tank Setting valve Circulation tap Hydraulic oil filling cap Recirculation tube Hydraulic body Feed tube connection www.larius.com REV.

  • Page 10: Transport And Unpacking

    Miro' for sanitation TRANSPORT AND UNPACKING Each LARIUS sanitizing sprayer is supported by a 90-day warranty for the replacement of only • The packed parts should be handled as indicated in the the components. symbols and markings on the outside of the packing. No return.

  • Page 11: Check On Power Supply

    Miro' for sanitation • Disconnect the equipment before storing it and before perfor- REPLACE THE PARTS DAMAGED OR WORN. ming any maintenance operation or replacing of accessories. • TIGHTEN AND CHECK ALL THE FITTINGS FOR CONNEC- • Do not carry the equipment neither unplug it by pulling the TION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN electric cable.

  • Page 12: Washing Of The New Equipment

    Miro' for sanitation Place the pressure control knob (I4) on the “MIN” position • The supply cable (I2) is provided without plug. • Use a plug which guarantees the plant earthing. (turn counterclockwise). Only a technician or a skilled person should perform the connection of the plug to the electric cable.
  • Page 13 Miro' for sanitation • Open the re-circulation tap (I7). • Point the gun at a container (I8) keeping the trigger pressed (so as to drain the oil inside) till a clean liquid comes out. Now, release the trigger. Aperto Fig. 7I •...

  • Page 14: Preparation Of The Paint

    Miro' for sanitation PREPARATION OF THE PAINT • Turn the switch (J3) to ON of the device. • Make sure the product is suitable to be used with a spray gun. • Mix and filter the product before using it. For filtration, use CLOSE-MESH (ref.214) and LARGE-MESH (ref.215) LARIUS METEX braids.

  • Page 15: Spray Adjustment

    Miro' for sanitation • Make sure the product recycles from the return tube (J4). CLEANING AT THE END WORK • Fill the tank (K5) with the cleaning liquid. Fig. 4J • Close the re-circulation tap (J2). Fig. 1K • Ensure the gun (K2) is without nozzle. Closed Fig.5J •...
  • Page 16 Miro' for sanitation Turn the unit ON-OFF switch (I3) on the "ON" position (I). • Fig. 6K • Empty the tank. • Point the gun at this point into a bucket and press the trigger to empty the pump. • As soon as the pump starts to run idle, turn the switch (K4) to OFF (0) to switch off the device.

  • Page 17: Routine Maintenance

    Miro' for sanitation CLEANING THE COMPRESSION VALVE ROUTINE MAINTENANCE If the machine has problems with sucking up the liquid, disassemble TOP UP HYDRAULIC OIL the compression valve (L3), and clean it with specific liquids that With each start up, check the hydraulic oil level by looking through are specifically for the type of paint being used.
  • Page 18 Miro' for sanitation Check that the ball seals in its seating as follows: • Turn the valve (L3) upside down; Fig.8L Fig. 6L • If the liquid flows out the holes at the bottom within a few • Put cleaning liquid into the groove in the ball’s seating; minutes, replace this valve with a new one;...

  • Page 19: Replacing Hydraulic Oil

    Miro' for sanitation REPLACING HYDRAULIC OIL Dopo le prime 100 ore di funzionamento sostituire l’olio della Filter pompa: • Scaricare l’olio esausto attraverso il tappo (L4) posto sul fondo del corpo pompa. • Pulire ed eventualmente sostituire le tenute usurate del tappo. •...
  • Page 20 Miro' for sanitation CLEANING THE MOTOR COOLING FAN GUARD Clean the motor cooling fan protection guard (L6) and the finned motor casing periodically to ensure the maximum cooling. Fig.15L WARNING PLATE ® ® Apparecchi per verniciatura Paint spraying units ATTENZIONE WARNING UTILIZZARE GRUPPI ELETTROGENI USE POWER UNITS WITH...

  • Page 21: Problems And Solutions

    Miro' for sanitation PROBLEMS AND SOLUTIONS Inconveniente Causa Soluzione The equipment does not start Lack of voltage; Check the correct connection to the power supply; Considerable drops in mains voltage; Check the extension cable; ON-OFF switch disconnected; Ensure the ON-OFF switch is on the “ON”...
  • Page 22 Miro' for sanitation CORRECT PROCEDURE OF • Disconnect the power supply cable (O4). DECOMPRESSION • Insert the gun clamp (O1). Clamp inserted Fig.4N • Release the gun clamp (O1). Point the gun at the tank of the Clamp released product and press the trigger to release pressure. At the end of the operation, insert the gun clamp.

  • Page 23: Spare Parts

    Miro' for sanitation SPARE PARTS Vertical suction system page 26 Trolley assembly Complete colour body pages 30-31 page 24 Complete hydraulic body page 22 Complete petrol engine casing page 32 Vertical suction system page 26 Complete colour body page 24 Complete hydraulic body page 2 www.larius.com...
  • Page 24 Miro' for sanitation COMPLETE HYDRAULIC BODY Rif. 21515 WARNING: Always indicate code and quantity for each part required. www.larius.com REV. 1 - 06/2020 - Cod. 150142...
  • Page 25 Miro' for sanitation Pos. Code Description Q. ty Pos. Code Description Q. ty 21520 Electric motor 240V-50Hz 20F 32015/2 Elastic ring 21521 Electric motor 120V-60Hz 20G 32015/3 51006 Switch 32016 Setting catch 21522 Condenser 440V - 16µf 32017/2 Spring 21523 Condenser 440V - 32µf 20L 32017/1 Knob...
  • Page 26 Miro' for sanitation COMPLETE COLOUR BODY WARNING: Always indicate code and quantity for each part required. www.larius.com REV. 1 - 06/2020 - Cod. 150142...
  • Page 27 Miro' for sanitation Pos. Code Description Q. ty Pos. Code Description Q. ty 33010 Washer 21620 Gravity model assembly 53006 Spring 21625 Suction model assembly 33029 Spring housing 21635 Colour body 33028 Ball 95284 Union 21637 Valve casing 53001 Membrane spacer 33027 Sphere seat 33011...
  • Page 28 Miro' for sanitation SISTEMA DI ASPIRAZIONE VERTICALE ATTENZIONE : per ogni particolare richiesto indicare sempre il codice e la quantità. Pos. Code Description Q. ty Pos. Code Description Q. ty 35101 Tank assembly 35007 Large filter 35103 Tank 55000 Cover 35006 Close filter 18569...

  • Page 29: Trolley Assembly

    Miro' for sanitation TROLLEY ASSEMBLY WARNING: Always indicate code and quantity for each part required. WHEELED CARRIAGE ASSEMBLY Pos. Code Description Q. ty 21680 Complete assembly 12454 Vibration damper 21652 Threaded cap 69014 Screw 21681 Carriage 91047 Stop washer 21682 Pneumatic wheel 21683 Split pin...

  • Page 30: Suction System

    Miro' for sanitation ACCESSORIES SUCTioN SYSTEM SE9040 3350/1 SE9041 Code SE9040 Suction tube for 30 lt drums Code 3350/1 Suction tube for 200 lt drums Code SE9041 Suction tube for 1000 lt drums FiLTErS MESH Code 85014 FILTER 40 MESH Code 85012 FILTER 20 MESH Code 37215...
  • Page 31 Miro' for sanitation AT250 AirLESS GUN for sanitation High pressure spraying gun, max 250 bars. It includes the spraying nozzle and the 1/4” swivel fitting to connect to the tube. Code SE9050 Connection BSPP 1/4’’ Nozzle SFC 13-60 Code SE9050/1 Connection BSPP 1/4’’ Nozzle TSC 90-40 AT250 PiSToN GUNSToCK FiLTErS Code 11039 Green (30M)
  • Page 32 Miro' for sanitation SUPEr FAST-CLEAN NoZZLE *Cod. Filter Ø inch Ø mm nozzle-angle recom. SFC07-20 0,007’’ 0,18 SFC07-40 200 M SFC09-20 0,009’’ 0,23 SFC09-40 SFC11-20 0,011’’ 0,28 SFC11-40 SFC13-20 SFC NOZZLE SUPER SFC13-40 0,013’’ 0,33 FAST-CLEAN SFC13-60 Yellow (see table) SFC15-20 100 M SFC15-40...
  • Page 34 Miro' for sanitation PUMP FOR SANITATION Giotto Cod. SE9020 220V Cod. SE9021 110V Giotto with gravity hopper da 50 Lt. Cod. SE9022 220V Cod. SE9023 110V DALÌ Cod. SE9030 with hose reel 50 Lt. Cod. SE9031 with hose reel 30 Lt. Cod.
  • Page 35 Miro' for sanitation GHIBLI Cod. SE9000 ZEUS Cod. SE9010 110V Cod. SE9011 220V Cod. SE9012 petrol www.larius.com REV. 1 - 06/2020 - Cod. 150142...

  • Page 37: Ce Declaration Of Conformity

    Miro' for sanitation CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: MIRO' Electric diaphragm pump for sanitation complies with the directives: - EC Directive 2006/42 Machinery Directive - EU Directive 2014/30 Electromagnetic Compatibility (EMC)
  • Page 38 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
