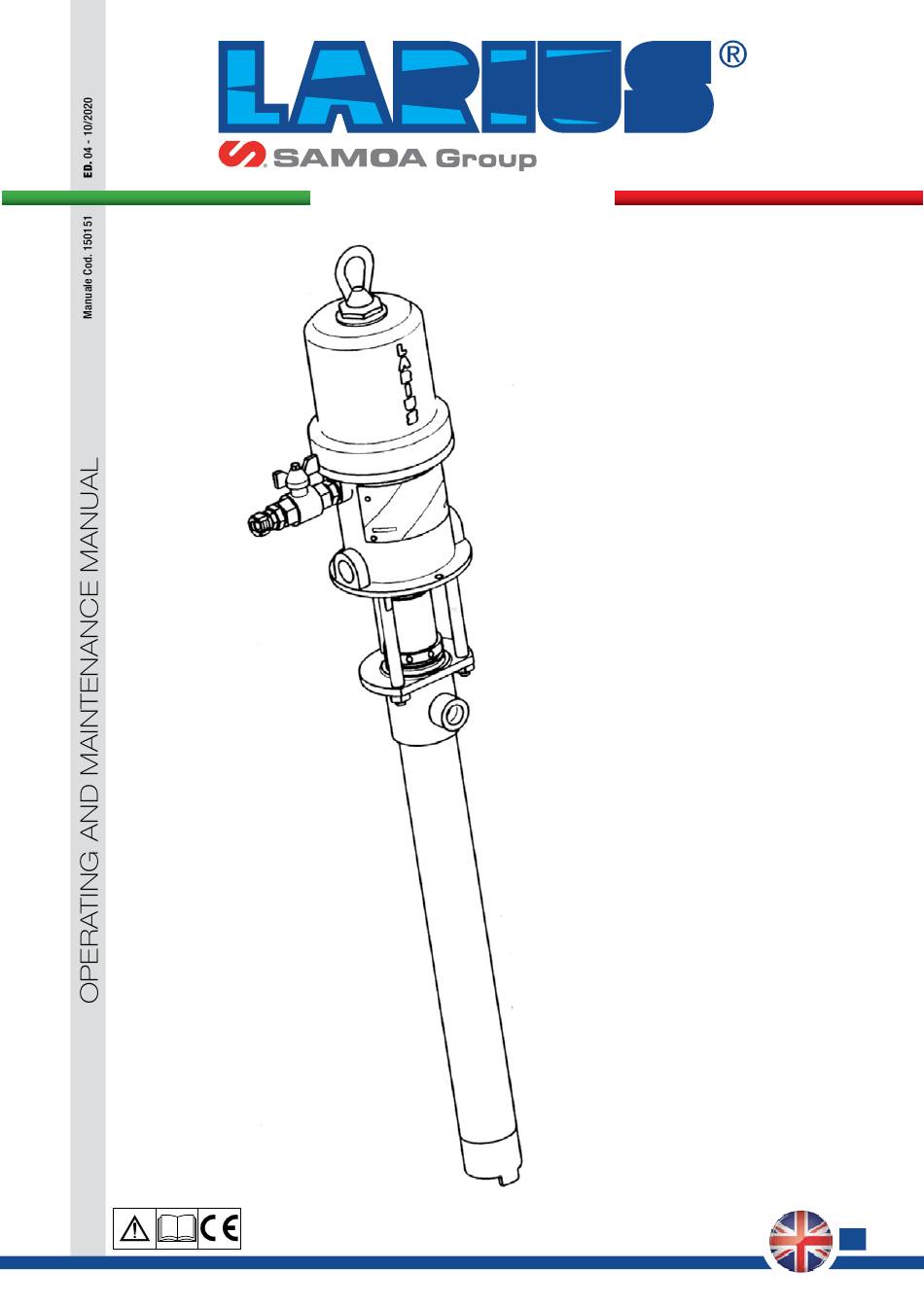

  • Page 1 w w w . l a r i u s . c o m VEGA 5:1 Pneumatic pump...
  • Page 2 VEGA 5:1 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    VEGA 5:1 VEGA 5:1 Pneumatic pump INDEx WARNINGS ................................p. 5 WORKING pRINCIpLE ............................p. 6 TECHNICAL DATA ..............................p. 6 DESCRIpTION OF THE EQUIpMENT ........................p. 8 TRANSpORT AND UNpACKING ..........................p. 9 SAFETY RULES ..............................p. 9 CONDITIONS OF GUARANTEE ..........................p. 9 ExAMpLES OF USE ..............................

  • Page 5: Warnings

    VEGA 5:1 WarNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 6: Bworking Principle

    VEGA 5:1 WorKING PrINcIPlE The pump VEGA 5:1 is a pneumatic pump for the transfer of transmitted through a connecting rod to the material pumping liquids at low pressure. The Vega pump is essentially comprised piston. This allows for the material to be aspirated and pushed of an air motor and a structure known as the “Material Pumping towards the outlet.
  • Page 7 VEGA 5:1 M 36x2 Short Version L/MIN L/MIN PUMP DELIVERY 7 bar (100 psi) 5 bar (70 psi) 3 bar (40 psi) Black curve: pressure release material The pump operates continuously when the flow rate is in the Gray curve: air consumption white area.

  • Page 8: Ddescription Of The Equipment

    VEGA 5:1 DEScrIPTIoN of ThE EQUIPmENT Fig. 1D Pos. Description Pos. Description Pump air feet inlet Fluid outlet Opening/Closing valve for air passage Fluid pumping tube Eyebolt to fasten the pump for transport Fluid inlet Pneumatic motor www.larius.com ED. 04 - 10/2020 - Cod. 150151...

  • Page 9: Etransport And Unpacking

    VEGA 5:1 TraNSPorT aND SafETy rUlES UNPacKING read carefully and entirely the following instructions before using the product. Please save these • The packed parts should be handled as indicated in the symbols instructions in a safe place. and markings on the outside of the packing. •...

  • Page 10: Examples Of Use

    VEGA 5:1 EXamPlES of USE FOR CONNECTION BETWEEN pUMp, FLExIBLE HOSE AND SpRAY GUN BEFORE USING THE EQUIpMENT. • ALWAYS USE THE FLExIBLE HOSE SUPPLIED WITH STAN- VEGa 5:1 pump can be used in different ways according to the DARD KIT. model and conditions of use.

  • Page 11: Isetting-Up

    VEGA 5:1 SETTING-UP VEGa 5:1 pump short version, with suction threaded valve fixed on wall support and with flexible suction hose. coNNEcTIoN To ThE fEED aIr For pump feed use a hose with an internal diameter no lower than 8 mm. Install at the pump inlet of the pump an air pressure regulator (it is suggested complete with conden- sate filter and lubricator).

  • Page 12: Kcleaning At The End Of The Work

    VEGA 5:1 clEaNING aT ThE END of ThE WorK By "cleaning at the end of the work" is meant the cleaning to carry out in case of use with a different product or if a long period of storage is foreseen. •...

  • Page 13: Problems And Solution

    VEGA 5:1 ProBlEmS aND SolUTIoN Problem Cause Solution The pump does not start Feed air not sufficient; Check on the air supply line. Increase the diameter of the feed hose; Outlet product line clogged; Clean. Disconnect the outlet hose of the product, feed the pump at the minimum pressure and verify if the pump starts without the outlet hose.

  • Page 14: Nmanual Reset Of The Pneumatic Motor

    VEGA 5:1 maNUal rESET of ThE PNEUmaTIc moTor • The feed air pressure of the pump must never be higher than the maximum value indicated in the technical data. Exceed this value can block the valves of the pneumatic motor in the intermediate position (Dead Center).

  • Page 15: Pdisassembly Of The Suction Valve

    VEGA 5:1 • Check the condition of each part of the motor. • For any eventual replacement of the screws (7) of the crosspiece (8), for their reassembly and correct adjustment see the drawing below and the exploded view. Washer Gasket Bush Gasket...

  • Page 16: Qreplacement Of The Lower Gaskets

    VEGA 5:1 rEPlacEmENT of ThE loWEr GaSKETS close the air supply to the pump and release the residual pressure in the plant. • Unscrew and extract the fluid cylinder (8). • Hold the bush (1) with a wrench and with the other wrench unscrew the fitting (7). •...

  • Page 17: Rreplacement Of The Upper Gaskets

    VEGA 5:1 rEPlacEmENT of ThE UPPEr GaSKETS close the air supply to the pump and release the residual pressure in the plant. • Unscrew and extract the fluid cylinder (1). • Unscrew the three nuts (2). • Remove the splint pin (3) and unscrewn the piston rod from the pneumatic motor. Disconnect the pumping group from the pneumatic motor.

  • Page 18: S Exploded View Pneumatic Motor

    VEGA 5:1 EXPloDED VIEW of PNEUmaTIc moTor WarNING: Always indicate code and quantity for each part required. Fig. 1S www.larius.com ED. 04 - 10/2020 - Cod. 150151...
  • Page 19 VEGA 5:1 Pos. Code Description Q.ty Pos. Code Description Q.ty 91369 Complete motor 96027 Complete valve screw 96703 Plug with eyebolt 32010 Washer 95075 O-Ring 91043 Piston Rod 91028 Motorcylinder 96017 Complete bush 96005 Roller 91037 O-Ring 96006 Spring 91038 O-Ring 96007 Fork...

  • Page 20: T Exploded View Pumping Standard Group

    VEGA 5:1 EXPloDED VIEW of PUmPING STaNDarD GroUP WarNING: Always indicate code and quantity for each part required. Fig. 1T www.larius.com ED. 04 - 10/2020 - Cod. 150151...
  • Page 21 VEGA 5:1 Pos. Code Description Q.ty Pos. Code Description Q.ty 96674 Long complete pumping element 96671 Long tie rod 96676 Medium complete pumping element 96673 Medium tie rod 96675 Short complete pumping element 96672 Short tie rod 96073 O-Ring 81010 M12 Nut 96670 91334...

  • Page 22: U Exploded View Stainless Steel Pumping Group

    VEGA 5:1 EXPloDED VIEW of STaINlESS STEEl PUmPING GroUP WarNING: Always indicate code and quantity for each part required. Fig. 1U www.larius.com ED. 04 - 10/2020 - Cod. 150151...
  • Page 23 VEGA 5:1 Pos. Code Description Q.ty Pos. Code Description Q.ty 98050 Long complete pumping element 98060 Long tie rod 98052 Medium complete pumping element 98062 Medium tie rod 98051 Short complete pumping element 98061 Short tie rod 96073 O-Ring 3806 M12 Nut 96670 98005...

  • Page 24: Accessories

    VEGA 5:1 accESSorIES WarNING: Always indicate code and quantity for each part required. AT 250 AT 300 L91X Code Description Code Description Code Description 11250 AT 250 1/4" 11000 AT 300 1/4" 11180 L91X 1/4" 11200 AT 250 M16x1,5 11090 AT 300 M16x1,5 11120 L91X M16x1,5...
  • Page 25 VEGA 5:1 faST-clEaN NOzzLE CODE 07-20 19-60 29-80 07-40 21-20 31-40 09-20 21-40 31-60 09-40 21-60 31-80 11-20 23-20 33-40 11-40 23-40 33-60 13-20 23-60 33-80 13-40 25-20 39-40 13-60 25-40 39-60 15-20 25-60 39-80 15-40 27-20 43-40 15-60 27-40 43-60 17-20 27-60...
  • Page 26 VEGA 5:1 GUN EXTENSION GUN EXTENSION Code Description Code Description 30 cm 60 cm 40 cm 100 cm ANTISTATIC HOSE 3/16" - M16X1,5 ANTIPULSE HOSE 3/8" - M16X1,5 HIGH PRESSURE HOSE 3/8" - M16X1,5 Code Description Code Description Code Description 6164 5 mt 35013 5 mt...
  • Page 27 VEGA 5:1 CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: VEGA 5:1 Pneumatic pump complies with the directives: - EC Directive 2006/42 Machinery Directive furthermore to the...
  • Page 28 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
