Technical Support and E-Warranty Certificate
www.vevor.com/support

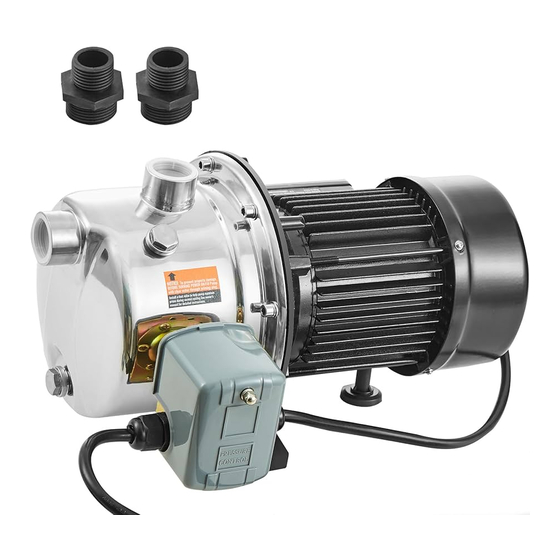

SPRINKLER PUMP
OPERATING INSTRUCTIONS
MODEL:ZX11003/ZX11004/ZX11007
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR ZX11003
Summary of Contents for VEVOR ZX11003
- Page 1 SPRINKLER PUMP OPERATING INSTRUCTIONS MODEL:ZX11003/ZX11004/ZX11007 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety Warnings
Warning-To reduce the risk of injury, user must read instructions manual carefully. SAFETY WARNINGS WARNING Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL. Before start-up, note the following: The plug must have a supply voltage of AC115V 60 Hz. CAUTION This pump has been evaluated for use with water only. -
Page 4: Specifications
SPECIFICATIONS Optimum Nominal Rated Power Max Flow Max lift Model Operating Voltage (HP) (GPM) (FT) temperature AC115V ZX11003 18.5 147.6 60Hz AC115V 32-95° F ZX11004 0.75 18.5 ( 0℃-35℃ ) 60Hz AC115V ZX11007 17.6 60Hz... -
Page 5: Installation
INSTALLATION The pump must be installed in a stationary position with either: a. A fixed pipeline or b. A flexible hose pipe. Please note! 1. Do not install the pump by suspending it unsupported from its delivery pipe or power cord. The pump must be suspended from the handle or be placed on the bottom of the basin. -
Page 6: Installation Instructions
Mount the Pump as close to the source of water as possible and within the range of the rated Suction Lift. The connections must be airtight. Wrap all threaded connections with PTFE tape (sold separately). Pump Components(Model:ZX11003/ZX11004) (Please refer to the physical object.) - 5 -... - Page 7 Pump Components(Model:ZX11007) (Please refer to the physical object.) 4. Remove the Inlet and Outlet Covers from the Pump. 5. Attach the water source to the Inlet, using appropriate methods. The Inlet hose or pipe must be collapsepro of to properly withstand the suction force. 6.
- Page 8 7. Attach the outlet connection to the Outlet. A Y-fitting with dual valves (sold separately) is helpful for priming the pump (see Figure B). Note: A foot valve on the inlet connection is critical to help prevent the pump from losing prime.
-
Page 9: Operation
OPERATION After reading these instructions, consider the following points before starting the pump: 1. Verify that the discharge pipe is properly connected. 2. Verify that the electrical connection is AC115V, 60 Hz. 3. Verify that the electrical socket is GFCI protected and in good condition. Test GFCI protected outlet before use. -
Page 10: Quarterly Maintenance
MAINTENANCE WARNING TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unplug the Pump from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. If the pump is moved during operation, flush it out with clean water after every use. QUARTERLY MAINTENANCE The below maintenance must be performed at least once every 3 months under optimal conditions. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTIONS Pump runs, but 1. When starting, the water 1. There must be at least 0" will not deliver height falls below the deep water for the Pump to any water. minimum water level (0") operate properly. - Page 12 make sure circuit is right capacity for tool and circuit has no other loads. 6. Have fuse replaced by a qualified service technician. 7. Have serviced by a qualified service technician. Pump does not 1. Corroded pipes. 1. Replace pipes. deliver water at 2.
- Page 13 PARTS LIST AND DIAGRAM PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE...
-
Page 14: Parts List
PARTS LIST MODEL:ZX11003/ZX11004/ZX11007 Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. - 13 -... - Page 15 MODEL:ZX11007 MODEL:ZX11003/ZX11004 Made In China - 14 -...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
