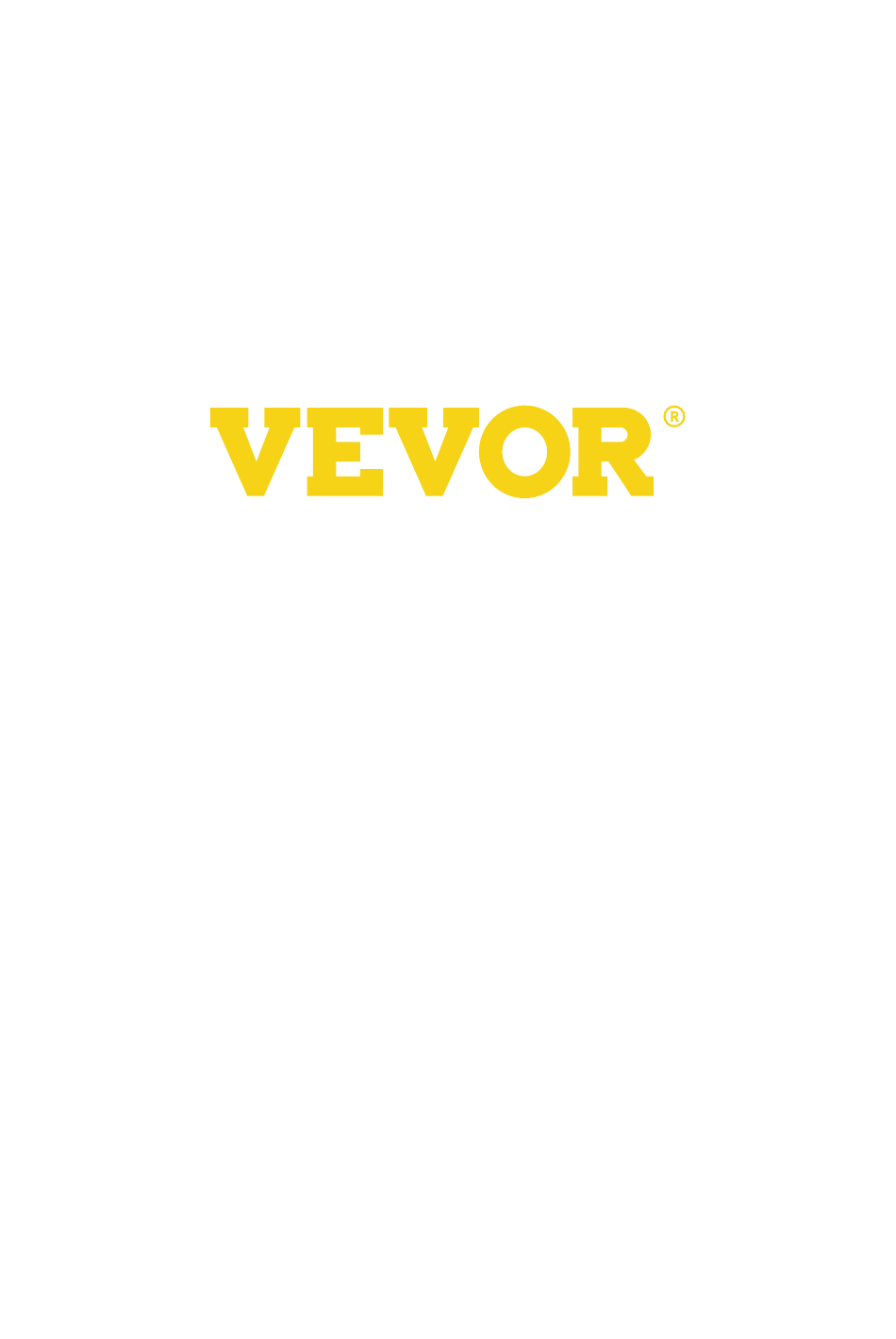

- Page 1 DUAL SPEED POOL PUMP USER MANUAL...
- Page 2 VVPS215BUS(1.5THP 230V) VVPS220BUS(2.0THP 230V) Instruction Manual NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: CustomerService@vevor.com IMPORTANT : Be sure to review the contents of this manual before attempting to operate the equipment.
-
Page 3: Main Parts
MAIN PARTS PARTS 1.Lid 6.Diffuser O-Ring 2.O-Ring 7.Diffuser 11.Screw 3.Strainer 8.Impeller 12.Motor 4.Strainer body 9.Pump Casing O-Ring 13.Carrier 5.Drain Plug 10.Pump Housing 14.Shaft Seal INSTALLATION READ CAREFULLY AND SAVE THIS INSTRUCTION MANUAL ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END-USER OF THIS PRODUCT. - Page 4 The following information is very important for safety in handling this product. Be sure to observe it. Indicates an imminently hazardous situation that, if not avoided, will result DANGER in death or serious injury. Indicates a potentially hazardous situation that, if not avoided, could WARNING result in death or serious injury.
- Page 5 CAUTION All electrical wiring must be in conformance with applicable local codes, regulations, and the National Electric Code (NEC). It is strongly advised to protect the electrical components from direct sunlight though this pump is designed for outdoor use. Place this pump in a well-drained area, one that will not flood when it rains. If installed within an outer enclosure or beneath the skirt of a hot tub or spa, adequate ventilation and free circulation of air must be provided to prevent overheating.
- Page 6 13.58"(345mm) 14.17"(360mm)
- Page 7 WIRING WARNING: All electrical wiring must conform to local codes, regulations, and the NEC. WARNING: Turn off power to pump before working on electrical connections. For Single Speed Pumps If the pump comes with a power cord, no wiring is needed. If not, wire the pump as below: How to wire 230V •...
- Page 8 For Two Speed Pumps If the pump comes with a power cord, no wiring is needed. If not, wire the pump as below: • Ground wire connects to the ground terminal. • If your power supply has two hot wires, connect them to each terminal marked with “Line”;...
- Page 9 Voltage from the power must be in the range from 90% to 110% of the motor nameplate rated voltage. Otherwise, the motor may overheat and result in overload tripping and reduced component life. Install, ground, bond, and wire motor in accordance with local or NEC requirements. The motor should be grounded permanently by connecting the ground terminal to the electrical service ground.
-
Page 10: Troubleshooting
Warning: Turn off the power and release all pressure before draining the pump. TROUBLE SHOOTING MOTOR WILL NOT START • Improper or loose wiring connections; open switches or relays; tripped circuit breakers, GFCI’s, or blown fuses. • Manually check rotation of motor shaft for free movement and lack of obstruction. •... - Page 11 LOW FLOW • Clogged or restricted strainer or suction line; undersized pool piping. • Plugged or restricted discharge line or filter, valve partially closed (high gauge reading). How to correct: Backwash strainer as per manufacturer’s instructions; • Air leak in suction piping causing rumbling in the pump. •...
