SEWAGE PUMP
INSTALLATION INSTRUCTIONS
MODEL:FLO700
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR FLO700
Summary of Contents for VEVOR FLO700
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support SEWAGE PUMP INSTALLATION INSTRUCTIONS MODEL:FLO700 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: General Description
Therefore, it is possible that the test water remains in the appliance. GENERAL DESCRIPTION The equipment should be avoided for commercial use; the FLO700 is exclusively reserved for indoor use.The macerator pump system of the appliance is integrated in a special way, which is only suitable for toilets with a horizontal outlet(P-trap toilet). -
Page 4: Specifications
FLO700 is specially used to connect with: Washing machine Shower cabin Bidet Wash basin Urinal SPECIFICATIONS 700W Input Power Rating: Max Vertical Lift: 220-240V, Input Voltage: Max Temperature: 90℃ 50HZ 160L/MIN Flow Rated: Noise Level:... -
Page 5: Installation Diagram
INSTALLATION (DIAGRAM) ACCESSORY LIST - 2 -... -
Page 6: Installation Instructions

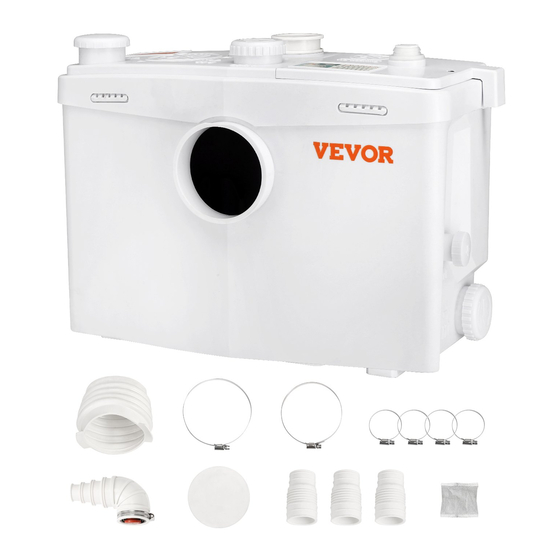

Name Number Check valve with plastic elbow Hose Clamp (32-50mm) Rubber ring to connected the Intelflo toilet and Intelflo pump Plastic hose Activated Carbon Hose Clamp (90-110mm) Hose Clamp (110-120mm) Plug(It Mounted On The Pump) INSTALLATION INSTRUCTIONS (5-1), Install the rubber sleeve (D) onto the sewage pump and lock it with a 90- 110mm hose clamp(G). - Page 7 accessories, and the customer is free to choose. In this installation example, we choose the 1-1/4"(32mm) drain pipe size. Then use a knife to cut the extra. Note: The smaller the pipe diameter, the higher the lift. (5-3), In addition, at the corner of the PVC water pipe, be sure to use a large elbow composed of two 45-degree elbows, not a right-angle elbow;...
- Page 8 (5-4), Please install a ball valve (not provided) near the water outlet to prevent sewage leakage when the pump is disassembled. (5-5),When connecting to the main pipe, the drain pipe must flow in from above the main pipe to prevent back-flow. As shown below: - 5 -...
- Page 9 8/13 (5-6), For best performance, please drain upward first and then drain drain pipe to the main pipe at a 2%-3% incline: otherwise, the sewage will flow back. INSTALLATION OF CONNECTING PIPE IN THE SHOWER ROOM (6-1), Install the plastic hose fitting (E) and lock it with the hose clamp (C). There are two inlet holes on the left and right sides of the sewage pump.
- Page 10 (6-2), When installing the shower room, first, you can install a wooden or iron shower base or build a cement platform. For wastewater from the shower and bath, ensure that the slope of the siphon is at least 3% (0.4 inches per 40 inches) so that the wastewater flows through the natural gravity to the unit position.
- Page 11 (6-4), If the toilet is not connected, you can use the lid (J) to block the toilet water inlet and then use the clamp (G) to fix the toilet. Then only connect the sink, shower room, and washing machine. DOUBLE DEODORANT FUNCTION One is activated carbon to deodorize, put a bag of activated carbon into the vent, and then cover it tightly.
- Page 12 8-1 , Finally connect the toilet and lock it with a 110-120mm hose clamp (H). The installation Position of the macerating pump should be parallel to the toilet. 8-2, Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter, or anything that could halt or damage or corrode the unit.
- Page 13 WARNINGS (1)Electrical installation: ■The connection shall be carried out by a qualified technician and the rules for electrical installations (NEN l010) shall be met. ■If the power cord of the appliance is damaged, it shall be replaced by the manufacturer or supplier of the appliance. This will avoid creating dangers.
-
Page 14: Troubleshootings
TROUBLE SHOOTINGS Some malfunctions of the grinder are not practically serious. You can correct it by yourself. To diagnose and find a solution to the Trouble, refer to the diagram below. For other malfunctions, contact the supplier or a qualified professional. MALFUNCTIONS POSSIBLE CAUSES SOLUTIONS... - Page 15 Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET Manufacturer: Ningbo YUNSUN Electromechanical Co., Ltd Address：Building 3 No.7 Hongshen Road Hongtang Industrial Zone A, Jiangbei District 315033 Zhejiang P.R. China Made In China EUREP UK LTD UNIT 2264, 100 OCK STREET, ABINGDON...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
