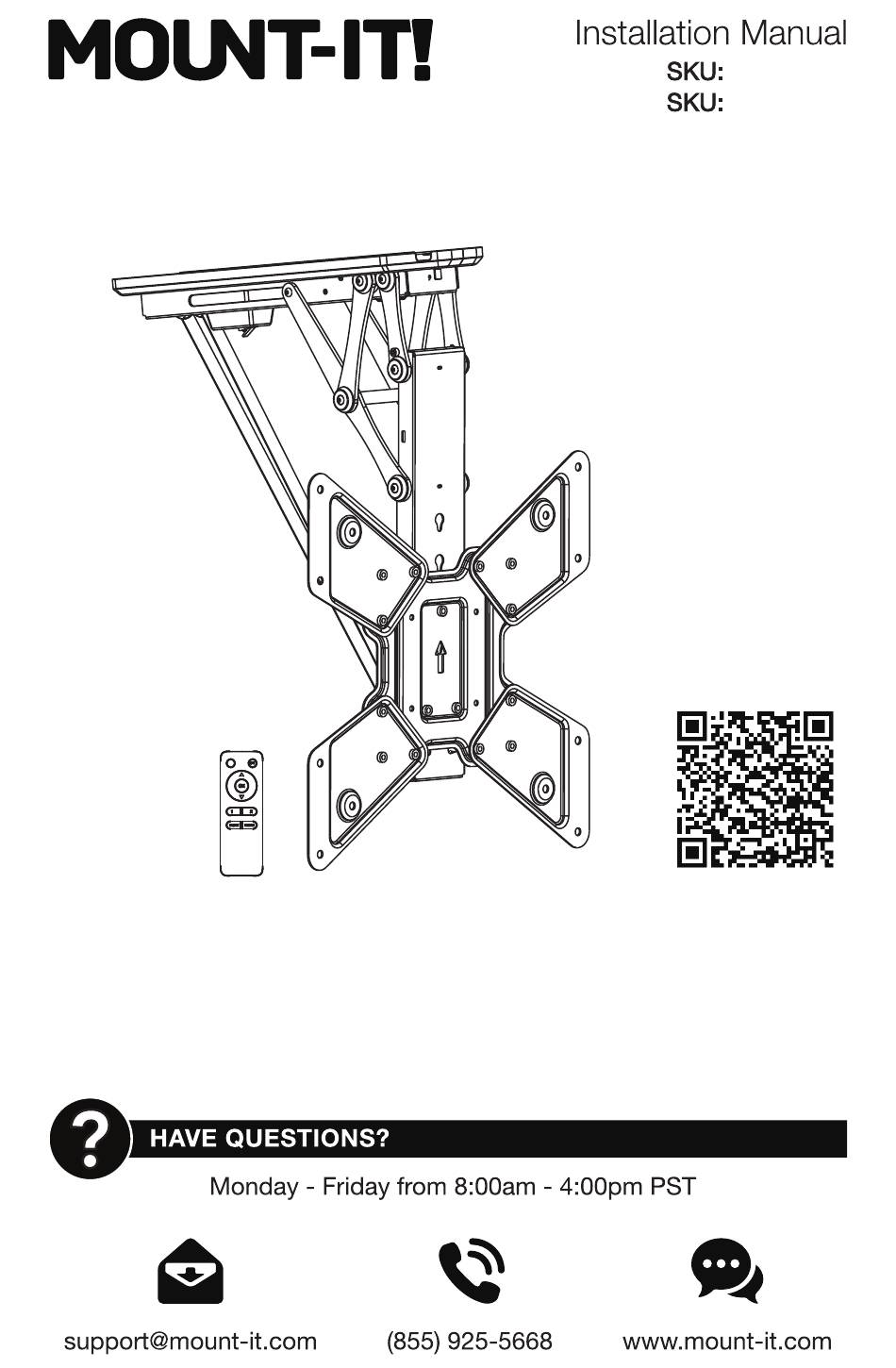

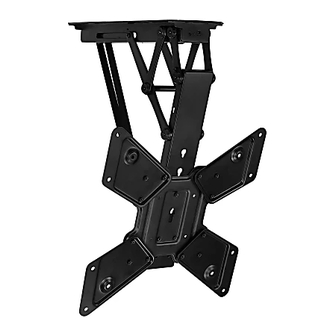

- Page 1 MI-4223 MI-4223W Please scan this QR code to visit the product page. MOTORIZED TV CEILING MOUNT...
- Page 2 Thank you for choosing Mount-It Mount-It! Mount-It! A. Button Functions 1.Raising/Lowering Press the up “ ” button and the mount will raise to the highest position. remote control Press the down “ ” button and the mount will move down to the lowest position. Press the OK “...
-
Page 3: Mounting Hardware
Mount and Accessories 1. The mount beeps constantly or is making an abnormal noise. a). Reset the system: Press and hold the " " button for 5 seconds. The mount will retract to the highest position, and the reset is complete. c). - Page 4 Step 1a Step 1b Concrete or Stone Surface Installation Option Wood Surface Installation Option • Hold the Wall Template (#C) in the desired location for installation and use a pencil to mark the • Hold the Wall Template (#C) in the desired location for installation and use a pencil to mark the locations of the 6 holes through the template.
- Page 5 Step 2 Step 3 Attach the VESA Plate to the TV Remove the Security Bolts from the VESA Plate • Remove the two lower security bolts shown in the image from the VESA plate, and keep them for use • Lay your TV down on a flat surface and align VESA Plate over the holes. later in the installation.
-
Page 6: Step 4 Cable Management
Step 5 Caution: Ensure there is a minimum gap of 0.6” (15mm) between the ceiling and the top of your TV. Failure to do so may result in damage to the TV or Motorized Mount. Step 4 Cable Management • Run any cables through the channels on the Cable Management Covers (#D) and slide the covers into place when done.
