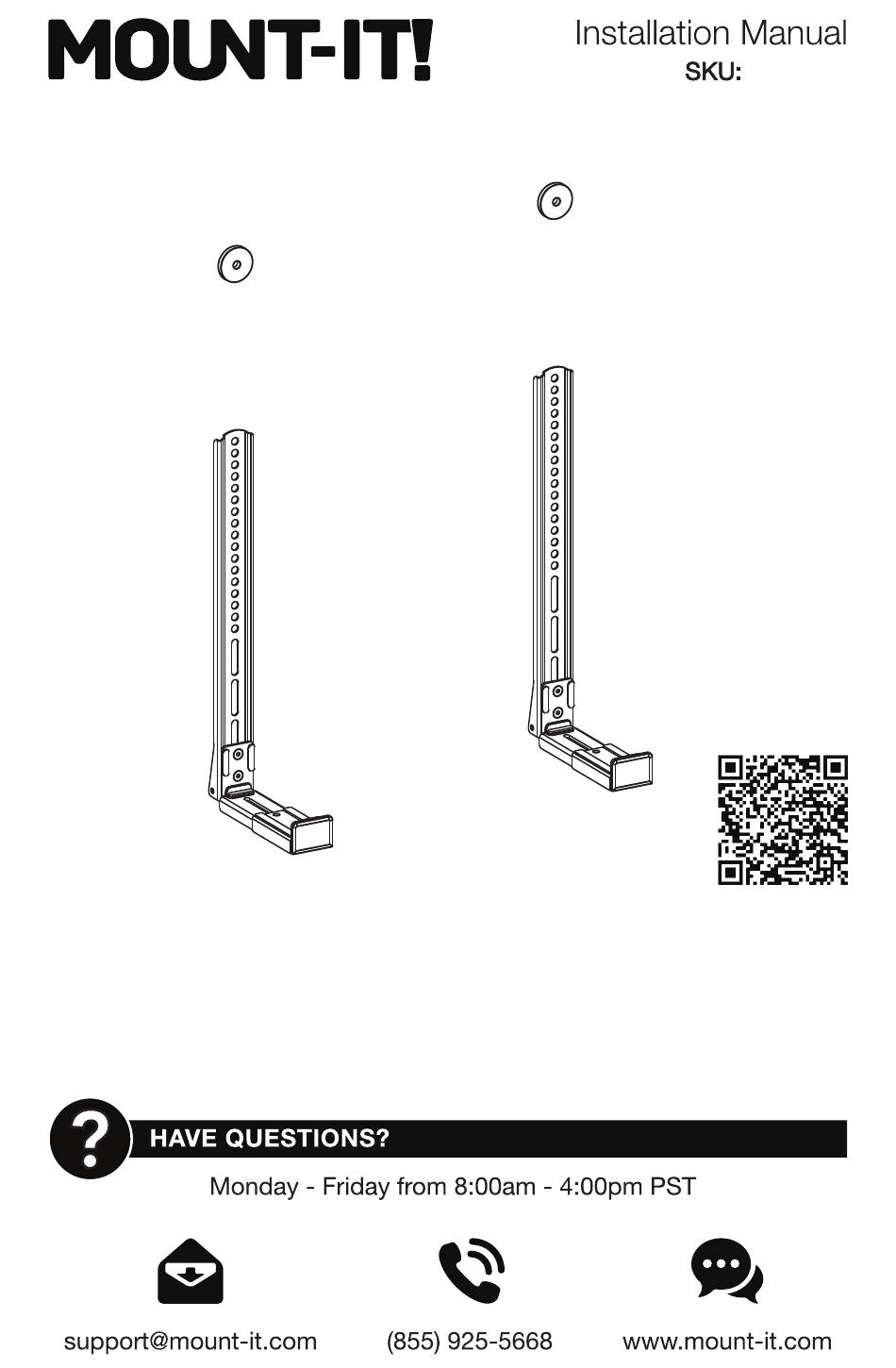

- Page 1 MI-SB50 UNIVERSAL SOUNDBAR BRACKETS FOR TV AND WALL MOUNTING...
- Page 2 Thank you for choosing Mount-It PACKAGE CONTENTS Mount-It! Mount-It! TV Bracket Soundbar Bracket Decorative Short Adhesive Long Adhesive Pads Washer Spacer Cover Pads Wrench Bolt Bolt Allen Wrench SOUNDBAR BRACKETS HARDWARE D5-Ø5.3xØ16x1.5 Ø8xØ15x5 Ø8xØ15x15 Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 3a Mounting the Soundbar Directly to the Wall Wall Stud Installation Concrete Installation Step 1a Installing Pads and Cover • Begin by removing the backing from two of the Long Adhesive Pads (E) and installing them as shown onto the Soundbar Bracket (B).Slide Decorative Cover (C) onto the shorter end of the Soundbar Bracket (B).
- Page 4 Step 5a Mounting the Soundbar to a TV Inserting the Soundbar into the Mount Step 1b • Once the brackets are expanded enough to fit your device, place the soundbar on top of the brackets Installing Pads and Cover as shown. •...
- Page 5 Step 2b • Select the appropriate size mounting bolt (M-A through M-G) for your display’s mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display, refer to your TV user manual or contact the TV manufacturer for sizing information. If necessary, use the Connecting the Bracket to the TV included spacers (M-H, M-I) between the mount and the TV as shown above to adjust the length of the mounting bolt.
- Page 6 Step 3b • Once the brackets are expanded enough to fit your device, place the soundbar on top of the brackets as shown. Next push the extended ends of the brackets back in until they are snugly holding the soundbar in place.
