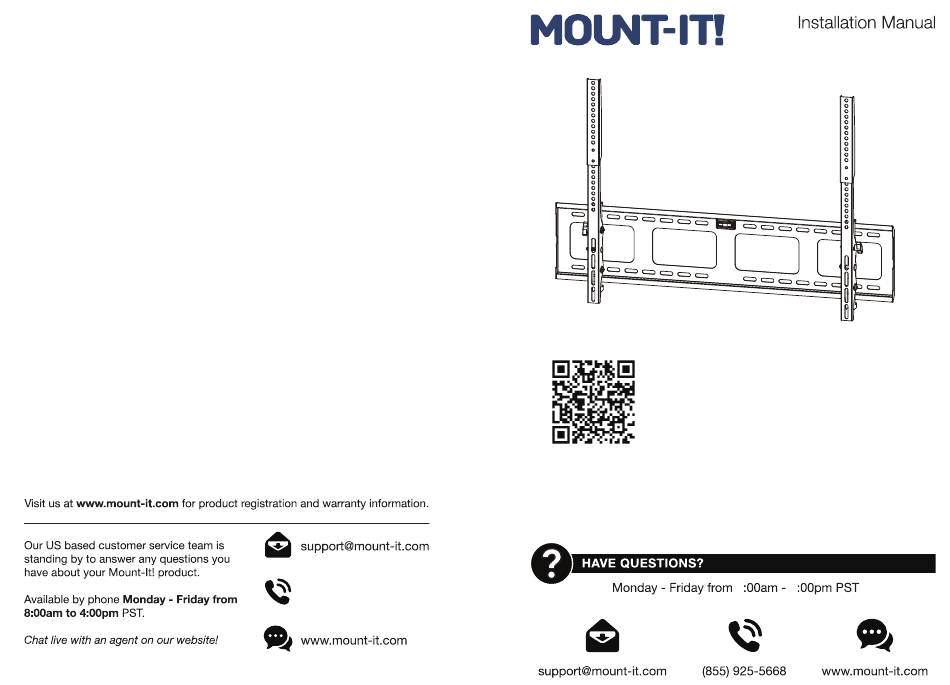

- Page 1 SKU: MI-303L Scan this QR code for product information, videos, and assembly assistance. Heavy Duty Tilting TV Wall Mount (855)- 925-5668...
- Page 2 (Mount-It!) for assistance. COMPATIBLE VESA SIZES FITS MOST TVS UP TO WEIGHT RATING 200x200/300x300 MI-303L 400x200/400x400 100kg 600x400/800x400 (220lbs) 800x600 please contact us (Mount-It!) for a replacement. WARNING: This installation manual is intended to provide guidance on how to install the TV mount and the TV on a suitable wall.
- Page 3 Install the Tilt Adjustment Knob INSTALLATION OPTION 1: Wood Stud Installation TOOLS REQUIRED With a stud finder locate the stud and center the mount on the stud at the desired height. Using a bubble level to ensure Install the Tilt Adjustment Knob (#E) and washer into the Left and Right VESA Brackets (#C, D) in the orientation shown here.
- Page 4 Installing the TV to the mount INSTALLATION OPTION 2: Concrete/Brick Wall Installation TOOLS REQUIRED TOOLS REQUIRED M-A/M-B/M-C M-J/M-K/M-L M-D/M-E/M-F M-J/M-K/M-L M-H/M-I Lay your TV down on a flat surface and align VESA Arms (#C, #D) over the VESA holes as shown, with Left VESA Bracket (#C) on the left, and Right VESA Bracket (#D) on the right.
