Installation
The power cable (mains power supply) must be fixed with
the provided power cable holder, against accidental release
(e.g. by accidentally stepping on the cable with the following:
Last falls down)!
4.3

General

The device must be installed and maintained by qualified personnel, mechanics and electricians.
4.4

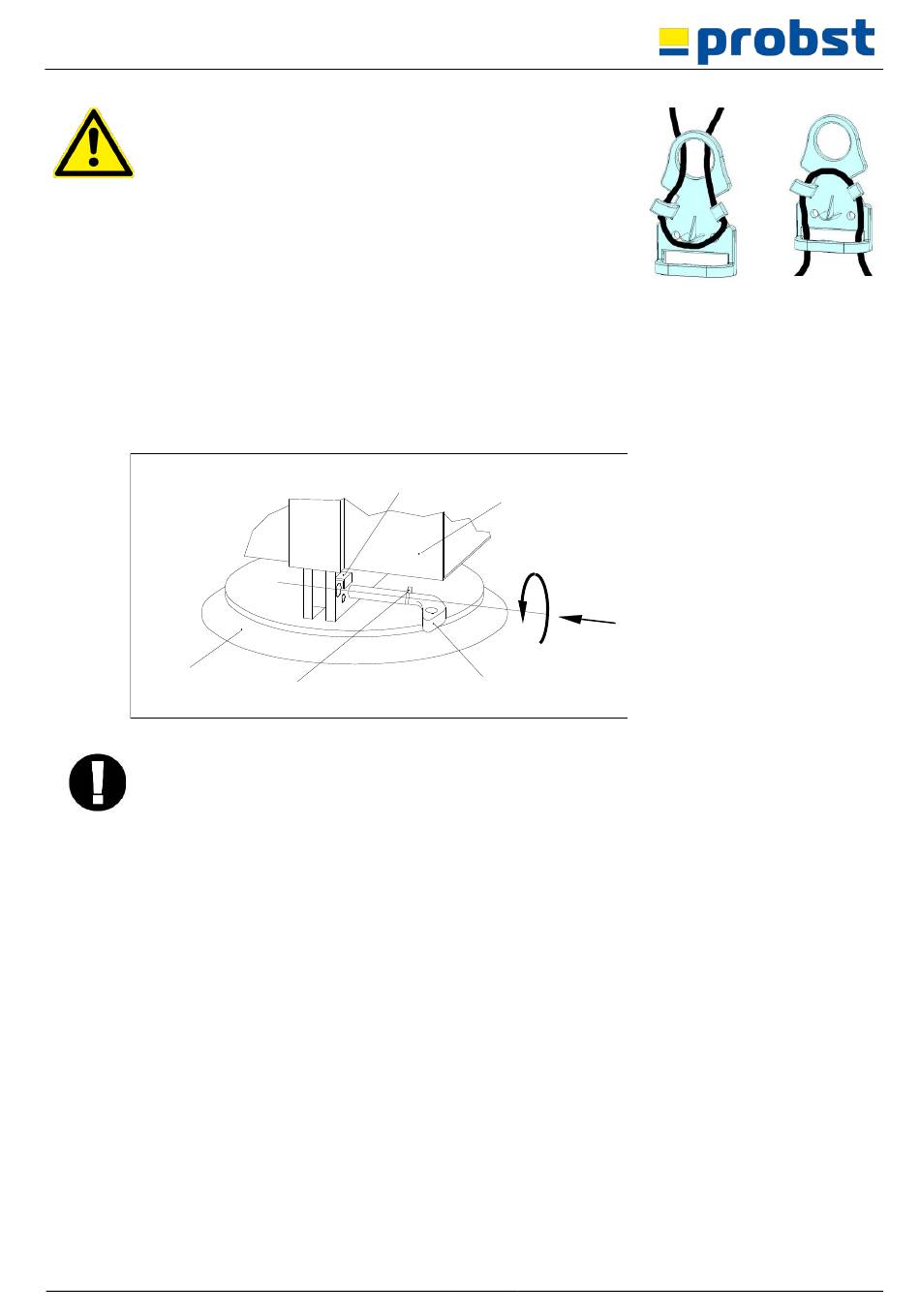

Mounting the suction plate to the lifting device

Suction pad
•
Suspend the lifting device from the suspension eye bolt on the crane or hoist used. Secure it safely!
Take the weight of the lifting device and the maximum carrying capacity into consideration!
•
Insert the suction pad into the support of the lifting device.
•
Feed the socket pin into the boring until the projection of the socket pin is at the shoulder of the
suction pad. Turn the socket pin downward until the projection is secure under the support. Check
whether the socket pin firmly secured. The socket pin must not be able to be pulled out without
turning.
•
Connect the vacuum hose to the suction pad and lock it with the integrated lock nut.
•
Before lifting loads check the safety equipment as described in section 1.12.
52400020
Support
Projection
Lifting device
Socket pin
20 / 31 GB
