Installation
4.5.1
Attaching the safety chain (of the optional spreader bar)
•
Lift the device with the sucked load just a little (approx.. 20 cm)
•
Then remove both safety chains from the chain cases of the spreader bar (TRA).
•
Throw the safety chains underneath the load (concrete slab).
Never grip with the hands under load. - Caution: Danger of squeezing hands!!!
•

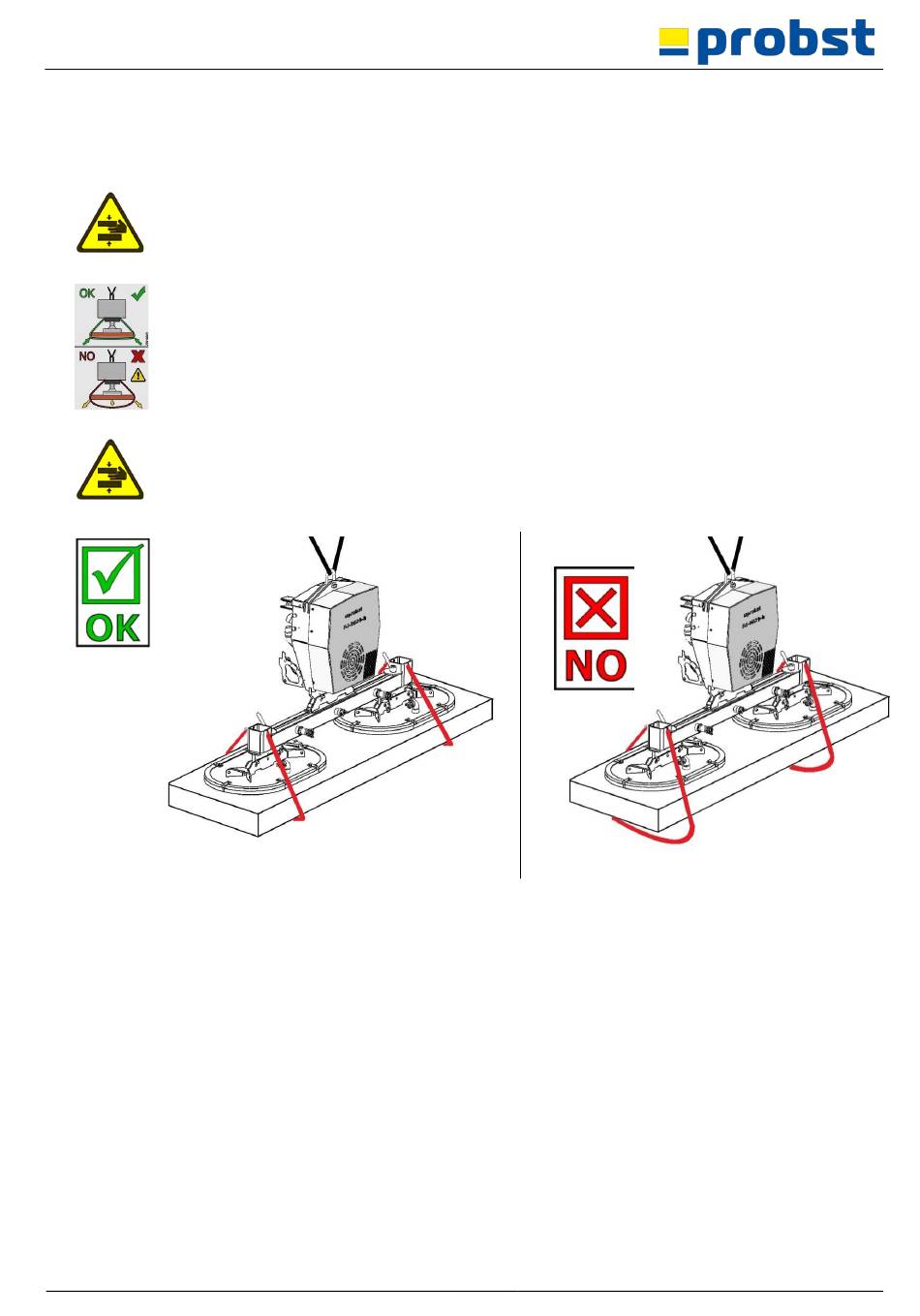

Suspend and tighten both safety chains as shown in picture 1. Place the end of the chains into the
chain cases.
•
The safety chains must fit tightly to the load, in that way that the load is held in case of a vacuum
failure (Fig. 1)
•
The safety chains must never hang loose under the load, otherwise the load may fall down,
in case of a vacuum failure (Fig. 2).
•
Now the device with sucked load be transported to the place of destination.
•
Lower the load carefully (distance to the ground approx. 0,5 m), then remove safety chains and
throw it under the load.
•
Never grip with the hands under load (stone slab)! Danger of squeezing!!!
•
Safety chains should be returned to chain cases.
•
Put the device with the sucked load completely down on the floor.
Fig. 1
52400020
Fig. 2
22 / 31
GB
