4.1.3 Fork sleeves (optional)

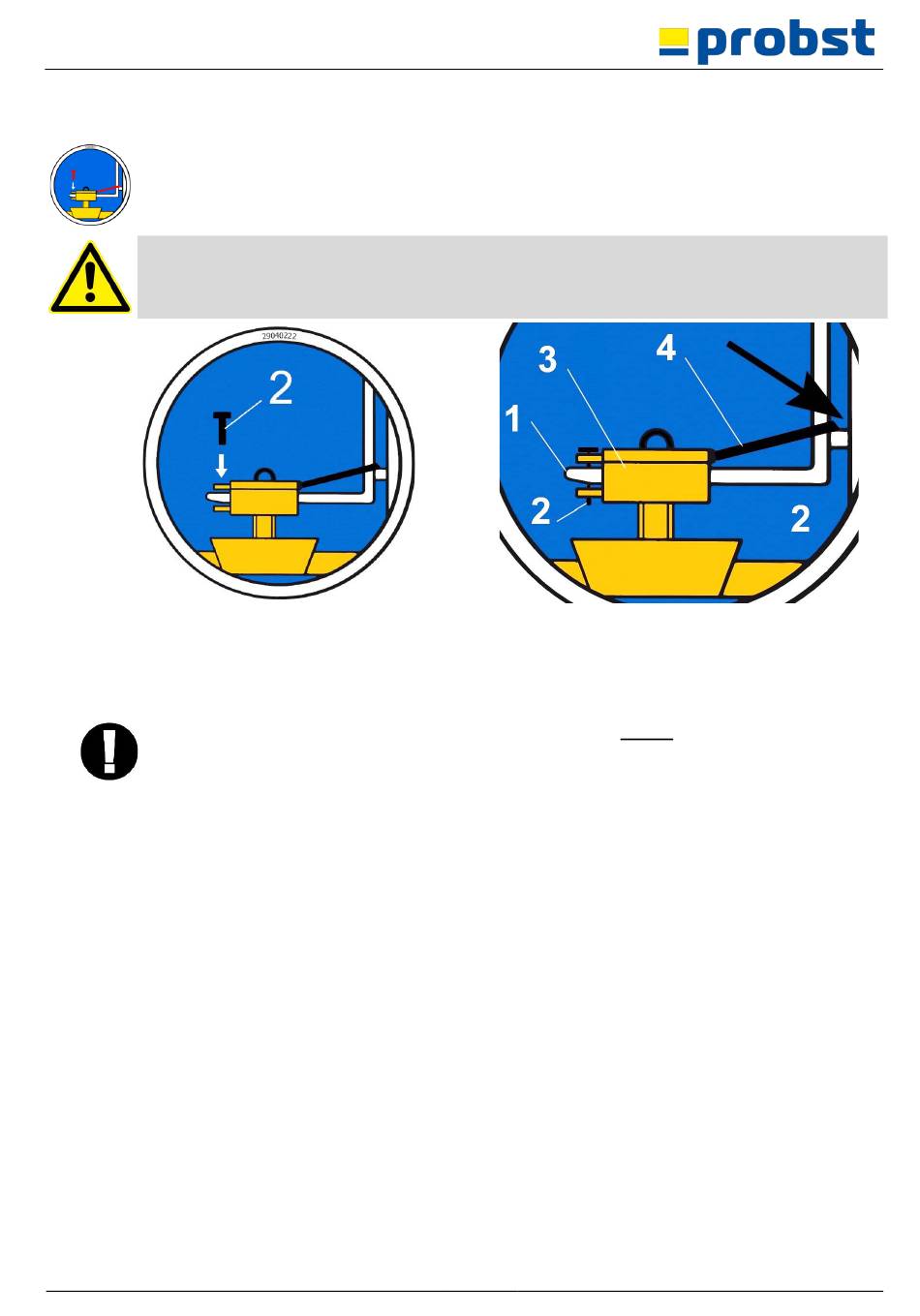

In order to connect the forklift truck and the fork sleeve (3), the forklift truck forks (1) are inserted into

the fork sleeve (3).

The forks (1) are locked either by using the locking screws (2), which are inserted through a hole in the

forks (1), or by using a chain or rope, which must be placed through the eyelet on the fork sleeve (3)

and around the fork carrier ().

This connection must be made, otherwise the fork sleeve may slip off the forklift forks during forklift

handling. DANGER OF ACCIDENT!

4.2

For each application of the device (SH-1000-MINI) the different suction plates must be fastened to the

corresponding place to the device.

The device (SH 1000-MINI) with sucked in load (stone slab) must always hang on the carrier (e.g.

excavator) vertical.

52400020
