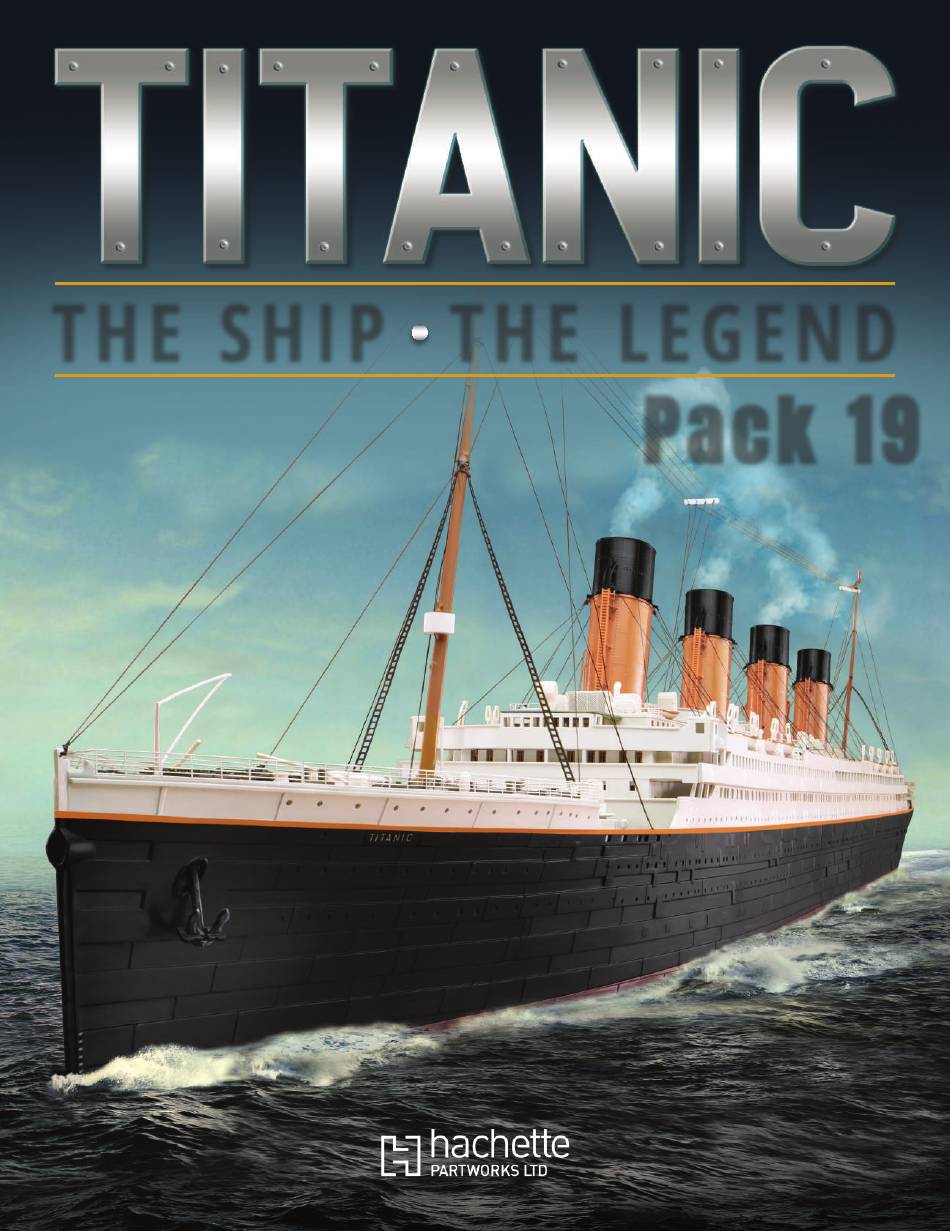

Page 1
T HE SHIP T HE LE GEND P a ck 19 P a ck 19...
Page 2
STEP-BY-STEP INSTRUCTIONS • • Speaker for Sound Effects PARTS IN THIS ISSUE 105A 105A Battery cover 105B Speaker holder 105C Four washer screws 105D Speaker 105B Four 4 x 2.3mm BP screws (1 spare) Two 4 x 2mm NM screws crews (1 spare) 105D 105C...
Page 3
105B 104B Fit the speaker assembly into the battery box 104B, so that the holes in the holder 105B align with the raised screw sockets in the box 104B. Note that the cables should run out of the holder on the side next to the circuit board.
Page 4
STEP-BY-STEP INSTRUCTIONS • • 103A 103A 104B 104B 104B Fit the battery box to the base of the stand 103A. Place the battery box upside down on the stand as shown in the photo (above) and connect the two cables to the corresponding sockets on the circuit board (circled, left).
Page 5
104B Fit the flanges on the battery box cover into the slots in the battery housing. Secure the tab on the other side of the cover in place with an screw. Do not insert batteries or carry out any operational tests at this stage. 103A 105A 105A...
Page 6
STEP-BY-STEP INSTRUCTIONS • • Nameplate for the Model PARTS IN THIS ISSUE 106A 106A Support for nameplate 106B Double-sided tape 106C Nameplate 106D Three washer screws 106B 106D 106C 106C 106A 106B 106C 106B Take the double-sided adhesive and remove the protective backing from one side.
Page 7
104B 103A 106A 106A 106D 106A Identify the fixing points for part front of the battery box 104B. Three screw 106A sockets on the underside of part align with screw holes in the stand 103A. Turn the 106A stand upside down so you can fix part 106D in place with three washer screws 106D.
Page 8
STEP-BY-STEP INSTRUCTIONS • • Port Side Aft Upper Hull Section 107A PARTS IN THIS ISSUE 107A Aft hull section, upper port side Two hexagonal headed washer screws (1 spare) 107A 107A 107A 107A Take hull section check how it fits against part 98A, as shown (left).
Page 9
107A 107A 107A 107A Fix hull section in place with an screw. You will need to use the Allen key supplied with issue 15 to tighten the screw. Completed work The aft upper hull section has been fitted to the port side of the model.
Page 10
STEP-BY-STEP INSTRUCTIONS • • Lower Aft Hull Section, Port Side PARTS IN THIS ISSUE 108A 108A Aft hull section, lower port side Five hexagonal-headed washer screws (1 spare) 108A 107A 107A 108A 108A Check how hull section fits against parts 107A and 97A.
Page 11
107A Fix the hull section 108A in place with four screws. You will need the Allen key supplied with issue 15 to tighten the screws. 108A 107A 108A 107A 108A Completed work The lower aft hull section has been fixed in place on the port side your model.
Page 13
109C 109D 109E 109C 109D 109E 109C 109D Fit the remaining three panels 109C, 109D 109E 109E in the same way. Again, note that the pegs are slightly angled and different sizes to help you fit them correctly. Push each panel in place. There is no need to use any glue.
Page 14
STEP-BY-STEP INSTRUCTIONS • • Lower Aft Hull Section: Starboard Side PARTS IN THIS ISSUE 110A Lower aft hull section (starboard side) 110B Panel 5 110C Panel 6 110D Panel 7 110E Panel 8 110A Six 2.6 x 3mm PWM screws Five 2.6 x 4mm PM screws 110B 110C...
Page 15
100A 109A 110A 109A 110A Fit the screw holes in sections over the 100A and 99A. Check that screw sockets in sections they fit together as shown above, then fix them together using two screws, tightening them with the Allen key. •...
Page 16
STEP-BY-STEP INSTRUCTIONS • • Push the ends of the port and starboard sides of the hull together at the stern end. Fix the ends together using four screws inserted into the holes in the starboard side of the hull (circled). 109A 110A 110B...
Page 17
Position the other three panels 110C, 110D 110E in the same way, ensuring that the pegs are fitted in the correct holes. 110C Push each panel in place. There is no need to use any glue. 110D 110E 110D 110E 110C 110C 110D...
