Cypress CY14B104LA Specification Sheet

Cypress CY14B104LA Specification Sheet

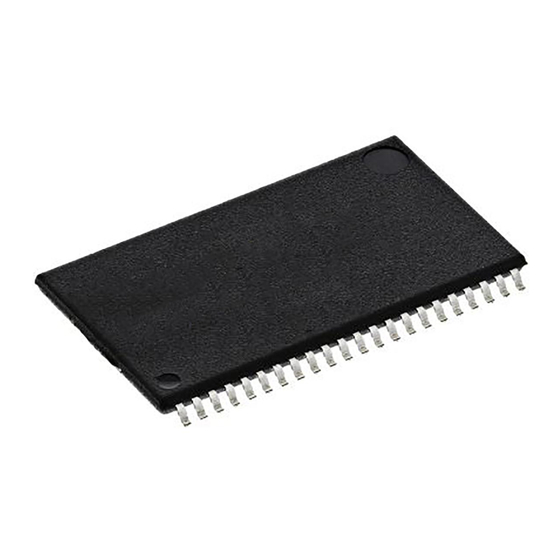

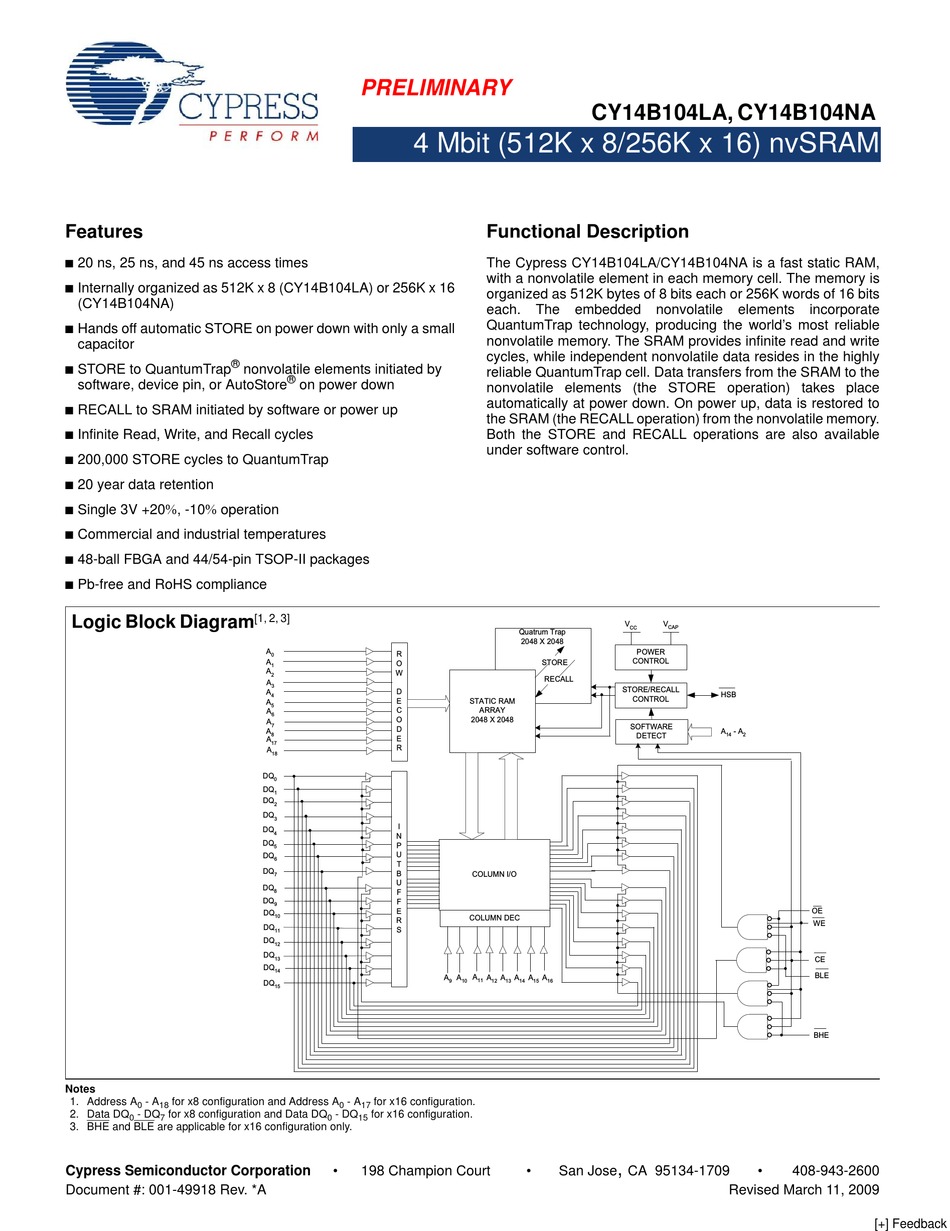

4 mbit (512k x 8/256k x 16) nvsram

Advertisement

Quick Links

Features
20 ns, 25 ns, and 45 ns access times
Internally organized as 512K x 8 (CY14B104LA) or 256K x 16
(CY14B104NA)
Hands off automatic STORE on power down with only a small
capacitor
®
STORE to QuantumTrap
nonvolatile elements initiated by
software, device pin, or AutoStore
RECALL to SRAM initiated by software or power up
Infinite Read, Write, and Recall cycles
200,000 STORE cycles to QuantumTrap
20 year data retention
Single 3V +20%, -10% operation
Commercial and industrial temperatures
48-ball FBGA and 44/54-pin TSOP-II packages
Pb-free and RoHS compliance
Logic Block Diagram
Notes
1. Address A
- A
for x8 configuration and Address A
0
18
2. Data DQ
- DQ
for x8 configuration and Data DQ
0
7
3. BHE and BLE are applicable for x16 configuration only.
Cypress Semiconductor Corporation
Document #: 001-49918 Rev. *A
PRELIMINARY
4 Mbit (512K x 8/256K x 16) nvSRAM
®
on power down
[1, 2, 3]
- A
for x16 configuration.
0
17
- DQ
for x16 configuration.
0
15
198 Champion Court
CY14B104LA, CY14B104NA

Functional Description

The Cypress CY14B104LA/CY14B104NA is a fast static RAM,
with a nonvolatile element in each memory cell. The memory is
organized as 512K bytes of 8 bits each or 256K words of 16 bits
each.
The
embedded
nonvolatile
QuantumTrap technology, producing the world's most reliable
nonvolatile memory. The SRAM provides infinite read and write
cycles, while independent nonvolatile data resides in the highly
reliable QuantumTrap cell. Data transfers from the SRAM to the
nonvolatile elements (the STORE operation) takes place
automatically at power down. On power up, data is restored to
the SRAM (the RECALL operation) from the nonvolatile memory.
Both the STORE and RECALL operations are also available
under software control.
,
San Jose
CA 95134-1709
elements
incorporate
408-943-2600
Revised March 11, 2009
[+] Feedback
