2.3 Basic Dimensions of Main Components

For other configurations, components or more details refer to the according drawings.

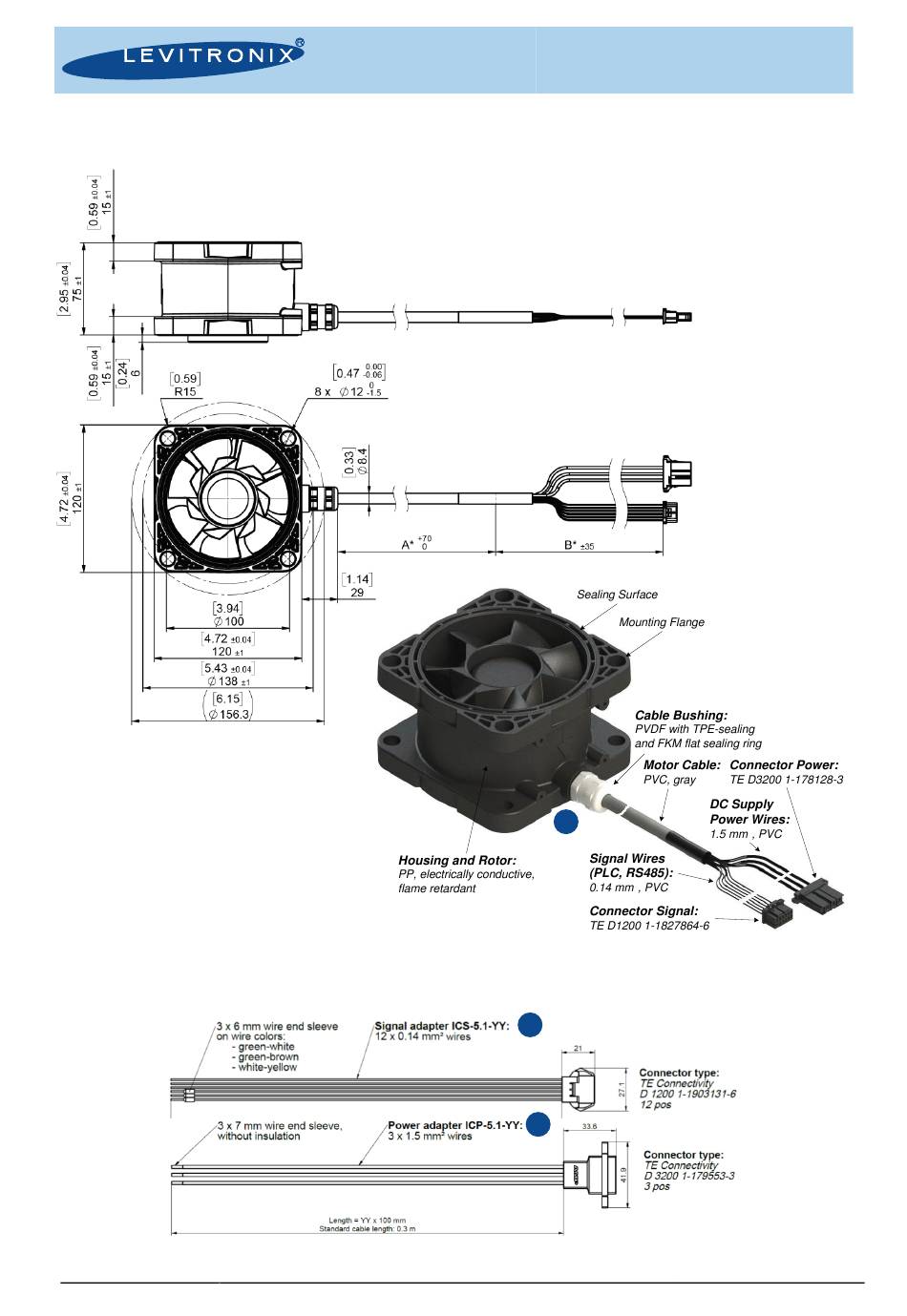

Figure 5: Basic dimensions in mm [in] of bearingless fan BFS-i06.1
Note: Non-tolerated dimensions are for reference only, dimensions in inch are rounded only
Figure 6: Basic dimensions of adaptor cables ICP-5.1-YY and ICS-5.1-YY
PL-3502-00, Rev04, DCO# 24-054 This document and its content is confidential and the property of Levitronix
disclosed or used for manufacturing or sale of Levitronix
Minimum Cable Bending Radius:
Permanent Installation: 5 x cable OD (42 mm [1.65 in])
Sometimes Moved: 10 x cable OD (84 mm [3.31 in])
Cables are not suited for sustained dynamic bending and movement
Standard Cable Configuration:
A = 5.00 m [196.85 in]
B = 0.20 m [7.87 in]
