2.3 Basic Dimensions of Main Components

For other configurations, components or more details refer to the according drawings.

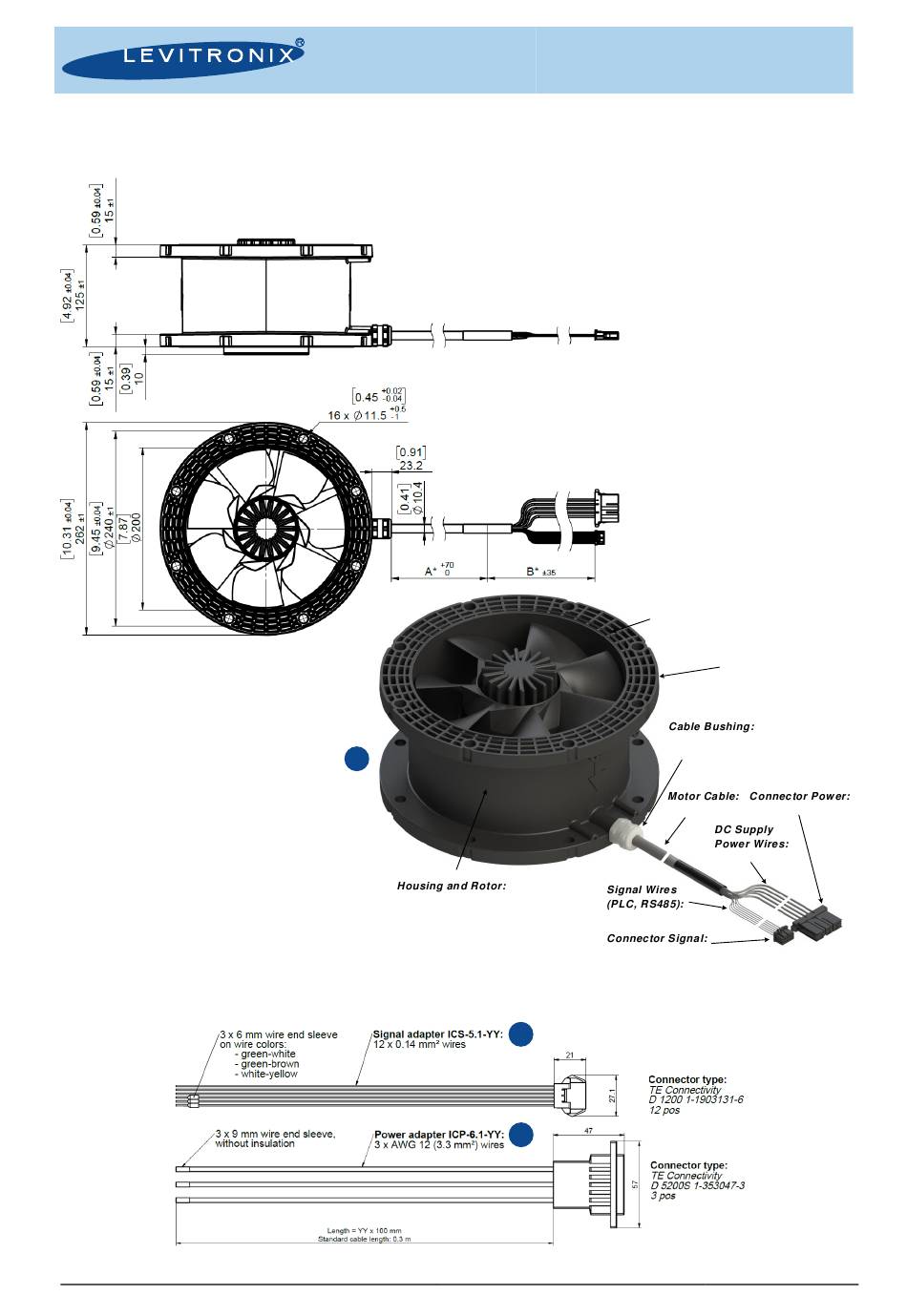

Figure 5: Basic dimensions in mm [in] of bearingless fan BFS-i10.1
Note: Non-tolerated dimensions are for reference only, dimensions in inch are rounded only
Figure 6: Basic dimensions of adaptor cables ICP-6.1-03 and ICS-5.1-03
PL-3505-00, Rev02, DCO# 23-098
Minimum Cable Bending Radius:
Permanent Installation: 5 x cable OD ( 52 mm [2.05 in])
Sometimes Moved:
Cables are not suited for sustained dynamic bending and movement
Standard Cable Configuration:
A = 5.00 m [196.85 in]
B = 0.20 m [7.87 in]
1
PP, electrically conductive,
flame retardant
2b
2a
User Manual for BFS-i10
www.levitronix.com
10 x cable OD (104 mm [4.09 in])
Sealing Surface
Mounting Flange
PVDF with TPE-sealing
and FKM flat sealing ring
PVC, gray
2.5 mm
2
0.14 mm , PVC
TE D1200 1-1827864-6
TE D5200S 1-179958-3
2
, PVC
