2.4 Basic Dimensions of Main Components

Note 1: For other configurations, components or more details refer to the according drawings.
Note 2: Dimensions in millimeters [inch]. Non-tolerated dimensions are for reference only.

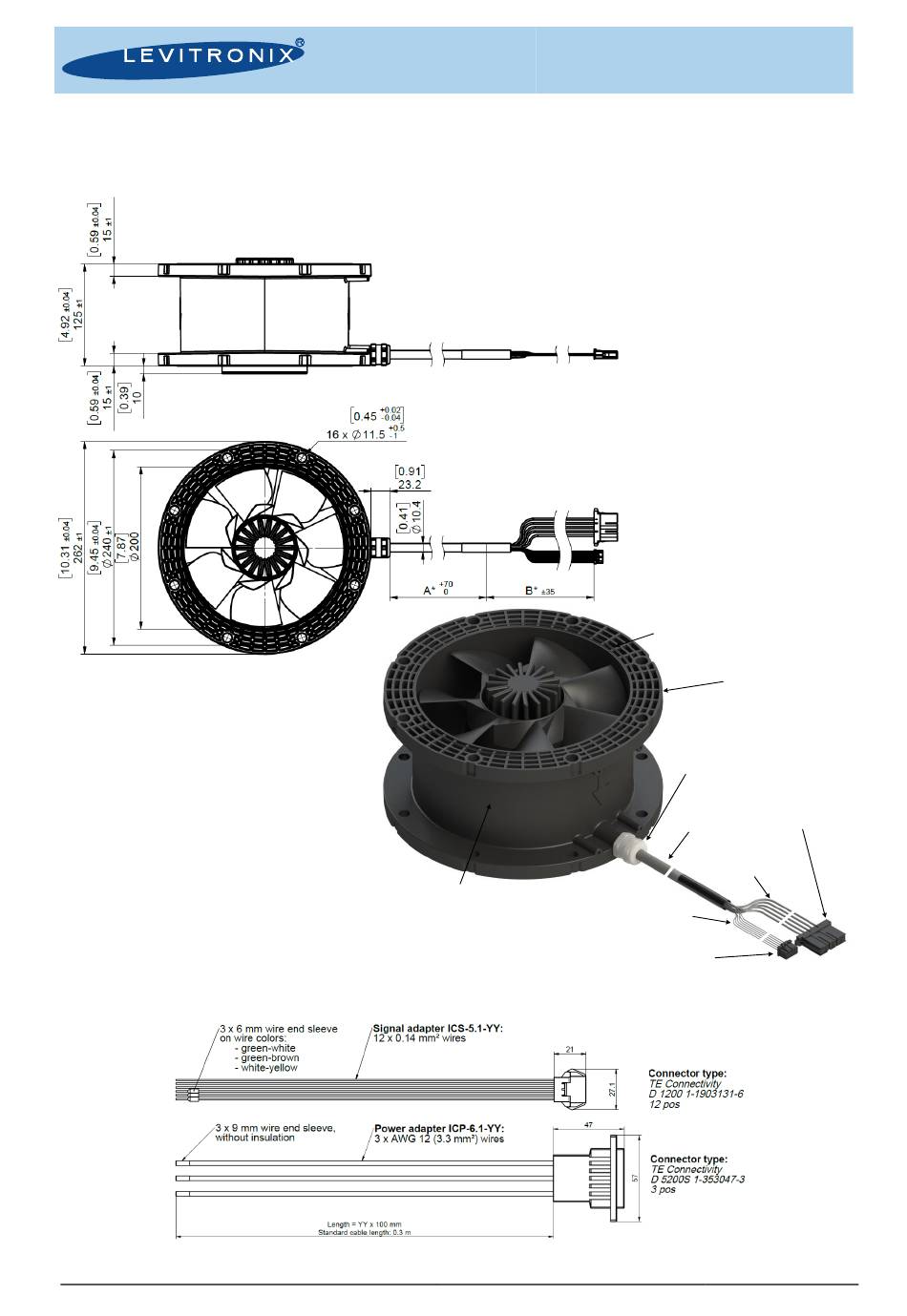

Figure 5: Basic dimensions in mm of bearingless fan BFS-i10.1
Figure 6: Basic dimensions of cable adapters ICP-6.1-03 and ICS-5.1-03
PL-3505-00, Rev00, DCO# 21-249
Minimum Cable Bending Radius:
Permanent Installation: 5x cable OD (52 mm)
Sometimes Moved: 10 x cable OD (104 mm)
Standard Cable Configuration:
A = 5.00 m [196.85 in]
B = 0.20 m [7.87 in]
Housing and Rotor:
PP, electrically conductive,
flame retardant
User Manual for BFS-i10
www.levitronix.com
Sealing Surface
Mounting Flange
Cable Bushing:
PVDF with TPE-sealing
and FKM flat sealing ring
Motor Cable: Connector Power:
PVC, gray TE D5200S 1-179958-3
DC Supply
Power Wires:
2
2.5 mm , PVC
Signal Wires
(PLC, RS485):
2
0.14 mm , PVC
Connector Signal:
TE D1200 1-1827864-6
