3.2 Sound Pressure Level

The sound pressure level emitted by the BFS-i06 strongly depends on the installation, operating point, and
rotational speed. It is recommended that customers measure the sound pressure level after installation of the
fan in their setup during typical operation.

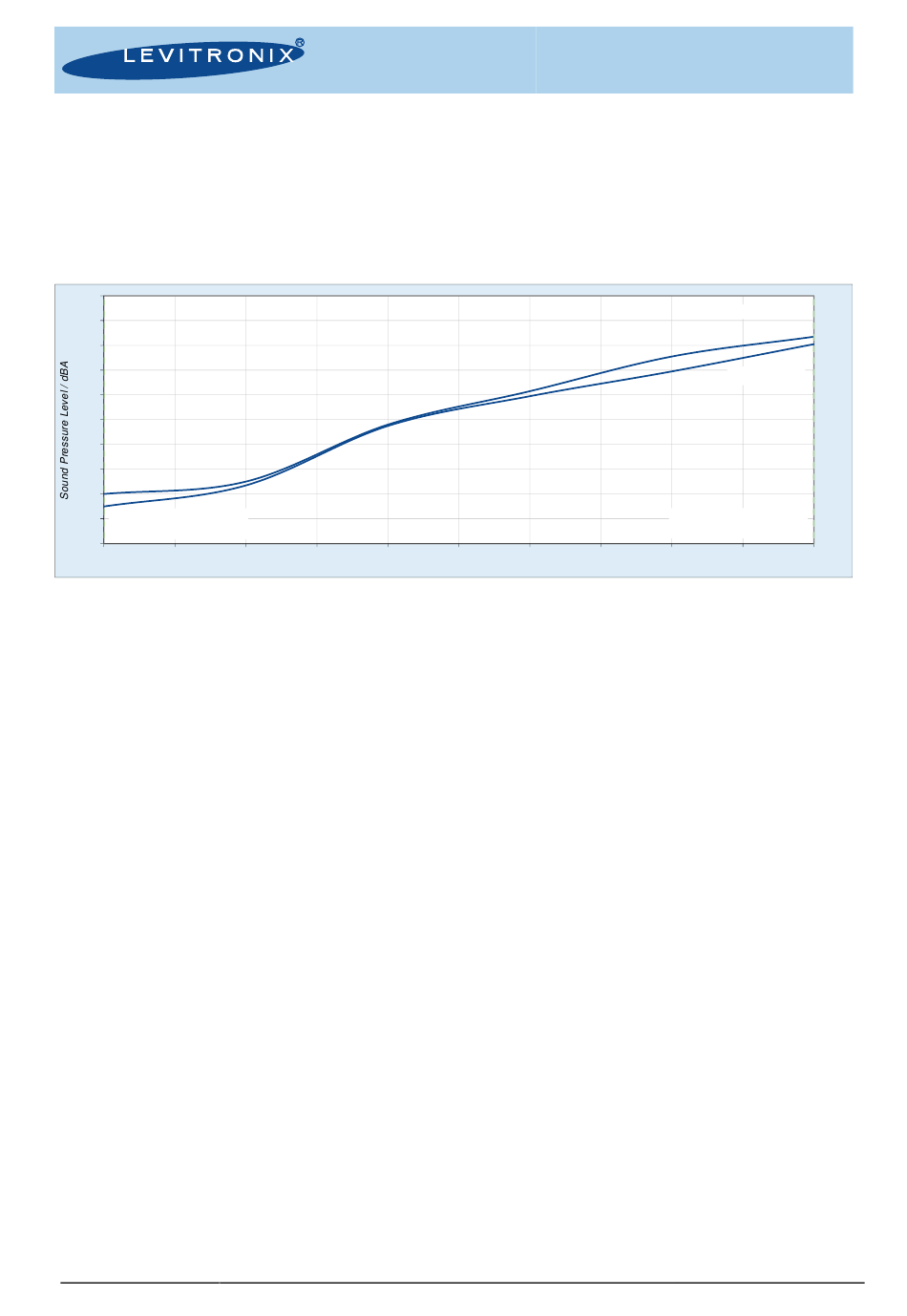

Figure 12 shows the sound pressure levels measured at Levitronix
2 m above ground into a closed duct system. Measurements were taken based on Semi S2 guidelines, i.e.
1 m traversed from the setup at a height of 1.2 m and 1.5 m above ground.
70
68
66
64
62
60
58
56
54
24 V Supply Voltage,
52
Released Performance
50
8000 8500
Figure 12: Sound pressure level vs rotational speed and measurement height
PL-3502-00, Rev04, DCO# 24-054 This document and its content is confidential and the property of Levitronix
disclosed or used for manufacturing or sale of Levitronix
9000 9500 10000
Note: Typical measured values of BFS-i06.1 installed in a closed duct system
®
. The fan was installed at a height of about
10500 11000 11500
Rotational Speed / rpm
® and shall not be reproduced, distributed,
® products without the expressed written consent of Levitronix
User Manual for BFS-i06
