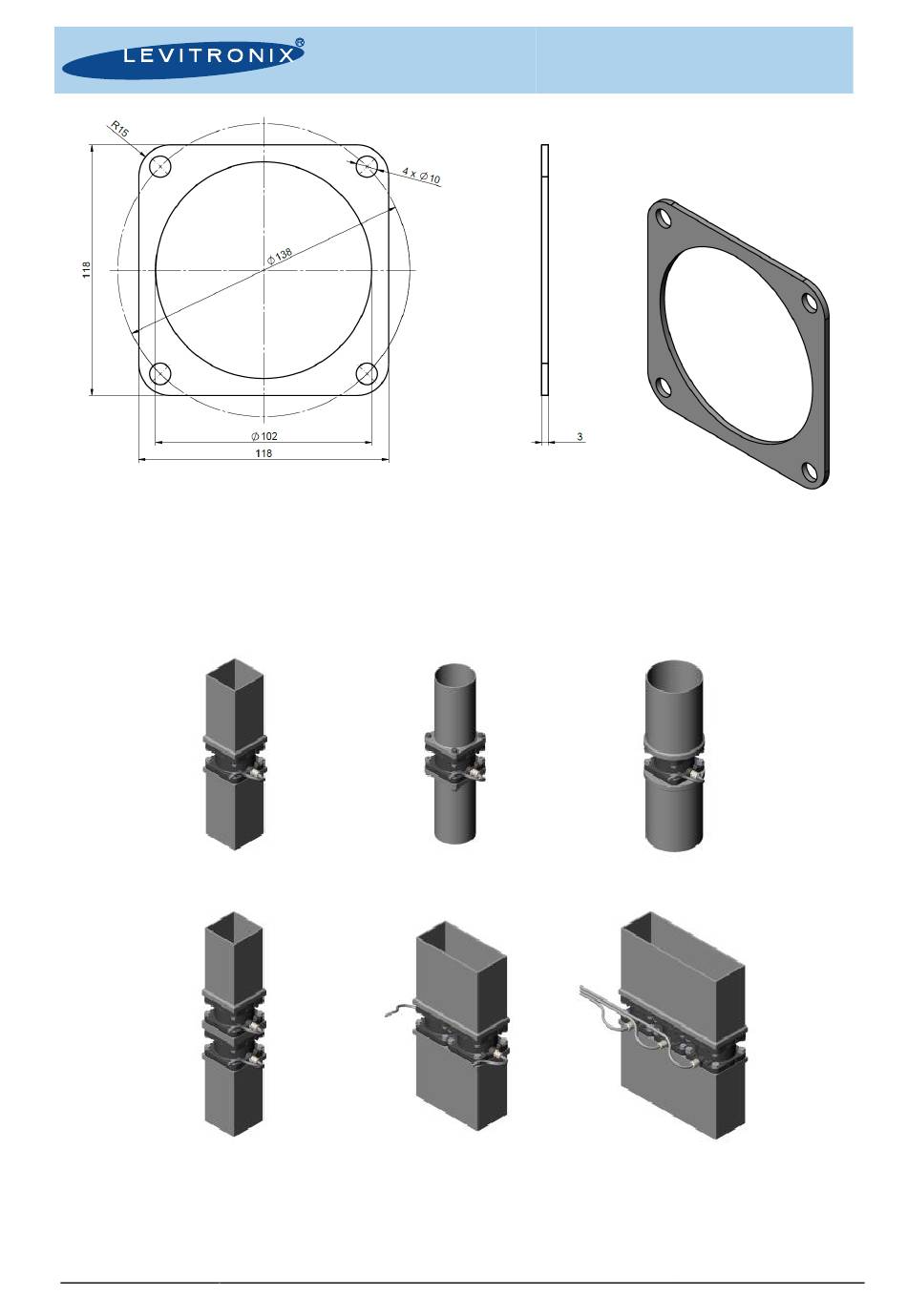

Figure 15: Flat Gasket Dimensions (mm) used by Levitronix

4.2.2 Mounting Proposals

BFS-i06 fans can be adapted into many different duct systems and may be operated in parallel or series to
achieve higher flow or pressure. This section shows a few of many possible mounting scenarios. For more in-
depth information contact Levitronix
Square duct
2 fans in series,
up to 2 x pressure
Figure 16: Possible mountings of BFS-i06 in different duct systems
PL-3502-00, Rev04, DCO# 24-054 This document and its content is confidential and the property of Levitronix
disclosed or used for manufacturing or sale of Levitronix
®
technical support (section 6.3).
Round duct,
small diameter
2 fans in parallel,
up to 2 x flow rate
® products without the expressed written consent of Levitronix
User Manual for BFS-i06
Round duct,
large diameter
3 fans in parallel
3 x flow rate
