2.3 Basic Dimensions of Main Components

For other configurations, components or more details refer to the according drawings.

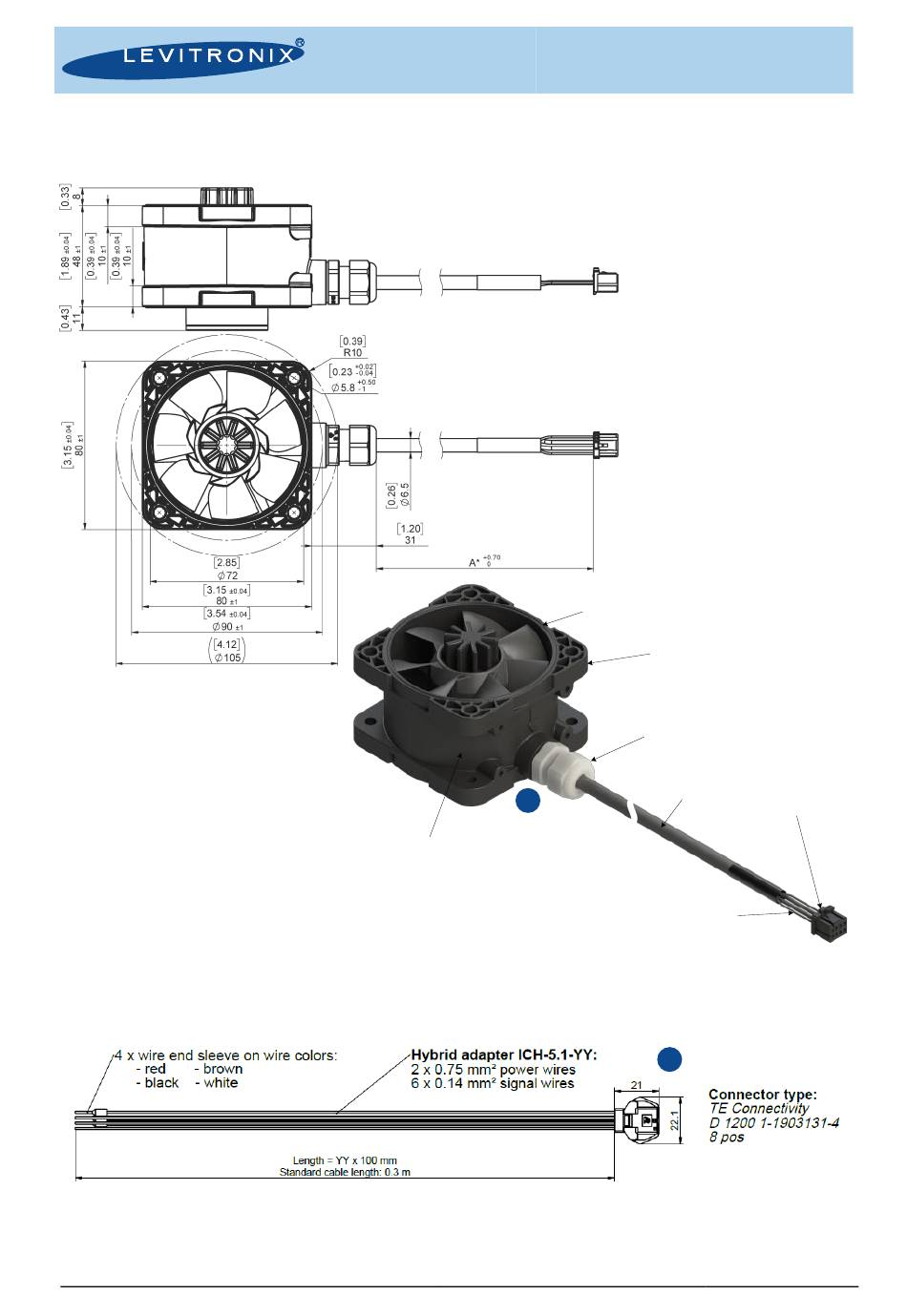

Figure 5: Basic dimensions in mm [in] of bearingless fan BFS-i04.1
Note: Non-tolerated dimensions are for reference only, dimensions in inch are rounded only
PL-3507-00, Rev00, DCO# 23-128
Housing and Rotor:
PP, electrically conductive,
flame retardant
Figure 6: Basic dimensions of adaptor cable ICH-5.1-03
Minimum Cable Bending Radius:
Permanent Installation: 5 x cable OD (32.5 mm [1.28 in])
Sometimes Moved: 10 x cable OD (65 mm
Cables are not suited for sustained dynamic bending and movement
Standard Cable Configuration:
A = 5.00 m [196.85 in]
Sealing Surface
1
User Manual for BFS-i04
www.levitronix.com
[2.56 in])
Mounting Flange
Cable Bushing:
PVDF with FKM-sealing
and FKM flat sealing ring
Motor Cable:
PVC, gray
Connector:
TE D1200 1-1827864-4
Wires:
2
Power: 2 x 0.75 mm , PVC
2
Signal: 6 x 0.14 mm , PVC
2
7
