2.4 Basic Dimensions of Main Components
Note 1: For other configurations, components or more details refer to the according drawings.
Note 2: Dimensions in millimeters [inch]. Non-tolerated dimensions are for reference only.

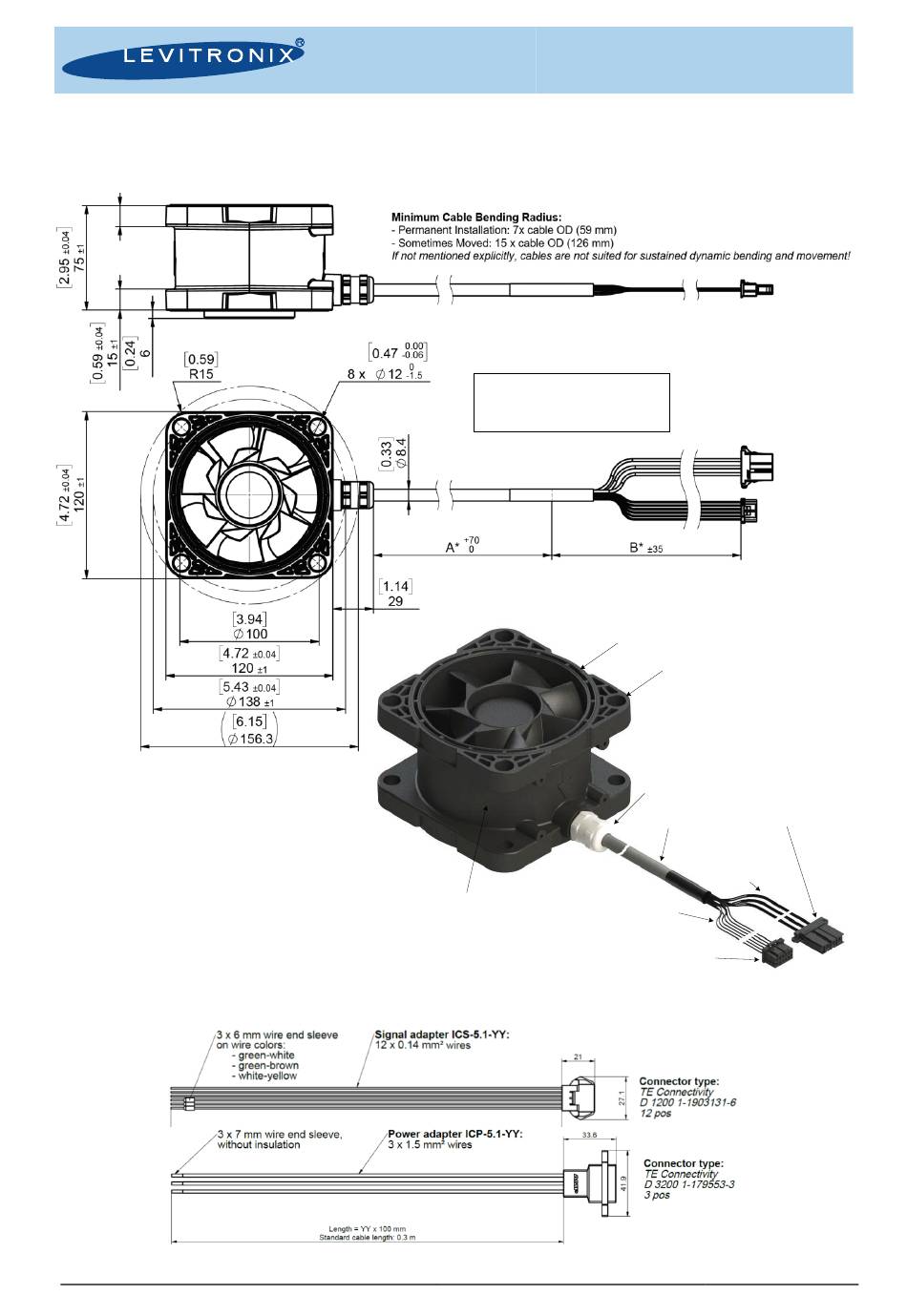

Figure 5: Basic dimensions in mm of bearingless fan BFS-i06.1
Figure 6: Basic dimensions of cable adapters ICP-5.1-03 and ICS-5.1-03
PL-3502-00, Rev00, DCO# 21-249
Standard Configuration:
A = 5.00 m = 197"
B = 0.20 m = 7.87"
Housing and Rotor:
PP, electrically conductive,
flame retardant
User Manual for BFS-i06
www.levitronix.com
Sealing Surface
Mounting Flange
Cable Bushing:
PVDF with TPE-sealing
and FKM flat sealing ring
Motor Cable:
Connector Power:
PVC, gray
TE D3200 1-178128-3
DC Supply
Power Wires:
2
1.5 mm
Signal Wires
(PLC, RS485):
2
0.14 mm
, PVC
Connector Signal:
TE D1200 1-1827864-6
, PVC
7
