Endress+Hauser Proline 200 Brief Operating Instructions page 22

Electrical connection
5

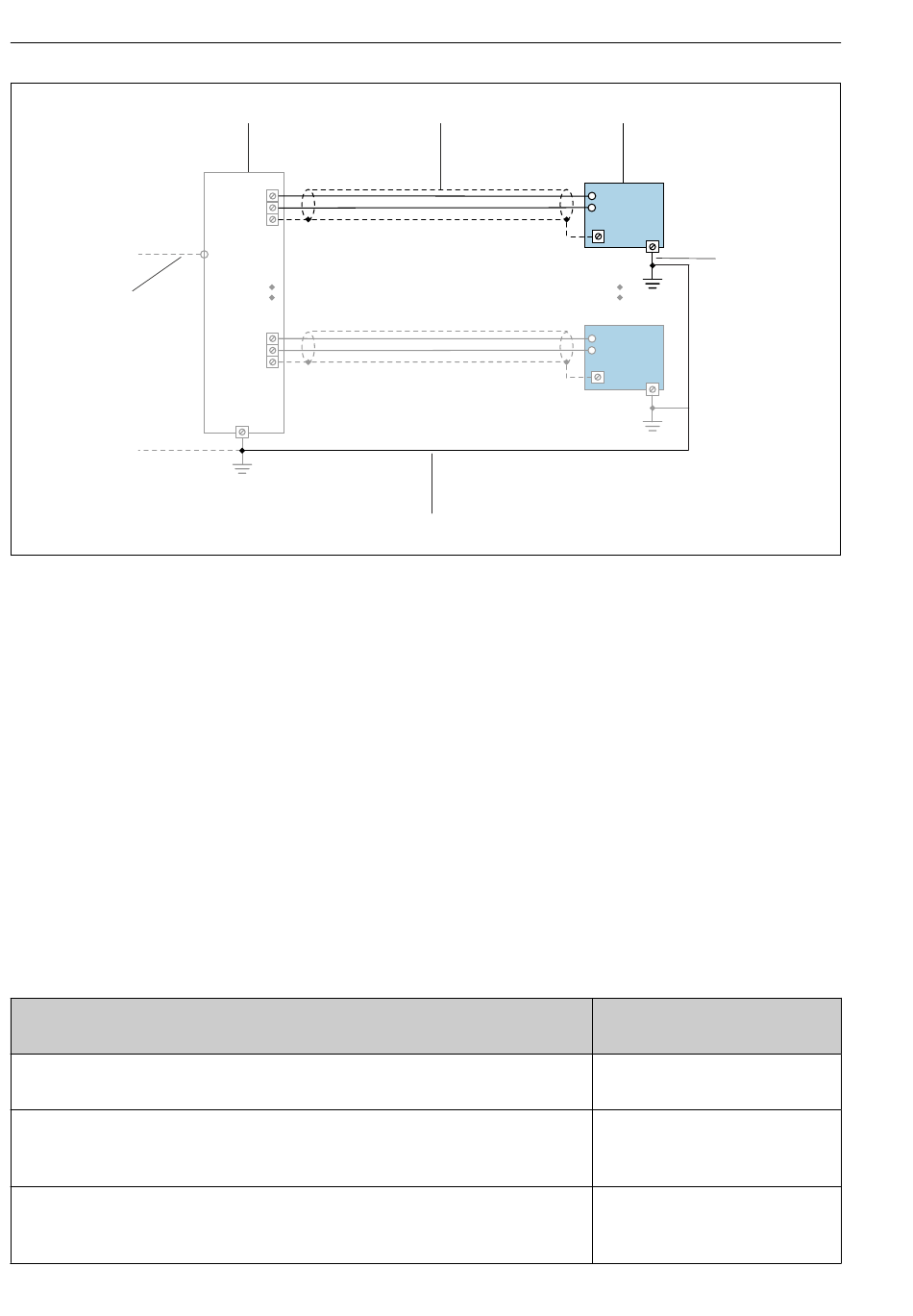

 4 Connection example for PROFINET with Ethernet-APL
1 Cable shield
2 Measuring device
3 Local grounding
4 Potential equalization
5 Trunk or TCP
6 Field switch
5.2.8 Requirements for the supply unit
Supply voltage
Transmitter
An external power supply is required for each output.
Increase in minimum terminal voltage
Local operation
Order code for "Display; Operation", option C:
Local operation SD02
Order code for "Display; Operation", option E:
Local operation SD03 with lighting
(backlighting not used)
Order code for "Display; Operation", option E:
Local operation SD03 with lighting
(backlighting used)
22
6
A
B
S
A
B
S
Flowmeter Proline 200 PROFINET with Ethernet-APL
1
A
B
A
B
4
2
3
Increase in minimum
terminal voltage
+ DC 1 V
+ DC 1 V
+ DC 3 V
Endress+Hauser
A0047536
