Flowmeter Proline 200 PROFINET with Ethernet-APL
1.
5.

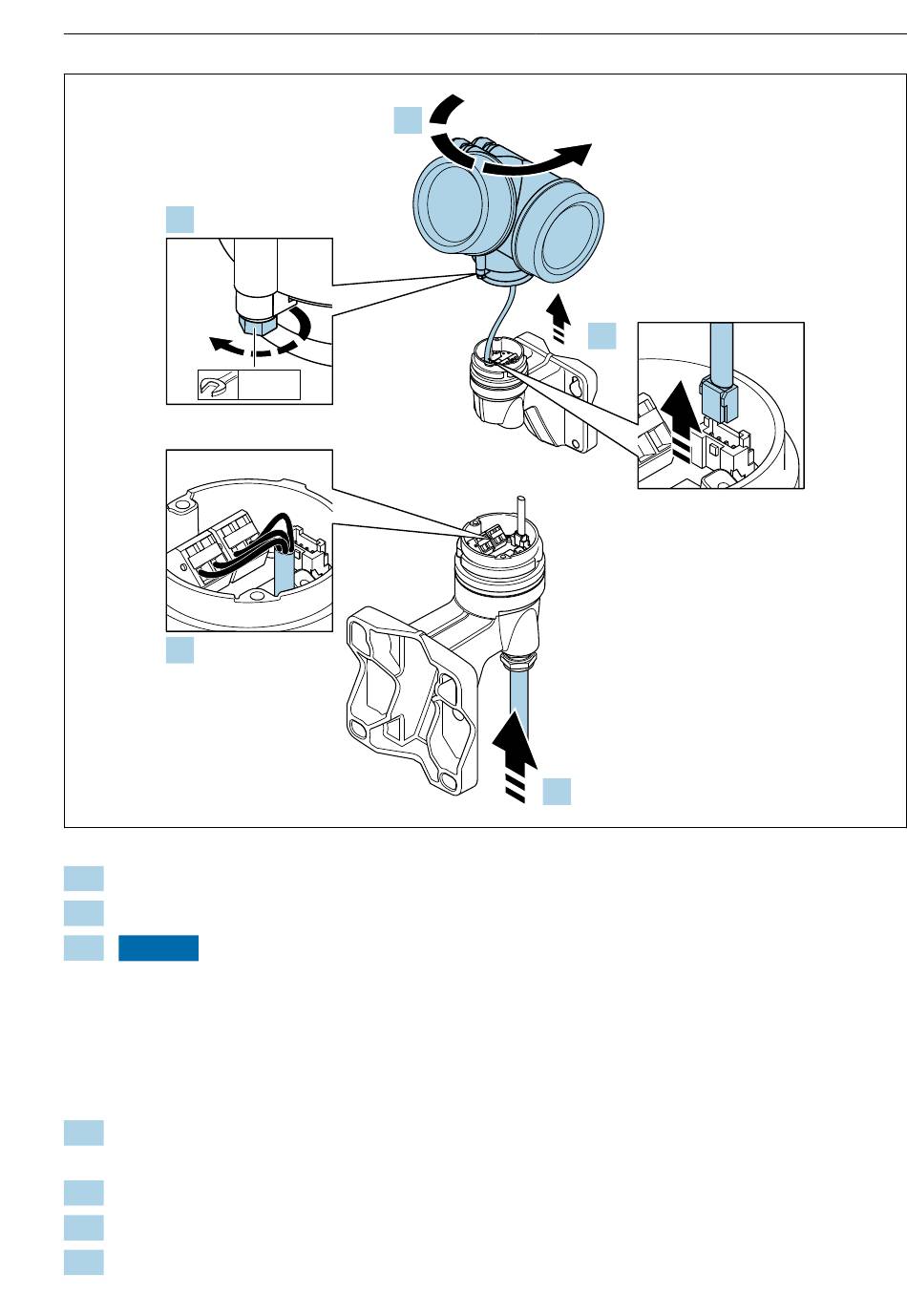

1. Loosen the securing clamp of the transmitter housing.
2. Turn the transmitter housing clockwise by approx. 20°.
3. NOTICE
The connection board of the wall housing is connected to the electronics board of
the transmitter via a signal cable!
‣
Pay attention to the signal cable when lifting the transmitter housing!
Lift the transmitter housing, plug the signal cable out of the connection board of the
wall holder and remove the transmitter housing.
4. Release the cable gland and insert the connecting cable (use the shorter stripped end of
the connecting cable).
5. Wire the connecting cable →  3,  20.
6. Reverse the removal procedure to reassemble the transmitter housing.
7. Firmly tighten the cable gland.
