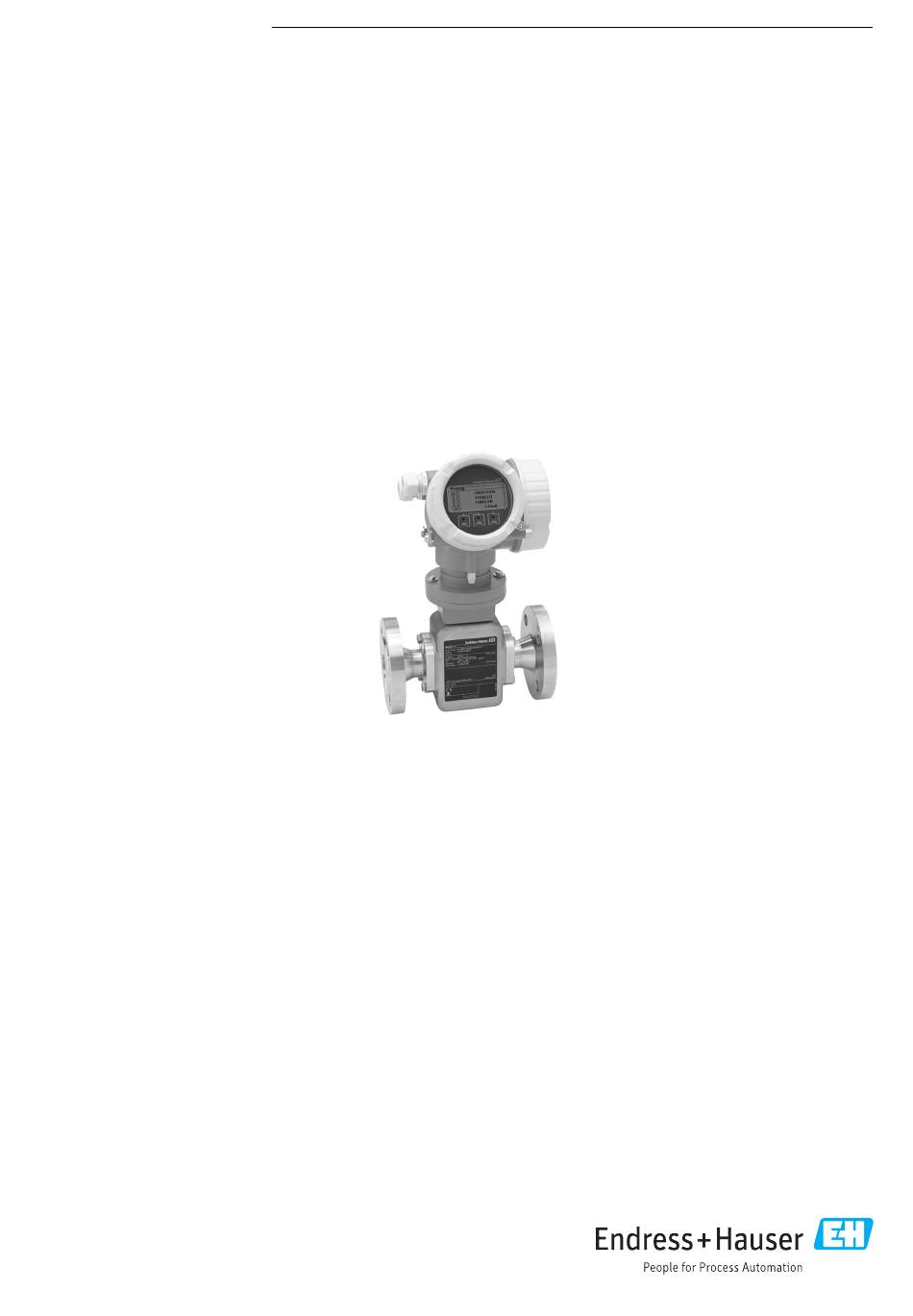

TI01061D/06/EN/05.17
71372370
The measuring device for smallest flow rates with genuine two-wire
technology
Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic
applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Products
Technical Information
Proline Promag H 200
Electromagnetic flowmeter
Solutions
Your benefits
• Flexible installation concept – numerous hygienic process
connections
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection
compartment
• Safe operation – no need to open the device due to display
with touch control, background lighting
• Integrated verification – Heartbeat Technology™
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promag H 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Proline Promag H 200

Summary of Contents for Endress+Hauser Proline Promag H 200

  • Page 1 Products Solutions Services TI01061D/06/EN/05.17 71372370 Technical Information Proline Promag H 200 Electromagnetic flowmeter The measuring device for smallest flow rates with genuine two-wire technology Application Your benefits • The measuring principle is virtually independent of pressure, • Flexible installation concept – numerous hygienic process...

  • Page 2: Table Of Contents

    Proline Promag H 200 Table of contents Document information ..... . . 3 Process ........30 Symbols used .

  • Page 3: Document Information

    Proline Promag H 200 Document information Symbols used Electrical symbols Symbol Meaning Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
  • Page 4 Proline Promag H 200 A0017035 Induced voltage Magnetic induction (magnetic field) Electrode spacing Current Flow velocity In the electromagnetic measuring principle, the flowing medium is the moving conductor. The voltage induced (U ) is proportional to the flow velocity (v) and is supplied to the amplifier by means of two measuring electrodes.

  • Page 5: Measuring System

    Proline Promag H 200 Measuring system The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Transmitter Promag 200 Materials: Aluminum, AlSi10Mg, coated Configuration: • External operation via four-line, illuminated local display with touch control and guided menus ("Make-it-run"...

  • Page 6: Operable Flow Range

    Proline Promag H 200 Nominal Recommended Factory settings diameter flow Full scale value current Min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)

  • Page 7: Signal On Alarm

    Proline Promag H 200 Voltage drop • For ≤ 2 mA: 2 V • For 10 mA: 8 V Residual current ≤ 0.05 mA Pulse output Pulse width Adjustable: 5 to 2 000 ms Maximum pulse rate 100 Impulse/s Pulse value...
  • Page 8 Proline Promag H 200 Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • 0 Hz • Defined value: 0 to 1 250 Hz Switch output...

  • Page 9: Load

    Proline Promag H 200 Load Load for current output: 0 to 500 Ω, depending on the external supply voltage of the power supply unit Calculation of the maximum load Depending on the supply voltage of the power supply unit (U...
  • Page 10 Proline Promag H 200 Order code for "Output" Output type Safety-related values Option G PROFIBUS PA = DC 32 V = 250 V = 0.88 W Pulse/frequency/switch output = DC 35 V = 250 V = 1 W Internal circuit limited by R = 760.5 Ω...
  • Page 11 Proline Promag H 200 Order code for "Output" Output type Safety-related values Option G PROFIBUS PA = DC 32 V = 250 V = 0.88 W Pulse/frequency/switch output = DC 35 V = 250 V = 1 W Internal circuit limited by R = 760.5 Ω...
  • Page 12 Proline Promag H 200 Type of protection Ex ic Order code for "Output" Output type Intrinsically safe values Option A 4-20mA HART = DC 35 V = n.a. = 1 W = 0 μH = 5 nF Option B 4-20mA HART = DC 35 V = n.a.

  • Page 13: Low Flow Cut Off

    Proline Promag H 200 Order code for "Output" Output type Intrinsically safe values Option E FOUNDATION Fieldbus STANDARD FISCO = 30 V = 17.5 V = 300 mA = 550 mA = 1.2 W = 5.5 W = 10 µH = 10 µH...
  • Page 14 Proline Promag H 200 DD revision Information and files under: • www.endress.com CFF revision • www.fieldbus.org Device Tester Version (ITK 6.1.1 version) ITK Test Campaign Number IT094200 Link Master capability (LAS) Choice of "Link Master" and "Basic Device" Factory setting: Basic Device...
  • Page 15 Proline Promag H 200 Block Contents Output values Expert Information Parameters that provide information about the No output values Transducer Block state of the device. (TRDEXPIN) Service Sensor Parameters that can only be accessed by Endress No output values Transducer Block +Hauser Service.
  • Page 16 Proline Promag H 200 Block Number Contents Process variables (Channel) blocks Multiple Digital This Block (standard functionality) receives Channel_DO (122) Output Block several discrete values and makes them • Value 1: Reset totalizer 1 (MDO) available for other blocks at the output.

  • Page 17: Power Supply

    Proline Promag H 200 Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate • PROFIBUS upload/download Reading and writing parameters is up to ten times faster with PROFIBUS upload/download • Condensed status...

  • Page 18: Pin Assignment, Device Plug

    For device version with SD03 local display: The terminal voltage must be increased by DC 0.5 V if backlighting is used. For information about the load see →  9 Various power supply units can be ordered from Endress+Hauser: see "Accessories" section →  69 For information on the Ex connection values →  9...

  • Page 19: Current Consumption

    Proline Promag H 200 Order code for "Output" Maximum power consumption Option E: FOUNDATION Fieldbus, pulse/ • Operation with output 1: 576 mW frequency/switch output • Operation with output 1 and 2: 2 576 mW Option G: PROFIBUS PA, pulse/frequency/ •...
  • Page 20 Proline Promag H 200 Connection examples Current output 4-20 mA HART 4...20 mA A0015511  1 Connection example for 4-20 mA HART current output (passive) Automation system with current input (e.g. PLC) Active barrier for power supply with integrated resistor for HART communication (≥ 250 Ω)(e.g. RN221N) Connection for HART operating devices →...
  • Page 21 Proline Promag H 200 PROFIBUS-PA A0019004  4 Connection example for PROFIBUS-PA Control system (e.g. PLC) Segment coupler PROFIBUS DP/PA Cable shield T-box Measuring device Local grounding Bus terminator Potential matching line Endress+Hauser...
  • Page 22 Proline Promag H 200 FOUNDATION Fieldbus A0019004  5 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield T-box Measuring device Local grounding Bus terminator Potential matching line HART input 4...20 mA – –...

  • Page 23: Potential Equalization

    • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material used for the electrodes, as otherwise there is the danger that the electrodes could be destroyed by electrochemical corrosion! •...

  • Page 24: Terminals

    Proline Promag H 200 Potential equalization via grounding electrodes on process connection A0017293 Hexagonal-headed bolts of process connection Integrated grounding electrodes O-ring seal Sensor Terminals • For device version without integrated overvoltage protection: plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm (20 to 14 AWG) •...

  • Page 25: Overvoltage Protection

    Proline Promag H 200 PROFIBUS PA Twisted, shielded two-wire cable. Cable type A is recommended. For further information on planning and installing PROFIBUS PA networks see: • Operating Instructions "PROFIBUS DP/PA: Guidelines for planning and commissioning" (BA00034S) • PNO Directive 2.092 "PROFIBUS PA User and Installation Guideline"...

  • Page 26: Repeatability

    Proline Promag H 200 0.5 % 10 [m/s] 32 [ft/s] A0003200  7 Maximum measured error in % o.r. Accuracy of outputs The outputs have the following base accuracy specifications. Current output Accuracy ±10 µA Pulse/frequency output o.r. = of reading Accuracy Max.

  • Page 27: Mounting Location

    Proline Promag H 200 Mounting location A0023343 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 2 × DN To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...

  • Page 28: Inlet And Outlet Runs

    Proline Promag H 200 The measuring device also offers the empty pipe detection function to detect partially filled measuring pipes in the event of outgassing fluids or variable process pressures. Vertical A0015591 Optimum for self-emptying pipe systems and for use in conjunction with empty pipe detection.

  • Page 29: Special Mounting Instructions

    • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions. • Avoid direct exposure to weather conditions. Weather protection covers can be ordered from Endress+Hauser: see "Accessories" section →  67 Temperature tables...

  • Page 30: Storage Temperature

    Proline Promag H 200 SI units [°C] [85 °C] [100 °C] [135 °C] [200 °C] [300 °C] [450 °C] – – The following applies for Basic specification, Position 3 (Output) = A, B, E, G: P = 0.85 W US units [°F]...

  • Page 31: Conductivity

    Proline Promag H 200 [°F] [°C] 40 60 80 100 120 140 160 [°C] [°F] A0019805 Ambient temperature Medium temperature Hatched area: harsh environment only up to +130 °C (+266 °F) Conductivity ≥ 20 μS/cm for liquids in general The following pressure-temperature ratings refer to the entire device and not just the process...
  • Page 32 Proline Promag H 200 Process connection: flange according to EN 1092-1 (DIN 2501), adhesive sleeve [psi] [bar] PN 40 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0021191-EN  10 Process connection material: stainless steel, 1.4404 (F316L)
  • Page 33 Proline Promag H 200 Process connection: flange according to ASME B16.5 [psi] [bar] Cl 150 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0021192-EN  13 Process connection material: stainless steel, 1.4404 (F316L) [psi] [bar] Cl 150 -40 -20 0 20 40 60 80 100120140160180 [°C]...

  • Page 34: Pressure Tightness

    Proline Promag H 200 [psi] [bar] -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0021233-EN  16 Process connection material: PVDF Process connections with aseptic molded seal, DN 2 to 25 (1/12 to 1") Process connection: weld-in nipple according to EN 10357 (DIN 11850), ASME BPE, ISO 2037; Clamp according to ISO 2852, DIN 32676, L14 AM7;...

  • Page 35: System Pressure

    Proline Promag H 200 System pressure A0015594 Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner. Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.
  • Page 36 Proline Promag H 200 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 4 × 2.25 4 × 4 × 4 × 4 × For version without local display: values - 7 mm For version with overvoltage protection (OVP): values + 8 mm For version without local display: values - 10 mm Total length (L) depends on the process connections.
  • Page 37 Proline Promag H 200 Flanges Flanges with aseptic molded seal A0015627  20 Detail X: Asymmetrical process connection; the part shown in gray is provided by the supplier. Flange DIN 11864-2, aseptic female, Form A 1.4404 (316L) Order code for "Process connection", option DES...
  • Page 38 Proline Promag H 200 Flange according to EN 1092-1 (DIN 2501), Form B: PN 40 1.4404 (316L) Order code for "Process connection", option D5S [mm] [mm] [mm] [mm] [mm] [mm] [mm] 4 × ⌀14 28.5 198.4 Surface roughness: R ≤ 1.6 µm DN 2 to 8 with DN 15 flanges as standard Flange according to ASME B16.5: Class 150...
  • Page 39 Proline Promag H 200 Lap joint flange according to EN 1092-1 (DIN 2501): PN 16 PVDF Order code for "Process connection", option D3P [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 4 x ⌀14 14.5 17.3 4 x ⌀14 14.5...
  • Page 40 Proline Promag H 200 Lap joint flange according to JIS B2220: 10K PVDF Order code for "Process connection", option N3P [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 4 × ⌀ 15.7 35.1 4 × ⌀ 15.7 35.1...
  • Page 41 Proline Promag H 200 Welding nipple according to ISO 2037 1.4404 (316L) Order code for "Process connection", option IAS Suitable for pipe ISO 2037 [mm] [mm] [mm] [mm] [mm] 2 to 8 12.7 × 1.65 118.2 19.05 × 1.65 118.2 25.4 ×...
  • Page 42 Proline Promag H 200 Welding nipple according to DIN EN ISO 1127 1.4404 (316L) Order code for "Process connection", option D1S Suitable for pipe DIN EN ISO 1127 [mm] [mm] [mm] [mm] [mm] 2 to 8 13.5 × 1.6 13.5 10.3...
  • Page 43 Proline Promag H 200 Tri-Clamp 1.4404 (316L) Order code for "Process connection", option FAS Suitable for pipe as per ASME BPE [mm] [mm] [mm] [mm] [mm] 2 to 8 12.7 × 1.65 19.1 × 1.65 15.8 25.4 × 1.65 50.4 22.1...
  • Page 44 Proline Promag H 200 Coupling DIN 11864-1, aseptic threaded hygienic connection, Form A 1.4404 (316L) Order code for "Process connection", option DDS Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm/in] [mm] [mm] 2 to 8 Pipe 13 × 1.5 (DN 10) Rd 28 ×...
  • Page 45 Proline Promag H 200 Internal thread according to ISO 228/DIN 2999 1.4404 (316L) Order code for "Process connection", option I3S [mm] [mm/in] [mm] [mm] Rp 17 × 1 27.2 Surface roughness: R ≤ 1.6 µm Hose adapter Hose adapter with O-ring seal...
  • Page 46 Proline Promag H 200 Adhesive sleeve Order code for "Process connection", options O1V, O2V Suitable for pipe [mm] [mm] / [in] [mm] [mm] [mm] 2 to 8 20 × 2 (DIN 8062) 20.2 ½ 27.3 21.5 20 × 2 (DIN 8062) 20.2...
  • Page 47 Proline Promag H 200 Tri-Clamp 1.4404 (316L) Order code: DKH**-HF** Suitable for pipe in accordance with ASME BPE (reduction) [mm] [mm] [mm] [mm] [mm] Pipe ODT 1 50.4 22.1 Surface roughness: R ≤ 0.8 µm, optional ≤ 0.38 µm Please note the internal diameters of the measuring tube and process connection (B) when cleaning with pigs.

  • Page 48: Dimensions In Us Units

    Proline Promag H 200 Grounding rings A0017673 For lap joint flange made of PVDF and PVC adhesive sleeve 1.4435 (316L), Alloy C22, tantalum Order code: DK5HR-**** [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 17.6 33.9...
  • Page 49 Proline Promag H 200 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [mm] [in] 4 × ½ 6.38 4.02 2.36 6.50 2.95 3.54 1.69 10.39 1.88 12.27 3.39 0.63 4 × 6.38 4.02 2.36 6.50 2.95 3.54...
  • Page 50 Proline Promag H 200 Flanges Flanges with O-ring seal A0015621 Flange according to ASME B16.5: Class 150 1.4404 (316L) Order code for "Process connection", option A1S [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 3.50 2.38 4 × ⌀ 0.62 0.44...
  • Page 51 Proline Promag H 200 Lap joint flange according to ASME B16.5: Class 150 PVDF Order code for "Process connection", option A4P [in] [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 3.74 2.36 4 × ⌀ 0.62 0.59 1.38 0.63...
  • Page 52 Proline Promag H 200 Welding nipple with O-ring seal A0027510 Welding nipple according to ODT/SMS 1.4404 (316L) Order code for "Process connection", option A2S Suitable for pipe ODT/SMS [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 0.53 × 0.09 0.53 0.35...
  • Page 53 Proline Promag H 200 Clamp according to ISO 2852, Fig. 2 1.4404 (316L) Order code for "Process connection", option IBS Suitable for pipe ISO 2037 [in] [in] Clamp ISO 2852 [in] [in] [in] [in] 0.96 × 0.06 2.00 0.89 6.87 Surface roughness: R ≤...
  • Page 54 Proline Promag H 200 Threaded adapter with O-ring seal A0027509 External thread according to ISO 228/DIN 2999 1.4404 (316L) Order code for "Process connection", option I2S Suitable for internal thread ISO 228 / DIN 2999 [in] [in] [in] [in] [in] ¹⁄₁₂...
  • Page 55 Proline Promag H 200 Adhesive sleeve Order code for "Process connection", options O1V, O2V Suitable for pipe [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ ½ 1.07 0.85 6.43 Surface roughness: R ≤ 63 µin The required grounding rings can be ordered as accessories (order code: DK5HR-****).
  • Page 56 Proline Promag H 200 Tri-Clamp 1.4404 (316L) Order code: DKH**-HF** Suitable for pipe in accordance with ASME BPE (reduction) [in] [in] [in] [in] [in] ½ Pipe ODT 1 0.87 5.63 Surface roughness: R ≤ 31.5 µin, optional ≤ 15 µin Please note the internal diameters of the measuring tube and process connection (B) when cleaning with pigs.

  • Page 57: Weight

    Proline Promag H 200 Grounding rings A0017673 For lap joint flange made of PVDF and PVC adhesive sleeve 1.4435 (316L), Alloy C22, tantalum Order code: DK5HR-**** [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 0.35 0.87...

  • Page 58: Materials

    Proline Promag H 200 Nominal diameter Pressure rating Process connection internal diameter EN (DIN) [mm] [in] [bar] [mm] [in] – PN 16/40 22.6 0.89 – PN 16/40 26.0 1.02 Depending on process connection and seals used Materials Transmitter housing • Order code for "Housing", option C "Compact, aluminum coated": Aluminum, AlSi10Mg, coated •...

  • Page 59: Fitted Electrodes

    Proline Promag H 200 Sensor housing Stainless steel 1.4301 (304) Measuring tubes Stainless steel 1.4301 (304) Liner PFA (USP Class VI, FDA 21 CFR 177.1550, 3A) Process connections • Stainless steel, 1.4404 (F316L) • PVDF • PVC adhesive sleeve Electrodes •...

  • Page 60: Operability

    Proline Promag H 200 Liner with PFA: ≤ 0.4 µm (15.7 µin) (All data relate to parts in contact with fluid) Stainless steel process connections: • With O-ring seal: ≤ 1.6 µm (63 µin) • With aseptic seal: ≤ 0.8 µm (31.5 µin)

  • Page 61: Remote Operation

    Proline Promag H 200 Operating elements • With order code for "Display; operation", option C: Local operation with 3 push buttons: • With order code for "Display; operation", option E: External operation via touch control; 3 optical keys: • Operating elements also accessible in various hazardous areas Additional functionality •...
  • Page 62 Proline Promag H 200 Via PROFIBUS PA network This communication interface is available in device versions with PROFIBUS PA. A0019013  26 Options for remote operation via PROFIBUS PA network Automation system Segment coupler PROFIBUS DP/PA Computer with PROFIBUS network card...

  • Page 63: Service Interface

    Power supply FF-H1 network T-box Measuring device Service interface Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" Endress+Hauser...

  • Page 64: Certificates And Approvals

    Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 65: Sanitary Compatibility

    Proline Promag H 200 Category Type of protection Class I Division 2 Groups ABCD NI (Non-incendive version), NIFW parameter Entity and NIFW parameter in accordance with Control Drawings • 3A approval and EHEDG-certified Sanitary compatibility • Seals → in conformity with FDA (apart from Kalrez seals) Functional safety The measuring device can be used for flow monitoring systems (min., max., range) up to SIL 2...

  • Page 66: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 67: Accessories

    Proline Promag H 200 Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 68: Communication-Specific Accessories

     For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop.  For details, see the "Technical Information" document TI405C/07...

  • Page 69: System Components

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...

  • Page 70: Supplementary Device-Dependent Documentation

    Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany FOUNDATION Fieldbus Registration-pending trademark of the Fieldbus Foundation, Austin, Texas, USA Applicator ® , FieldCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
  • Page 72 www.addresses.endress.com...
