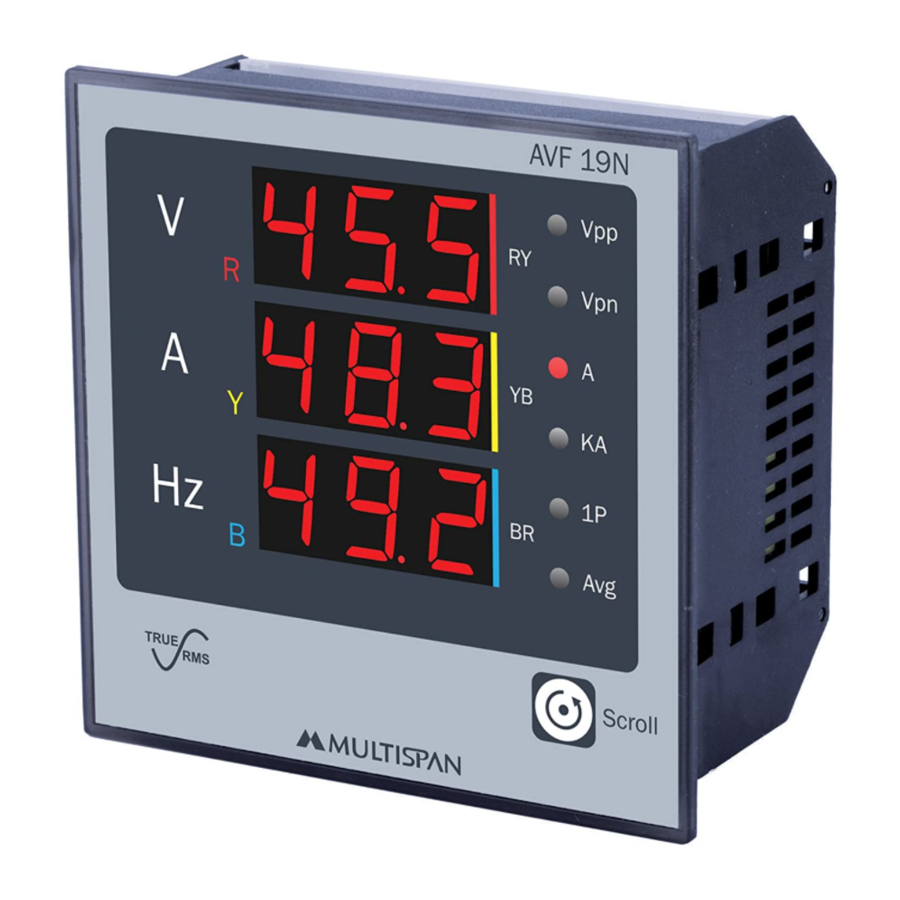

MULTISPAN AVF-19N Operating Manual

OPERATING MANUAL
3 Phase Panel Meter
AVF-19N
WIRING CONNECTION MODE
Press key &
release to select
connection type from
3P/4W,3P/3W,1P/2W
AVF-19N
Model
Display
Size (mm)
Panel Cutout
Voltage Input
Current Input
Power Supply
Wiring
System
Protection
Level
(As per request)
Operating
Temperature
Relative
Humidity
Press
seconds with power on the instrument.
AVF 19N
V
C o n
V
V
L1
3 P h
A
A
KA
L2
4 w 1P
Hz
Avg
L3
V
L1
A
L2
Hz
L3
Page - 1
3 Digit/Line 7 seg 0.56",RED LED Display
96(H) X 96 (W) X 50 (D) mm
50 To 500V AC P-P CAT III
30 To 300V AC P-N CAT III
0.5 To 5Amp AC direct or C.T
Selectable upto 6000/5 ratio
230V AC,50 Hz, Approx 3VA
3Ph-4W, 3Ph-3W, 1Ph-2W
IP-65 (Front side) As per IS/IEC 60529 : 2001
Up to 95% RH Non Condensing
Scroll Key for 5
LL
V
LN
L1
A
L2
Hz
L3
Scroll
AVF 19N
V
C o n LL
V
LN
1 p h
A
KA
2 w
1P
Avg
Scroll
AVF-19N
92 X 92 mm
0°C To 55°C
AVF 19N
V
LL
C o n
V
LN
3 P h
A
KA
3 w 1P
Avg
Scroll
To save changes,
power off the Instrument
