KEYPAD
AP1
USER MANUAL

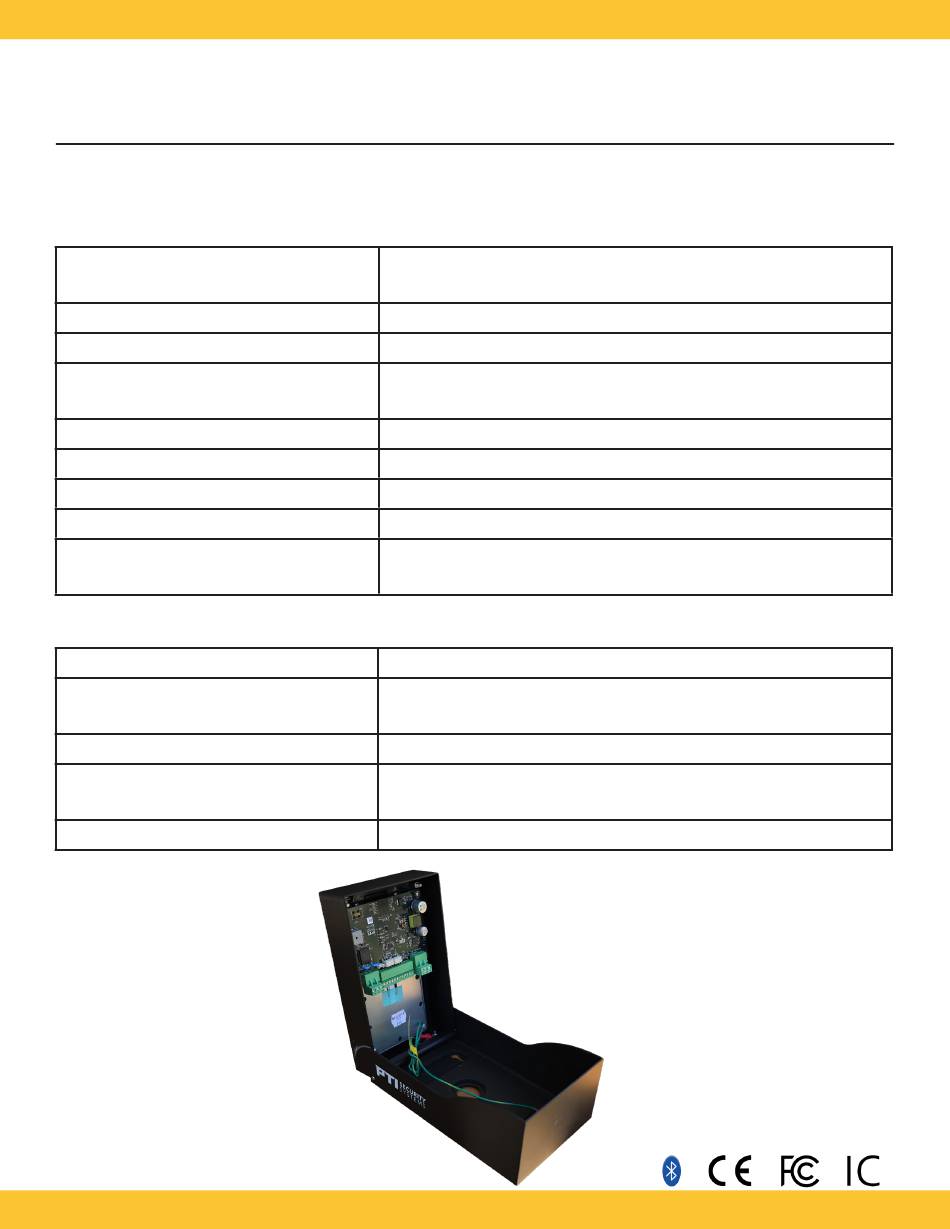

| SPECIFICATIONS
Electrical Specifications:
Input Voltage:
Power Consumption:
Communication:
Inputs:
Outputs:
Operating Temperature:
Humidity:
Ingress Protection
Heater (optional)
Regulatory:
Bluetooth SIG
FCC ID
UL294
IC ID
CE
Page - 4
12 to 48V DC supplied by a Class 2 current limited
source
< 2.5W estimate (does not include keypad heater)
2-wire RS485 at 9600 baud
2 with optional supervision using 1K resistors in
series, parallel or both.
2 relays rated at 2 A @ 30 Vdc resistive
-40 to +85 C (-40 to 185F)
TBD
IP65 (PENDING) – requires proper mounting.
14 VDC max power input, 10W min output
capability.
Declaration ID: D067838
2BFJY-1000239
2BFJY-1000260
Non-heated AP1: 32223-1000239
Heated AP1: 32223-1000260
