KEYPAD
AP1
USER MANUAL
| APPLICATIONS

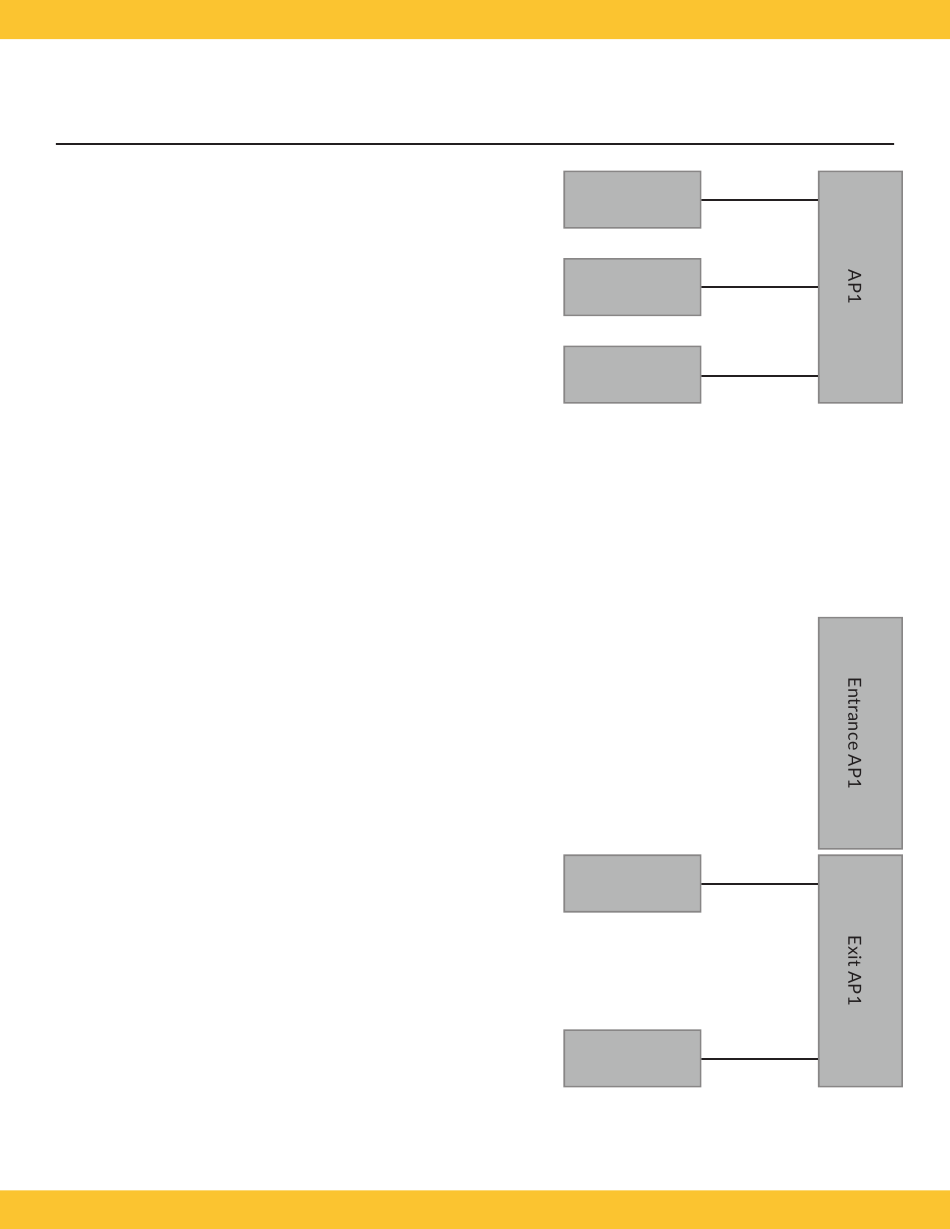

Single Keypad Gate Access
In this application a single keypad is used to
control ingress into the facility. A loop detector
is used for egress connected to Input 2. Relay 1 is
used to trigger the gate.
Optionally, input 1 can be used to monitor the
gate.
In this application Inputs 1 and 2 should be set for
monitoring door or gate and RTE respectively.
Dual Keypad / Maximum Security Gate Access
This application is for gate access with maximum
security. The gate is only triggered from Relay 1
of the Exit keypad. Opening the entrance keypad
will not allow access to the gate control.
The controller must activate the relay on the exit
AP1 for ingress into the facility.
Optionally, input 1 can be used to monitor the
gate.
In this application Input 1 of the Exit AP1 should
be set for monitoring door or gate.
Page - 12
In 1
Gate Contact
(optional)
In 2
Vehicle Loop
Detector
Relay 1
Gate
Trigger
In 1
Gate Contact
(optional)
Relay 1
Gate
Trigger
