| APPLICATIONS
Door Control and Monitoring
This application is used to control and monitor
a door. Events, which can trigger alarms, will be
created when the door is forced open or held
open past the specified limit.
Relay 2 can be left unused or can be used to
drive a siren, door holder, door opener or shunt a
security alarm
In this application Inputs 1 and 2 should be set for
monitoring door or gate and RTE respectively.
Two Floor Elevator Control
In this application the AP1 is used to control
access to two floors by using the relays to enable
the floor button. The keypad can be mounted
inside the elevator cab.
Elevator access functionality must be
implemented in the system controller.

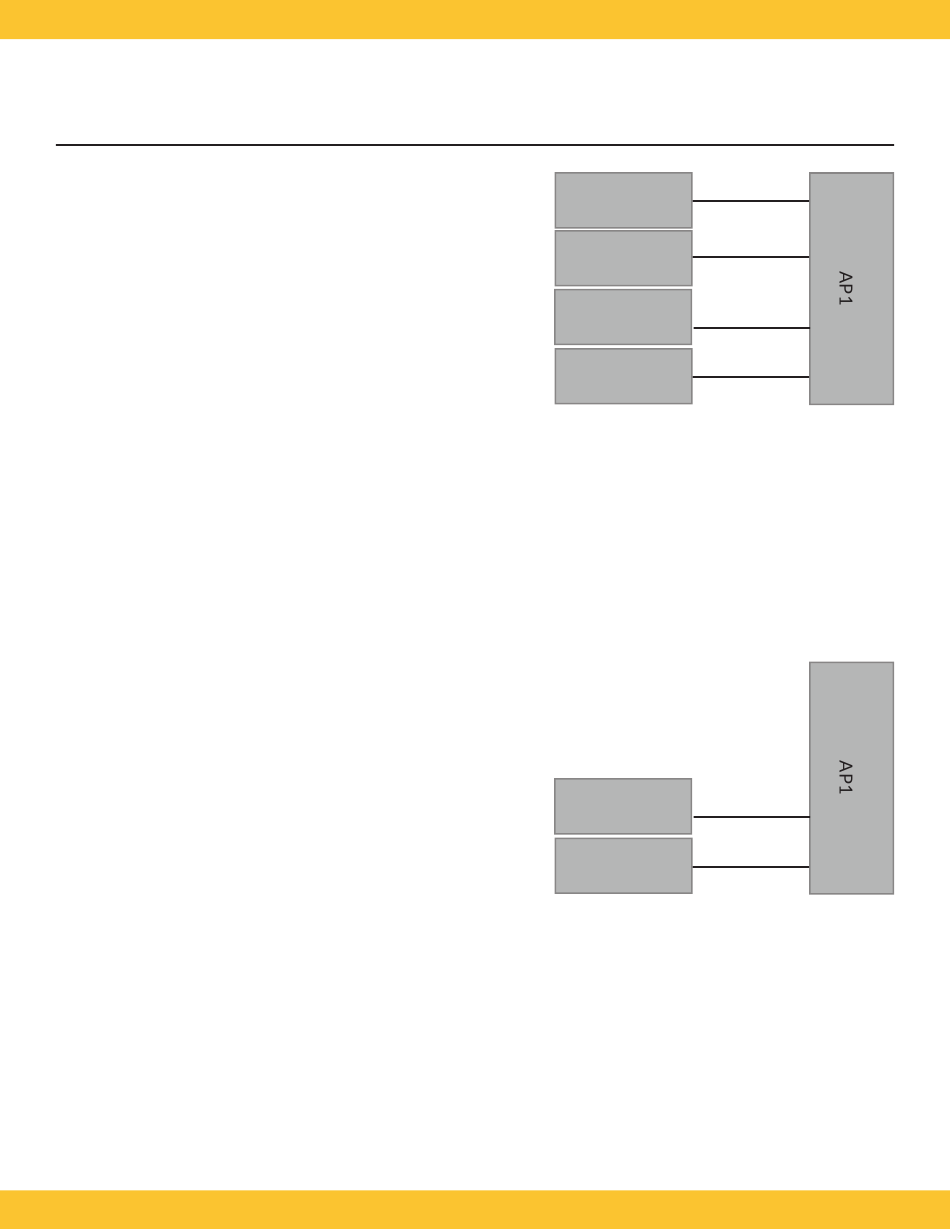

Door In 1
Contact
Req to Exit Button
or Motion Sensor
Door Strike or
Relay 1
Mag Lock
Siren/Door
Relay 2
Holder/Security
Alarm Shunt
Second Floor
Relay 1
Elevator Enable
Relay 2
Third Floor
Elevator Enable
In 2
