WaveLinx Wired

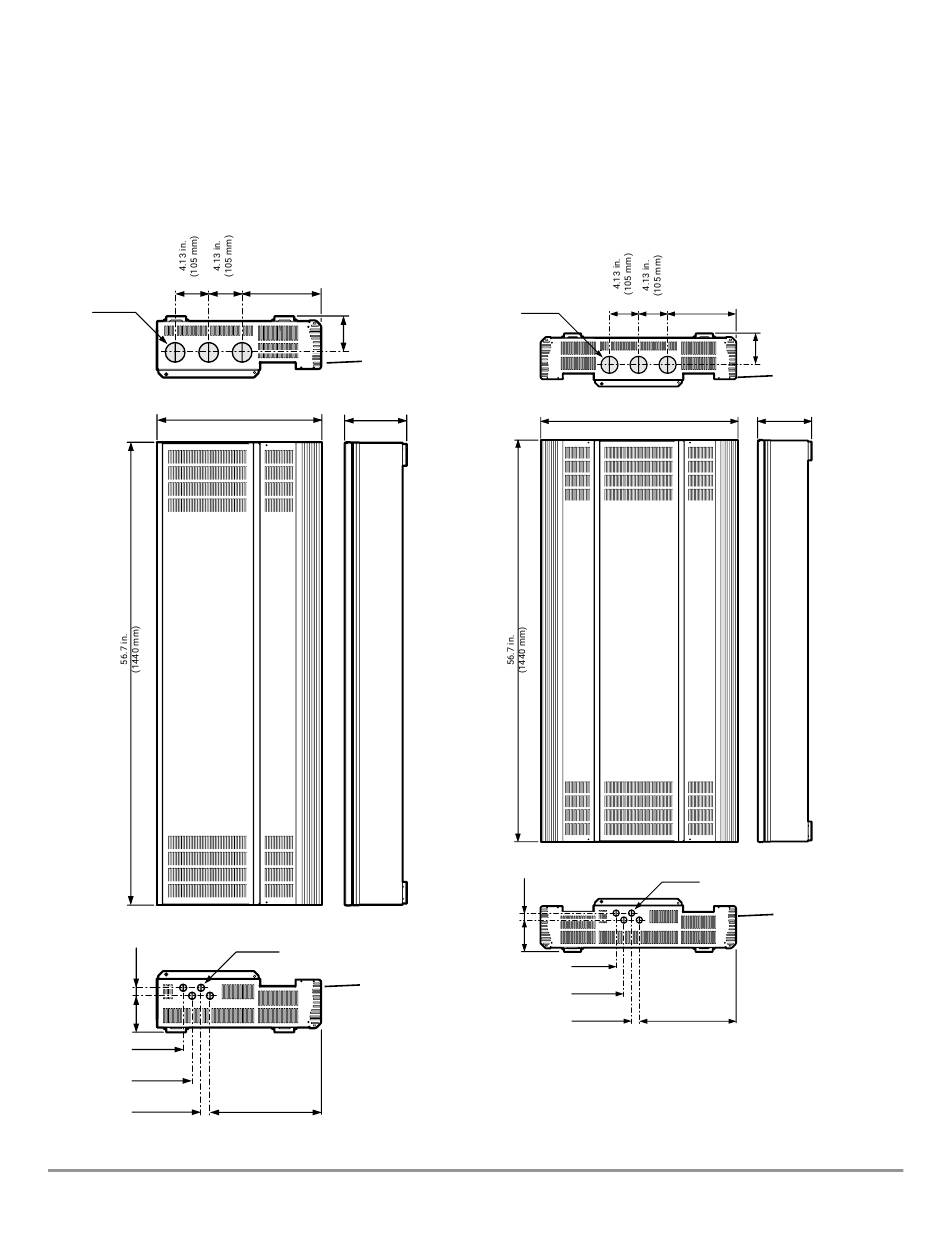

12 Circuit Cabinet
Weight
Packed: 160 lbs (72 Kg)
Unpacked: 132 lbs (60 Kg)
Ø 2.42 in.
61.5 mm
20.3 in.
(517 mm)
0.98 in.
(25 mm)
4.53 in.
(115 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
9850-000234-02 page 4
May 2024
9.78 in.
(248.5 mm)
4.45 in.
(113 mm)
Knockouts for Supply
and Load Wiring Only
7.6 in.
(193 mm)
Ø 0.89 in.
(22.5 mm)
Knockouts for Low
Voltage Control
Wiring Only
13.76 in.
(349.5 mm)
24 Circuit Cabinet
Weight
Packed (24): 220 lbs (100 Kg)
Unpacked (24): 200 lbs (90 Kg)
Ø 2.42 in.
61.5 mm
27.8 in.
(707 mm)
0.98 in.
(25 mm)
4.53 in.
(115 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
1.1 in.
(28 mm)
Universal Source Controller - Feed Thru
9.78 in.
(248.5 mm)
4.45 in. (113 mm)
Knockouts for Supply
and Load Wiring Only
7.6 in.
(193 mm)
Ø 0.89 in.
(22.5 mm)
Knockouts for Low
Voltage Control
Wiring Only
13.76 in.
(349.5 mm)
