Universal Source Controller - Feed Thru

Menu Navigation

Within the control panel menu system, use the following
buttons to navigate:
Press to select an item or to save
changes.
Press to enter an option or select an item.
ENT
Press to escape from an option and return to the
ESC
previous level.
The Asterisk will be used on some Scenes to
perform special functions.
The menu system is comprised of two main sections:
The Operation menu
Contains functions for users to operate the system.
Functions include: Output override, Timeclock functions,
Power data figures, etc.
The Configuration menu
Provides functions primarily used during initial
commissioning and subsequent fine tuning of the
installation by engineers.
To prevent unauthorized access, use the Password Manager
to configure four-digit passwords for the Operation and
Configuration menus.

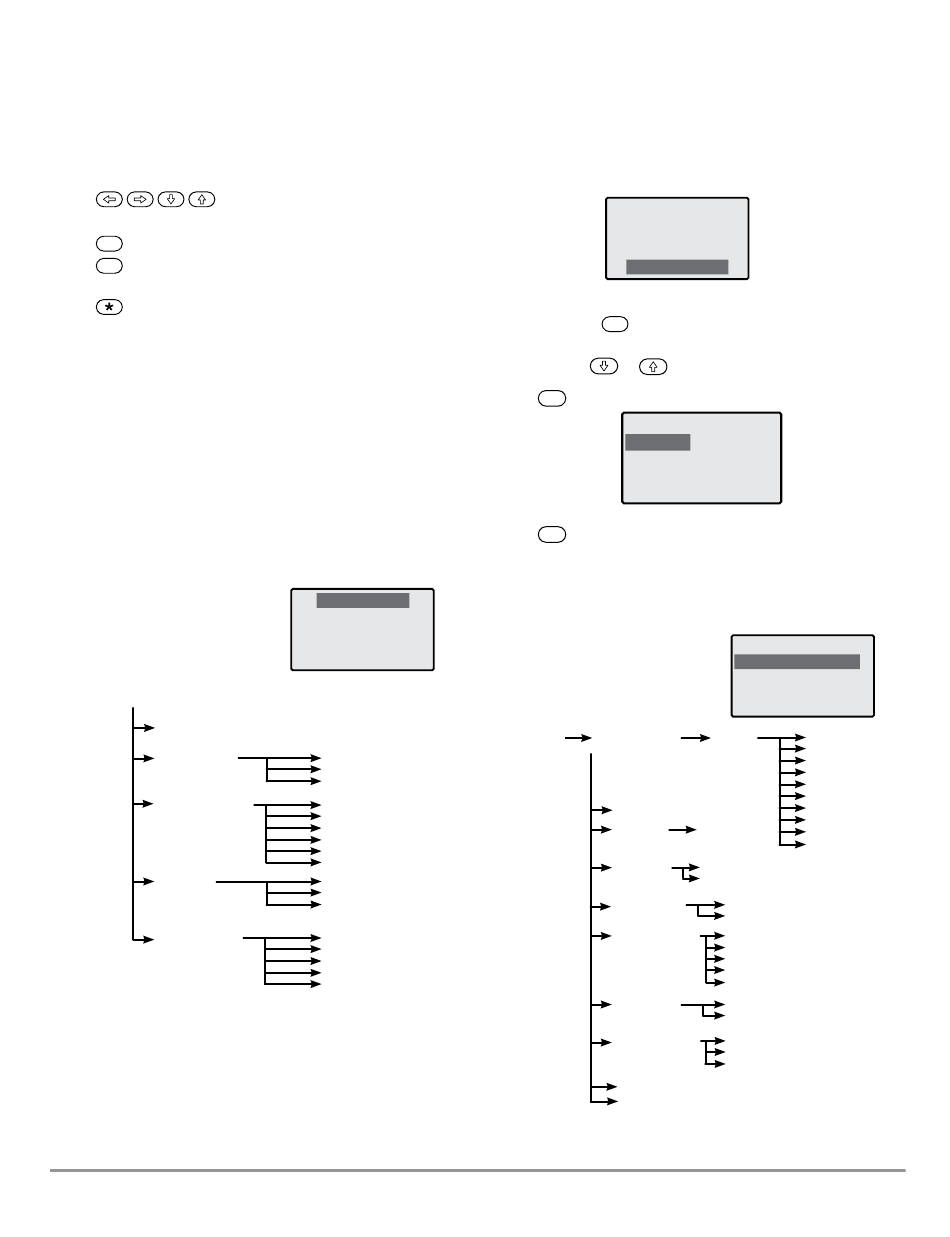

Operation Menu Layout
Operation
Help
Output Override
Timeclock Manager
Power Data
Communications
www.cooperlighting.com
Operation Menu
Help
Output Override
Timeclock Manager
Power Data
All Outputs
Each Output
Select Scene
Time & Date
Events
Coordinates
Daylight Saving
Timestamp Frequency
Enable/Disable
Total Power
Display by Phase
Display by Output
iCANnet OFF/ON
Ethernet OFF/ON
DMX OFF/ON
RS-485 OFF/ON
Contact Inputs OFF/ON
Accessing the Menus
During normal operation, the control panel screen shows
only the time, date and device number
Cooper Controls
21:56
August 14, 2008
Device 255 - 129
To Access the Menus
1. Press the button to display the Select Access Level
ENT
menu .
ð
2. Use the or buttons to highlight the required
menu (Operation or Configuration) and then press the
button to select.
ENT
Select Access Level
Operation
Configuration
Contact Cooper
3. If requested, enter the four-digit password and press the
button.
ENT
N ote: When the unit is supplied, there are initially no
passwords - see the section 'Configuring passwords'.
4. If the password is accepted, the chosen menu will be
displayed.
Configuration Menu Layout
Configuration Configure Output
Wallstation Wizard
Scene Edit
Emergency Scene
Edit
Contact Inputs
Ethernet Settings
DMX Options
Control Hierarchy
Password Manager
Restore Defaults
WaveLinx Wired
ð
Configuration Menu
Configure Outputs
Wallstation Wizard
Scene Edit
Emergency Scene Edit
Output X
Standard Type
Set Area/Zone
Power Curve
HF Curve
Min/Max
Stabilization
Relay Zero Cross
Air-Gap Isolation
Scene
Operation at Min
Setup Action
All Outputs
Output x xx%
Input 1
Input 2
IP Addr
IP Mask
Gateway
MAC
Restore Defaults
Output Mapping
Air-Gap Mode
iCAN Always
DMX Always
DMX When Present
