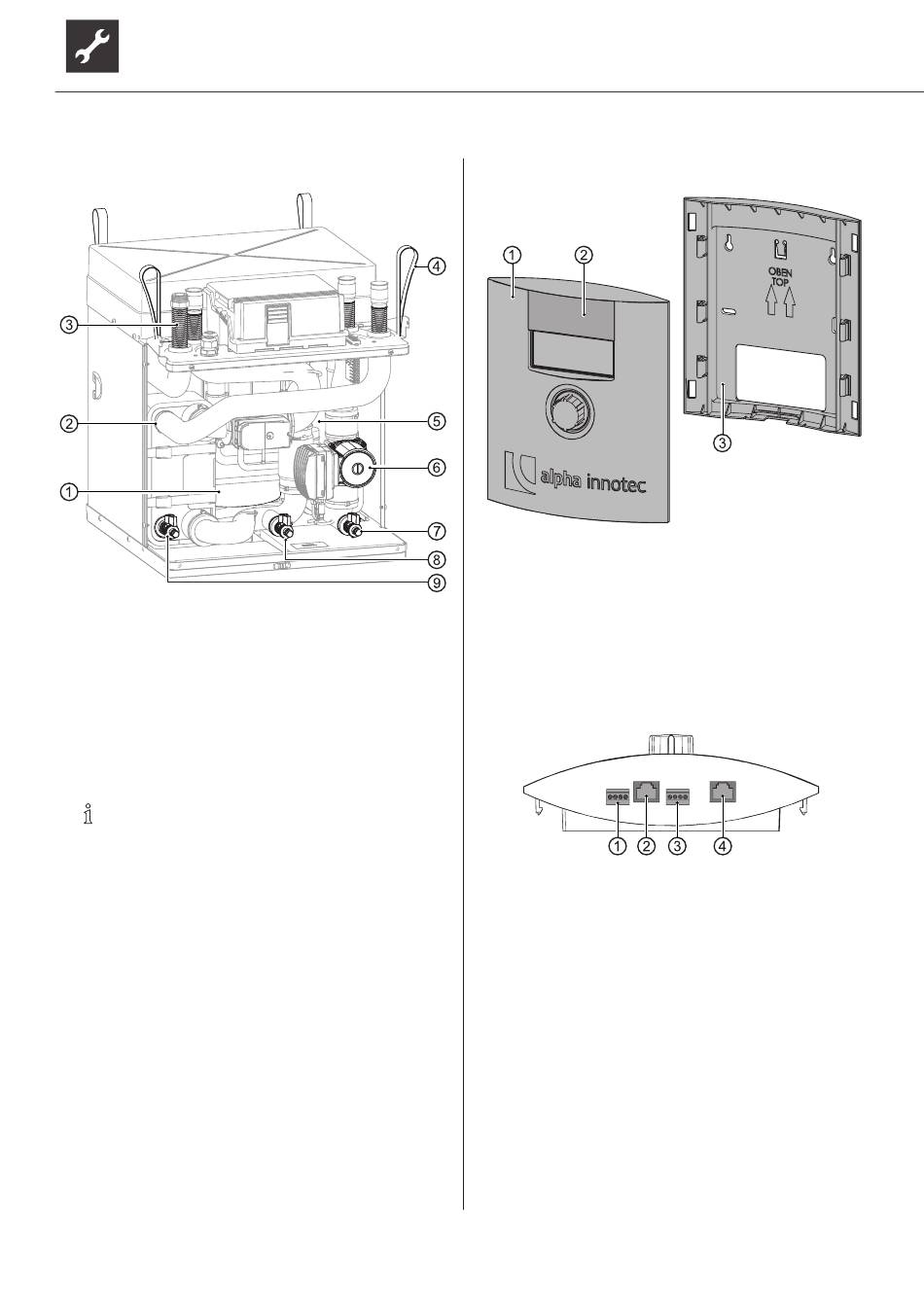

Module box – variant with cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
7 Heat source filling and drain tap
8 Heat source filling and drain tap
9 Heating filling and drain tap
NOTE
The hose connectors are not part of the
scope of delivery with all KFE ball valves.
8
Subject to change without notice | 83056700gUK – Translation of the original operating manual | ait-deutschland GmbH
Control unit
1 Control panel
2 Push up flap upstream of USB connection (for
qualified personnel for software updates and
for data logging)
3 Wall-mounted bracket (only necessary for
wall-mounted installation)
Underside of the control panel
2
1
1 Connection room control unit
RBE RS 485 (accessory)
2 RJ45 connection cable to the network link
3 Connection LIN bus to the regulator board
4 RJ45 connection not assigned

3.2 Accessories

The following accessories are available for the unit
through the manufacturer's local partner:
● Additional masking plate for the front cover panel,
if the control is mounted on the wall
● Domestic hot water tank
● Changeover valve, domestic hot water
3 4
