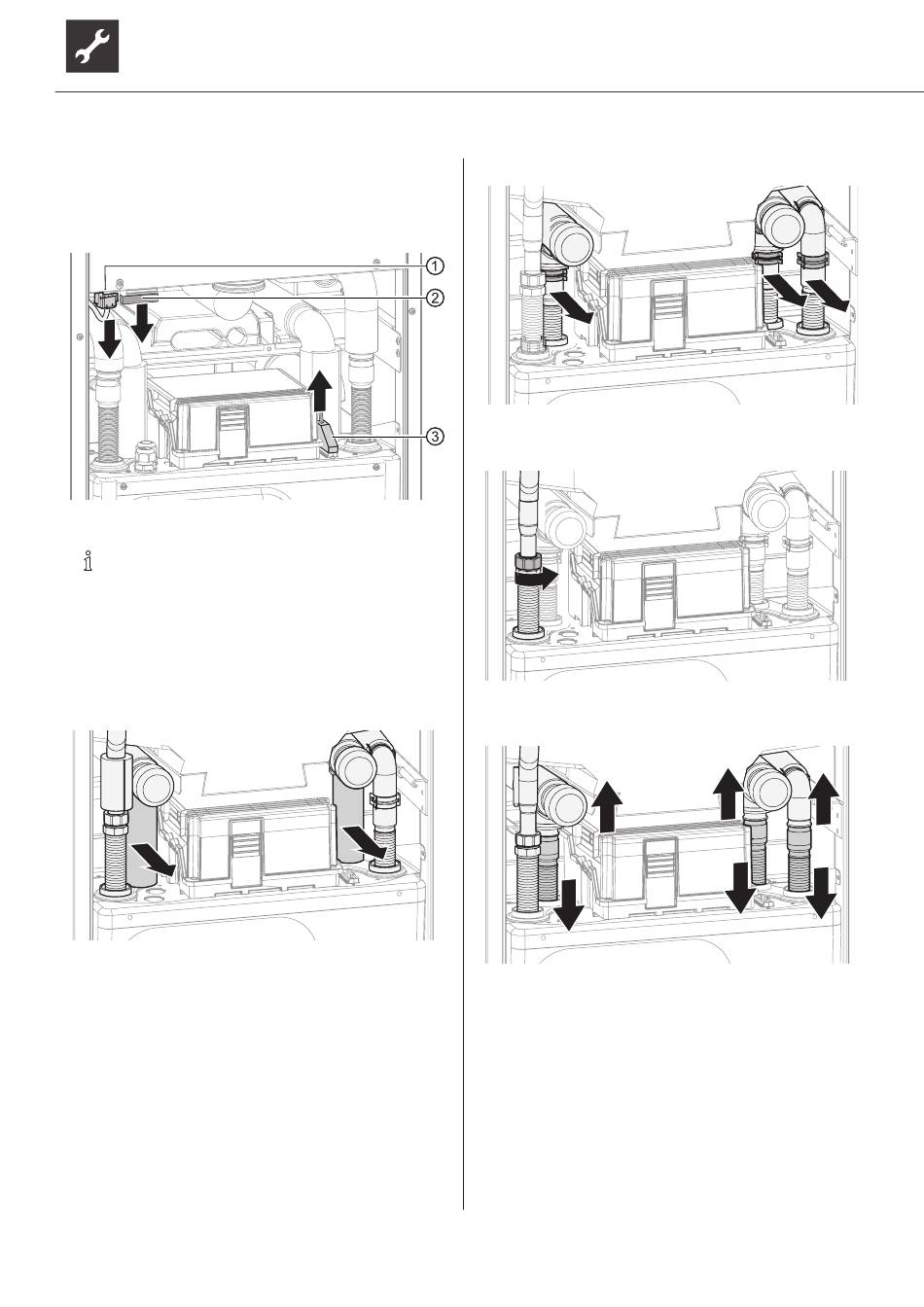

remove the control cabinet cover and undo the

connector from the inside

● Pull out the black rectangular connector (③) at

the top of the module box

NOTE

The following diagrams show the connec-

tions of units with up to 12 kW capacity. In

units with 14 kW capacity and higher all con-

nections are installed with clips and without

valves.

Remove the insulation on the hydraulic connec-

tions.

Subject to change without notice | 83056700gUK – Translation of the original operating manual | ait-deutschland GmbH

Remove 3 clips on the hydraulic connections.

Use spanner size SW 37 to unscrew the heating

flow.

10. Disconnect the hydraulic connections; to do this,

push the pipes apart as far as necessary.
