Alpha-InnoTec SWC Series Operating Manual page 11

Unpacking
NOTE
If the unit is not transported by a pallet truck:
Do not lift off the pallet until after unpacking
and dismantling the housing panels.
1. Remove plastic films. Ensure that you do not
damage the unit.
2. Dispose of the mounting bracket, transport and
packaging material in an environmentally friendly
way according to local regulations.
3. Remove the film from the plastic element of the
front panel in the place of installation.

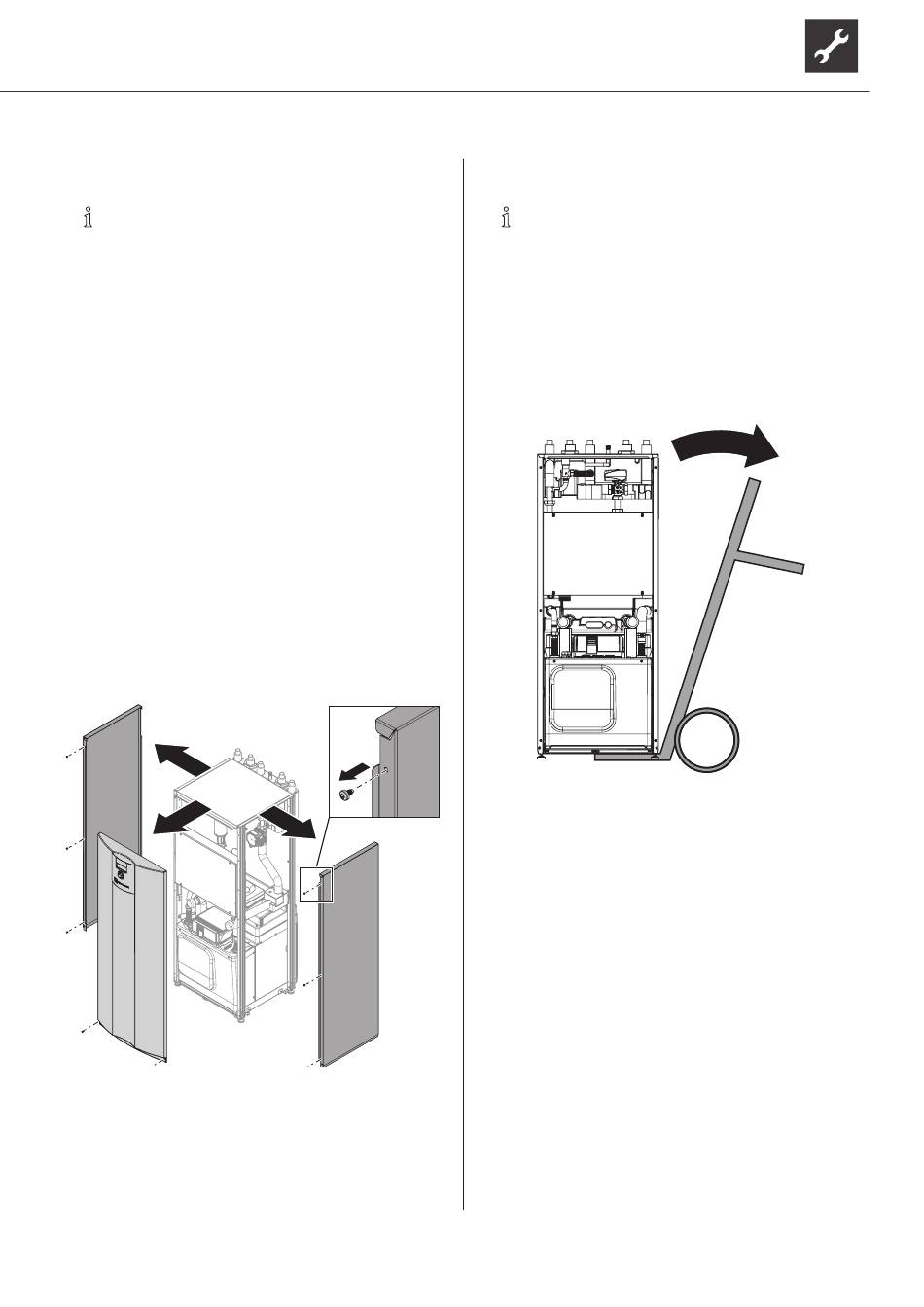

Dismantle housing panels for transport with
handcart or carrying the unit
Unit is unpacked ( "Unpacking", page 11).

To avoid damage to the housing panels:
1. Undo 2 screws at the bottom of the front panel.
Lift up the front panel and put down in safe place.
2. Undo 3 screws at the right panel.
Lift up the side panel and put down in safe place.
3. Undo 3 screws at the left panel.
Lift up the side panel and put down in safe place..
2.
1.
Subject to change without notice | 83056700gUK – Translation of the original operating manual | ait-deutschland GmbH
8x
3.
Transport with a handcart
NOTE
● If transporting with a handcart the module
box must be pushed in.
● The following figure with the handcart
shows transporting the unit on its left-hand
side; it can also be transported on its right-
hand side.
Housing panels are dismantled.

To avoid damage: On a handcart, load the unit on its
side only.
Transport unit on the handcart.
Carrying the unit
Housing panels are dismantled.

1. Dismantle module box ( "Dismantle the module
box", page 12) and carry it by the support lugs
to the place of installation.
2. Carry the housing with the unit components
separately to the place of installation.
11
