ELCOM REQ0 Y Series Operating And Assembly Instruction page 3

Circuit symbols and elements of the circuit
diagrams
Line power supply RMD
Power transformer
Door release
Door station audio
Wrapped wire pair for 2D video devices
(recommendation: white/yellow wire pair)
Unwrapped wire pair, for e.g. for door release
Figure 9: Door release connection on the door
station
Figure 10: Connection of door station with
manipulation-protected door release
Calling up and navigating system settings
On the back of the audio module, there are 3
buttons and a 2-digit 7-segment display (Figure 2,
7 ... 10) for the system settings.
„ Press / button.
Device turns to setting mode. The first menu
entry is displayed.
i The reading directions of the 7-segment display
varies by 180° depending on which button
you start with.
„ Select the desired menu entry with
(figure 7).
„ Confirm the selection with
i The 7 segments display goes dark if there is no
actuation for 5 seconds. Settings are applied.
The device returns to normal operation.
Setting the values
The menu entry to be set is confirmed and flashes
alternately with the value to be set.
„ Press / button.
Short button-press: change the value by one
step.
Long button-press: run through values. Scroll-
ing stops when the button is released.
„ Confirm set value with
The device applies the setting and returns to
the previous menu entry.
3 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Individual call push-
button address/function
Automatic call push-
button addressing
Door speaker
volume
Microphone
sensitivity
Operating sig-
nal sound volume
Door release
unlocking time
Door release
function
set
door address
Camera present
Call push-button
Backlighting settings
(switch-on brightness
level)
Display error codes
(max. 5 can be saved)
Reset error codes
factory setting
1) Door release functions without door call only possible single door systems
/
Automatic call push-button addressing
/
The call push-button and connector on the back
are addressed by the automatic call push-button
. addressing as follows. The addressing takes place
starting from the top downwards, and with a two-
rowed door station, counterclockwise automatically
upwards to the right (figure 11).
i Door stations are automatically pre-configured
at the factory.
The menu entry
nately with the entry
„ With
addressing.
„ Confirm with
During the addressing, the display flickers.
Afterwards the display returns to the previous
menu entry
Confirm the call push-
button to be set
= Cancel
= Start addressing
...
Default setting
...
Default setting
...
= Acoustic signal off
Default setting
... Seconds
Default setting
= only with door call
= also without door call
Default setting
x ... x
x = received line
address
Default setting
= No camera
= with camera
Default setting: Audio
Video
...
= Off
= lowest value
= highest value
= always on
Default setting
... Error codes
= module communication
= sticking call button
= module address
= no error present
= Cancel
= Reset
= Cancel
= Reset

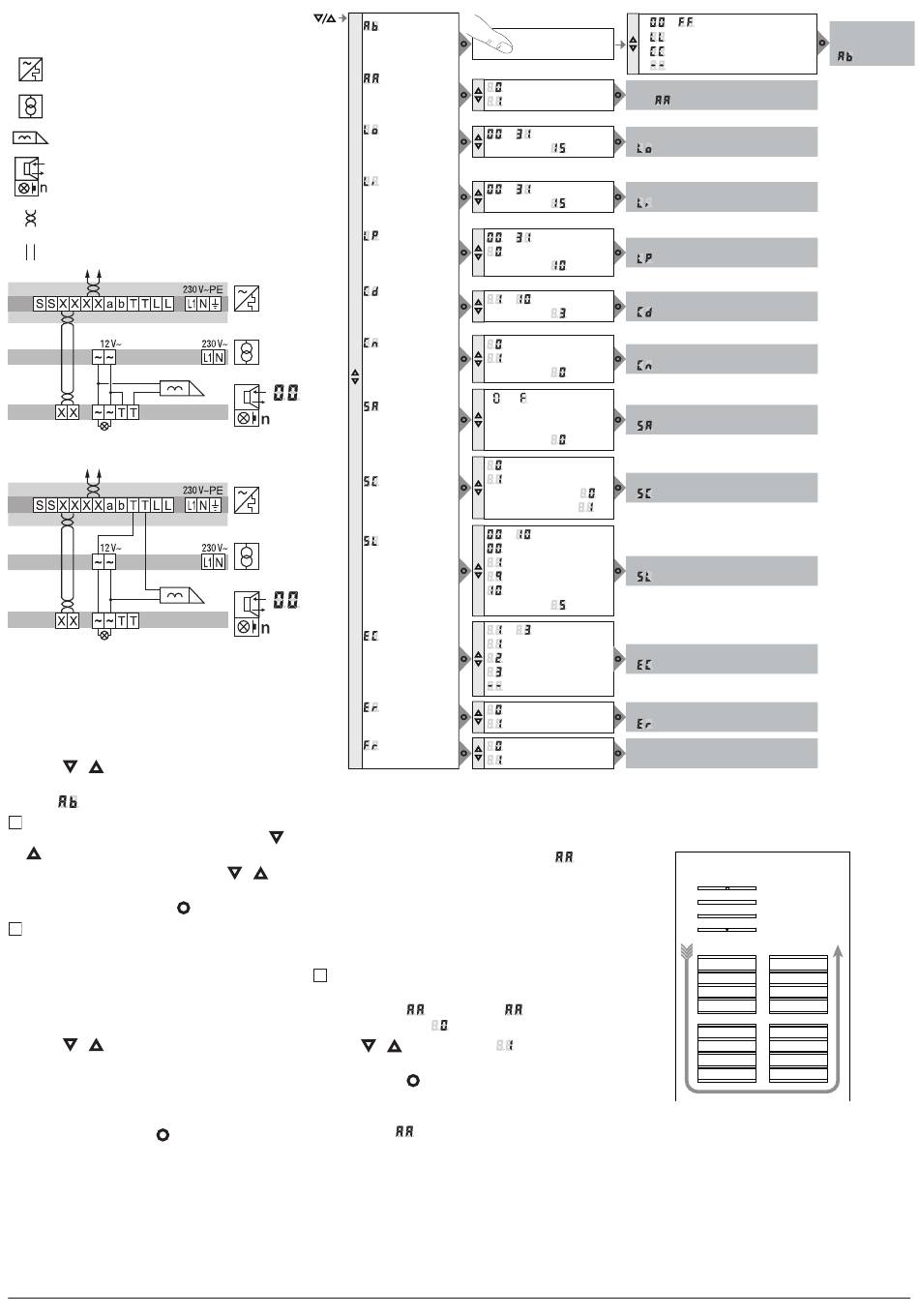

Figure 7: Overview of system settings
is confirmed. flashes alter-
for cancel.
/ select the entry for automatic
.
.
... = Call push-button address
= Light push-button
= Door release push-button
= no function
Addressing executed/cancel-
led, is displayed
Volume set,
is displayed
Sensitivity set.
is displayed
Volume set,
is displayed
Unlocking time set,
is displayed
seconds
Door release function is set,
1)
is displayed
Door address set,
is displayed
Camera option set,
is displayed
Backlighting set,
is displayed
Error codes were displayed,
is displayed
Error codes were deleted,
is deleted
Reset to the factory setting, in-
dication goes out
0/0
0/0
0/1
0/1
0/2
0/3
0/4
0/5
0/2
0/6
0/7
Figure 11: Module address and automatic call
push-button addressing
Address/Function
saved,
is displayed
0/F
0/E
0/4
0/D
0/C
0/B
0/A
0/3
0/9
0/8
