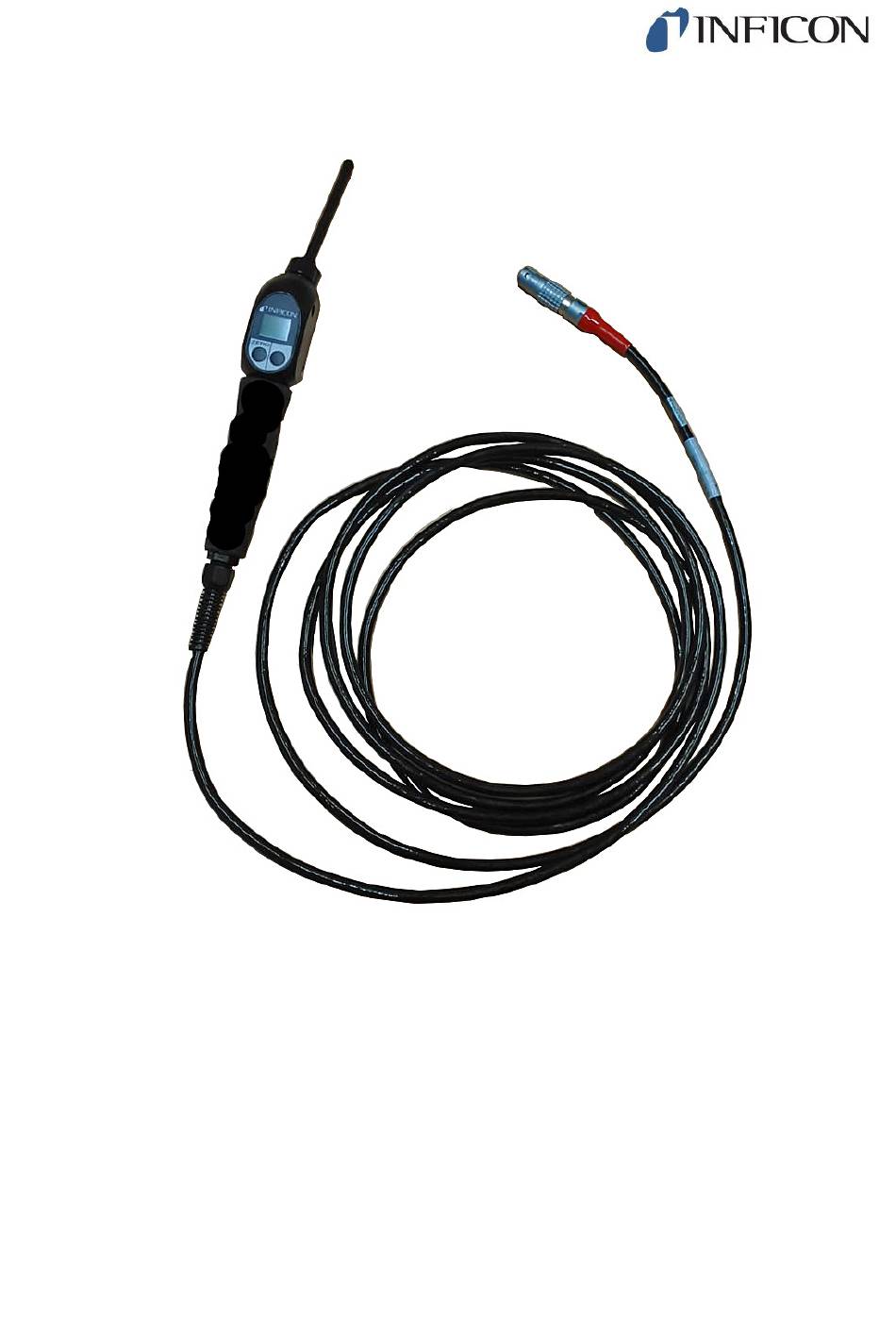

- Page 1 Translation of the original operating instructions Sniffer line SL3000 and SL3000XL Catalog No. 525-001, 525-002, 525-003, 525-004, 521-011, 521-012, 521-013, 521-014, 521-034 From software version lina10en1-03-(2111)
- Page 2 INFICON GmbH Bonner Strasse 498 50968 Cologne, Germany...
-
Page 3: Table Of Contents
INFICON Table of Contents Table of Contents 1 About these instructions .......................... 4 1.1 Target groups ............................ 4 1.2 Warnings.............................. 4 2 Safety................................ 5 2.1 Intended use ............................. 5 2.2 Duties of the operator .......................... 6 2.3 Owner requirements .......................... 6 3 Scope of delivery............................ 7 4 Description.............................. 8 4.1 SL3000 .............................. 8... -
Page 4: About These Instructions
1 | About these instructions INFICON 1 About these instructions These operating instructions describe the construction and maintenance of the sniffer lines: • SL3000 • SL3000XL Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights. -
Page 5: Safety
INFICON Safety | 2 2 Safety 2.1 Intended use The SL3000 and SL3000XL sniffer lines are used to locate gas leaks on test specimens in conjunction with the leak detectors: SL3000 SL3000XL Protec P3000 Protec P3000XL Ecotec E3000 XL3000flex UL3000 Fab Plus... -
Page 6: Duties Of The Operator
2 | Safety INFICON 2.2 Duties of the operator • Read, observe, and follow the information in this manual and in the work instructions provided by the owner. This concerns in particular the safety and warning instructions. • Always observe the complete operating instructions for all work. -
Page 7: Scope Of Delivery
INFICON Scope of delivery | 3 3 Scope of delivery Item Quantity Sniffer line SL3000 or SL3000XL in ordered version and quantity. See also "Accessories and spare parts [} 21]". Operating manual SL3000-SL3000XL-Operating-instruction-lina10en1-03-(2111) 7 / 26... -
Page 8: Description
4 | Description INFICON 4 Description The SL3000 and SL3000XL sniffer lines are used to locate gas leaks on test specimens in conjunction with the leak detectors: SL3000 SL3000XL Protec P3000 Protec P3000XL Ecotec E3000 XL3000flex UL3000 Fab Plus UL3000 Fab ULTRA... - Page 9 INFICON Description | 4 Leak rate as bar graph "ZERO" push button Leak rate, numerical Push button (individual assignment) Measured gas The leak rate is shown as a bar graph and displayed numerically. The unit of measurement is the same as on the main display of the respective leak detectors used.
-
Page 10: Sl3000Xl
4 | Description INFICON 4.2 SL3000XL The SL3000XL sniffer line pinpoints gas leaks on test specimens in conjunction with the leak detectors. Construction WARNING Risk of eye damage LEDs on the sniffer handle produce focused light that can damage the eyes. -
Page 11: Technical Data
INFICON Description | 4 The leak rate is shown as a bar graph and displayed numerically. The unit of measurement is the same as on the main display of the leak detectors used. There are two push buttons on the sniffer handle. Pressing the left button sets the background display to ZERO. - Page 12 4 | Description INFICON SL3000 SL3000XL End standby via a button on the sniffer probe Acknowledge calibration via a button on the sniffer probe Electrical data Operating voltage Mains frequency DC voltage Power consumption 20 VA Ambient conditions Max. height above sea level 2000 m...
-
Page 13: Installation
INFICON Installation | 5 5 Installation For connection to the respective leak detector, the sniffer line is connected to the connection socket provided on the front or rear of the device for this purpose. Via this connector both the electrical connection and the connection of the vacuum system is made. -
Page 14: Maintenance
6 | Maintenance INFICON 6 Maintenance 6.1 Maintenance SL3000 SL3000 Filter kit no. 200004312 O-rings (5x) Cotton filter (50x) Sinter filter (bronze poral filter, 5x) Needle tip tool Replacement capillary filters made of plastic (5x) Change cotton filters in the sniffer tip Fig. 1: Sniffer tip SL3000 with cotton filters removed... - Page 15 INFICON Maintenance | 6 Capillary filter change, different possibilities Sniffer tip and replacement capillary filter made of brass, cotton filter already included Sniffer tip and protection from water tip, cotton filter not required Sniffer tip and replacement capillary filter made of plastic, cotton filter already included.
- Page 16 6 | Maintenance INFICON Loosen the two fastening screws. Remove the O-ring and the sinter filter. Visually inspect the sinter filter and the O-ring for dirt and damage. ð If damage or dirt is found, always replace the O-ring and sinter filter in pairs.
-
Page 17: Maintenance Sl3000Xl
INFICON Maintenance | 6 6.2 Maintenance SL3000XL Overview Filter O-ring mount O ring Adapter with sniffer tube ü The sniffer tip is removed from the sniffer handle. Assembly ü The O-ring is installed on the adapter in the intended mount. -
Page 18: Maintenance Plan
Explanation of the maintenance plan: • I Service level I Customer • II Service level II Customer with technical training • III Service level III Authorized INFICON service technician • X Carry out maintenance as per operating hours or duration • X no time limit only operating hours •... -
Page 19: Decommissioning The Measuring Instrument
INFICON Decommissioning the measuring instrument | 7 7 Decommissioning the measuring instrument 7.1 Sending in the device WARNING Danger due to harmful substances Contaminated devices could endanger the health. The contamination declaration serves to protect all persons who come into contact with the device. - Page 20 7 | Decommissioning the measuring instrument INFICON 20 / 26 SL3000-SL3000XL-Operating-instruction-lina10en1-03-(2111)
-
Page 21: Appendix
Sniffer line SL3000 SL3000-3, sniffer line 3 m length 525-001 SL3000-5, sniffer line 5 m length 525-002 Sniffer line SL3000-5, 5 m length, with FTS385XL tip 521-034 SL3000-10, sniffer line 10 m length 525-003 SL3000-15, sniffer line 15 m length... - Page 22 8 | Appendix INFICON Sniffer tip FTS250XL 521-028 Holder for sniffer line SL3000/SL3000XL 551-203 Sniffer tip compl. 120 mm 20003685 Spare part sniffer tip compl. 400 mm 20003690 Reinforced gooseneck for FTS312XL 200008918 Reinforced gooseneck for FTS385XL 200008919 Reinforced gooseneck for FTS250XL...
-
Page 23: Ce Declaration Of Conformity
INFICON Appendix | 8 8.2 CE Declaration of Conformity SL3000-SL3000XL-Operating-instruction-lina10en1-03-(2111) 23 / 26... -
Page 24: Index
Index INFICON Index Capillary filter change 15 Change cotton filter 14 Connection 13 Declaration of Contamination 19, 20 Filter kit 14 Gas flow 11 Incorrect usage 5 Return 19 Sniffer line 21 Sniffer tips 21 Spare parts 21 24 / 26...
