Assembly
Assembly

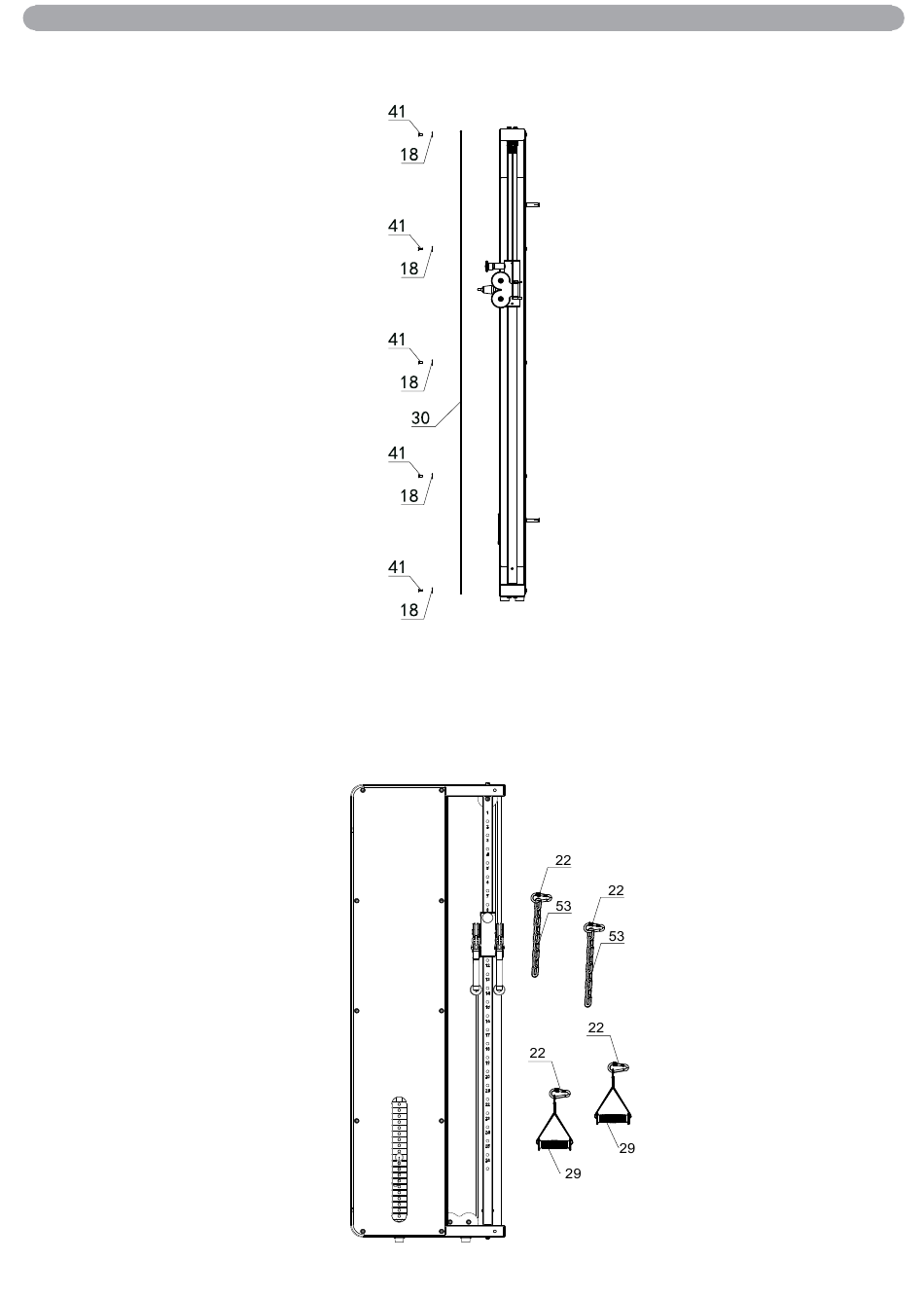

Assembly Step 4
Step 4:
Fix the front cover using the washers (18) and screws M8x15 (41) to the front of the HomeGym H1.
Assembly Step 5
Step 5:
Hook the 2 handles (29) onto the two brackets on the traction unit using the snap hooks (22).
If you need this to be longer, use the chains included in delivery (53). If necessary, you can also use longer chains. You can
usually obtain suitable chains for this from any DIY or hardware store.
7
6
