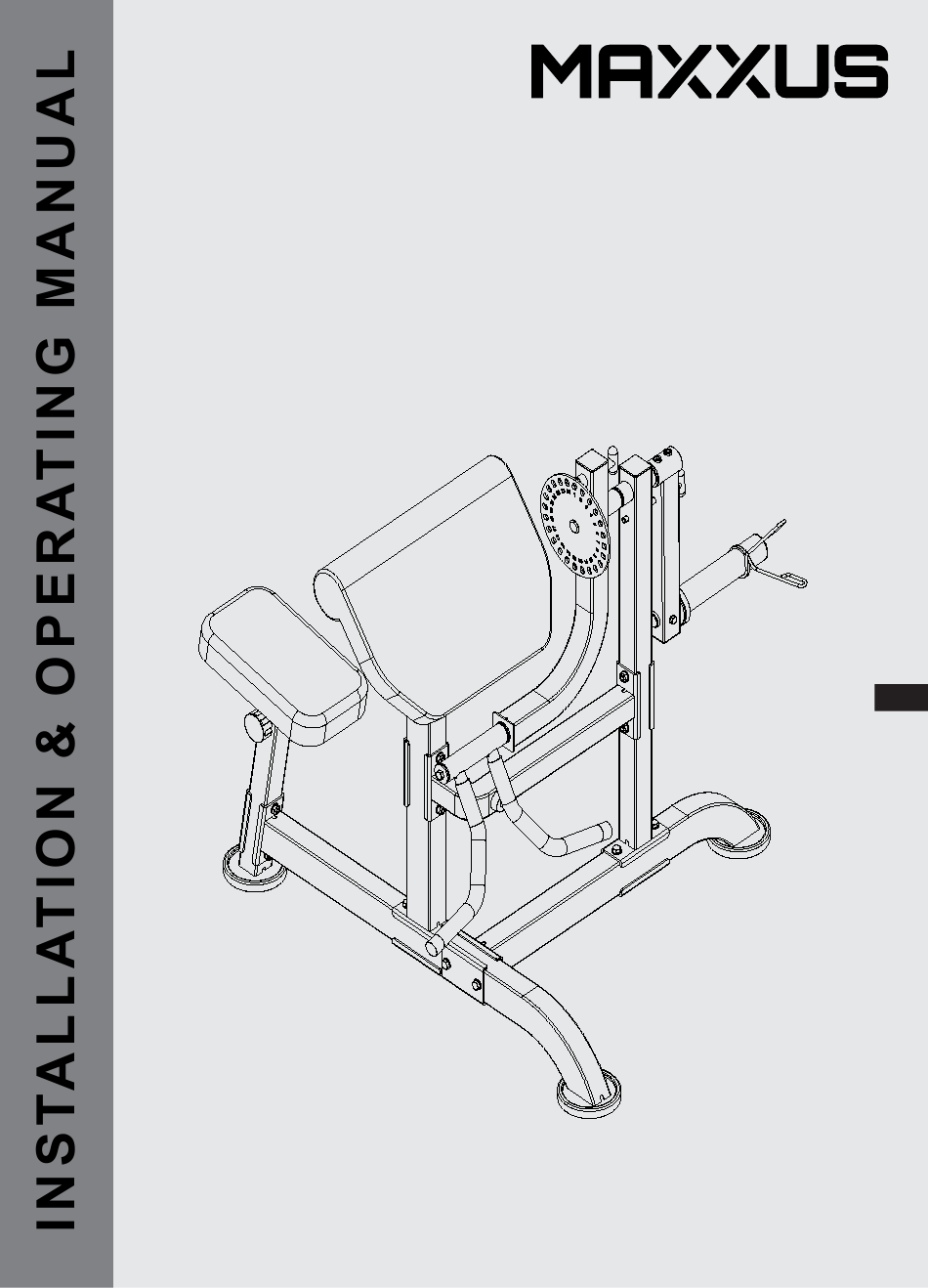

- Page 1 Scott Curl Machine...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 3 - 4 Important Information and Safety Instruction Technical Data Overview Parts List 6 - 8 Assembling Steps 9 - 14 Cleaning, Maintenance, and Disposal Warranty Training Information 17-18 Warm-Up and Stretching... -
Page 3: General Information
Important Information and Safety Instructions General Information Please ensure that all people using the device have read and understood the assembly and operating instructions. The assembly and operating instructions must be regarded as part of the product and kept in a safe place so that they can be referred to at any time if necessary. - Page 4 Important Information and Safety Instructions Training Clothes and Shoes Appropriate clothing and shoes suitable for fitness training must be worn with the device. The clothing should be designed in such a way that it cannot get caught in the device during training due to its shape (e.g., length). Training shoes should be selected to match the training equipment, provide a firm grip, and have a non-slip sole.
-
Page 5: Technical Data Overview
Technical Data Overview... -
Page 6: Parts List
Parts List... - Page 7 Parts List Part Name Qty. Side bottom tube assembly Bottom tube assembly Front upright tube assembly Barbell counterweight assembly Adjustment tube assembly Connector assembly Handle assembly Elbow pad support assembly Seat cushion support assembly Seat cushion adjustment tube assembly Swing limit assembly Hang the barbell assembly Barbell casing assembly Upright tube fixed U-shaped plate...
- Page 8 Parts List Pre-assembled parts Screw list Big flat washer( 25.5* 38*2)*1pcs Outer hexagon screw (M8*25)*10pcs Flat washer ( 8)*10pcs Outer hexagon screw (M10*70)*6pcs Flat washer ( 10 )*24pcs Locking nut (M10)*12pcs Outer hexagon screw (M10*90)*6pcs Outer hexagon screw (M10*20)*1pcs Allen wrench 5# 1pcs Big flat washer( 10.5* 38*2)*1pcs Open-end wrench 14#17# 2pcs...
-
Page 9: Assembling Steps
Assembling Steps Step 1: Lock pre-assembled part (A) into Pre-assembled part (B) using: 2 pieces of Outer hexagon screw M10x70 (No.37) 1 piece of Main frame fixed U-shaped plate (No.15) 2 pieces of Locking nut M10 (No.39) Step 2: Lock pre-assembled part (C) into Pre-assembled part (B) using: 2 pieces of Outer hexagon screw M10x70 (No.37) 1 piece of Upright tube fixed U-shaped plate (No.14) 2 pieces of Locking nut M10 (No.39) - Page 10 Assembling Steps Step 3: Lock Seat cushion (No.17) into Seat cushion adjustment tube assembly (No.10) using: 4 pieces of Outer hexagon screw M8×25 (No.35) Step 4: Insert Seat cushion adjustment tube assembly (No.10) into pre-assembled part (C), then lock it securely with: M16 Elastic bolt (No.26) Adjust to the suitable position before tightening.
- Page 11 Assembling Steps Step 5: Lock pre-assembled part (D) into Pre-assembled parts (E) and (F) respectively using: 2 pieces of Outer hexagon screw M10×70 (No.37) 1 piece of Main frame fixed U-shaped plate (No.15) 2 pieces of Locking nut M10 (No.39) 2 pieces of Outer hexagon screw M10×90 (No.40) 1 piece of Upright tube fixed U-shaped plate (No.14) 2 pieces of Locking nut M10 (No.39)
- Page 12 Assembling Steps Step 8: Lock the Elbow pad (No.16) into the support plate of pre-assembled part (F) using: 4 pieces of Outer hexagon screw M8×25 (No.35)
- Page 13 Assembling Steps Step 9: Lock pre-assembled part (G) into the pole of pre-assembled part (E) using: 1 piece of Outer hexagon screw M10×20 (No.41)
- Page 14 Assembling Steps Step 10: Lock pre-assembled part (H) into the hole of pre-assembled part (E) using: 2 pieces of Outer hexagon screw M8×25 (No.35) Step 11:...
-
Page 15: Cleaning, Maintenance, And Disposal
Cleaning, Maintenance, and Disposal Cleaning Please use only a slightly damp cloth for cleaning. Never use gasoline, thinner, or other aggressive cleaning products, as these may cause damage. Attention! The device is only suitable for private home and indoor use. Keep the device clean and free from moisture. Damage caused by body sweat or other liquids is not covered by the warranty under any circumstances. -
Page 16: Mains Adapter
Mains Connection Warranty Cockpit Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on The warranty is 24 months and applies to new goods at the first purchase, beginning with the invoice or delivery date. the front of the main frame (A01). -
Page 17: Training Information
Training Information Mains Connection Cockpit Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on Training Preparations the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. CAUTION: Before you start training, not only must the training equipment be in perfect condition, This device should only be connected to an earthed socket that has been installed by a qualified electrician. -
Page 18: Switching On The Device
Training Information Mains Connection Cockpit Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on Hydration the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. CAUTION: This device should only be connected to an earthed socket that has been installed by a qualified electrician. -
Page 19: Connecting The Device
Warm-Up and Stretching Mains Connection Cockpit Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. CAUTION: This device should only be connected to an earthed socket that has been installed by a qualified electrician. - Page 20 NORDRING 80, 64521 GROß-GERAU WWW.MAXXUS.COM...
