Assembly
Assembly Step 3

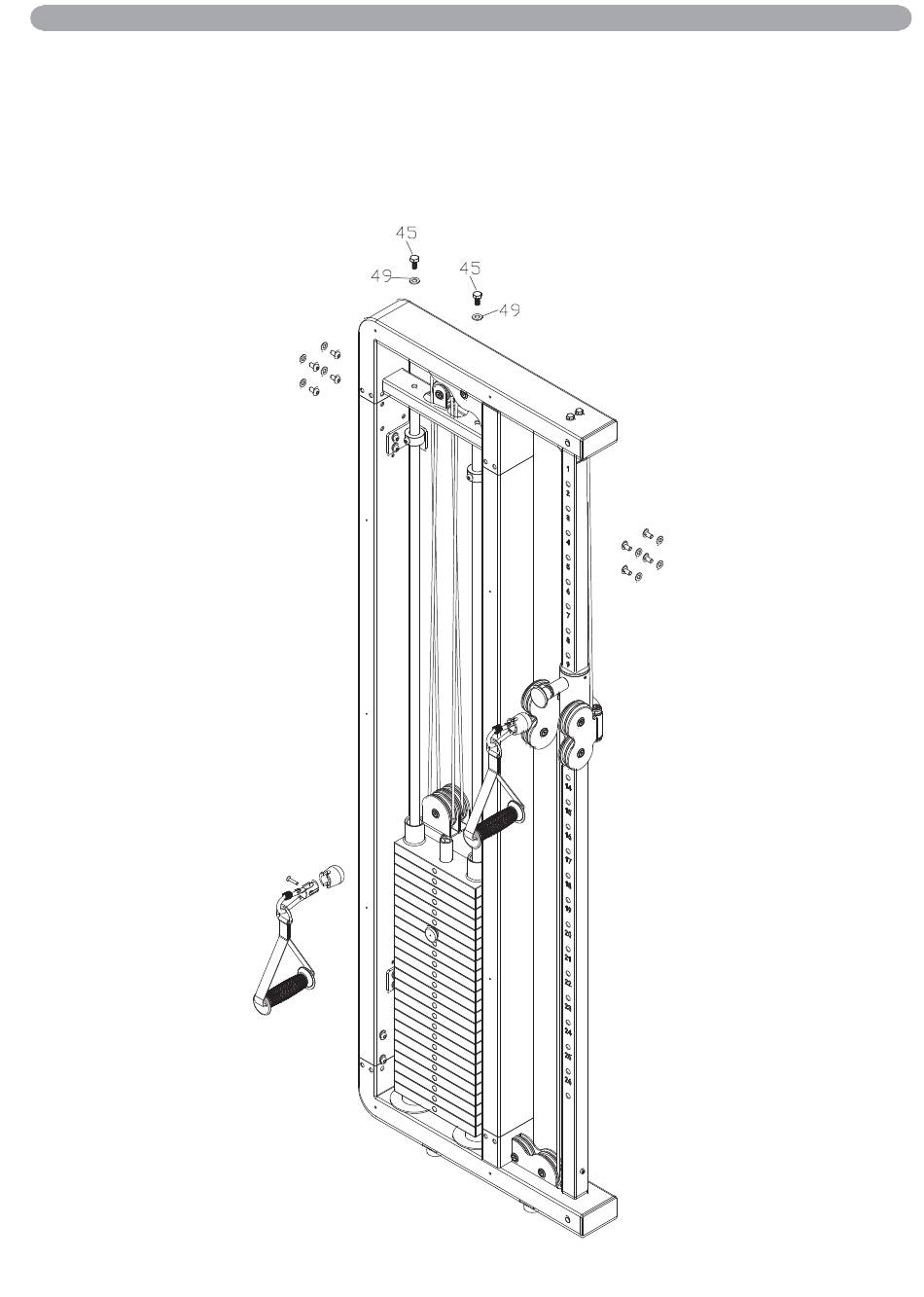

Use No.17 wrench to take out the screw M10*20mm (45) and the washer Ø10.5xØ20xT2.0 (49).
10
3.
M10*20
(45)
10.5* 20*t2.0
