B-Smart
● Multiple power supply options, including battery and 10-30 V
● Configurable pulse and analog signal outputs.
Configuration
The B-Smart can be used for many types of application and has a SETUP mode to allow for
configuring it to your requirements. See
All settings are stored in an EEPROM memory so they will not be lost if there is a power failure.
Input
● One flow meter with a passive or active pulse, NAMUR or coil signal output
● Several options are available for powering the sensor.
Output
● One configurable pulse output to transmit pulses representing the passing of a pre-set quantity.
● One configurable 4-20 mA analog output representing the actual flow rate.
Backlight
A backlight is standard available (externally powered only).
3.3

INSTALLATION EXAMPLE

Following parts can be recognized in below installation example.
1. Display
2. Front cover
FW_B-SMART_M_v0401-01_EN
Section 5: Configuration [»10]
1 2
5

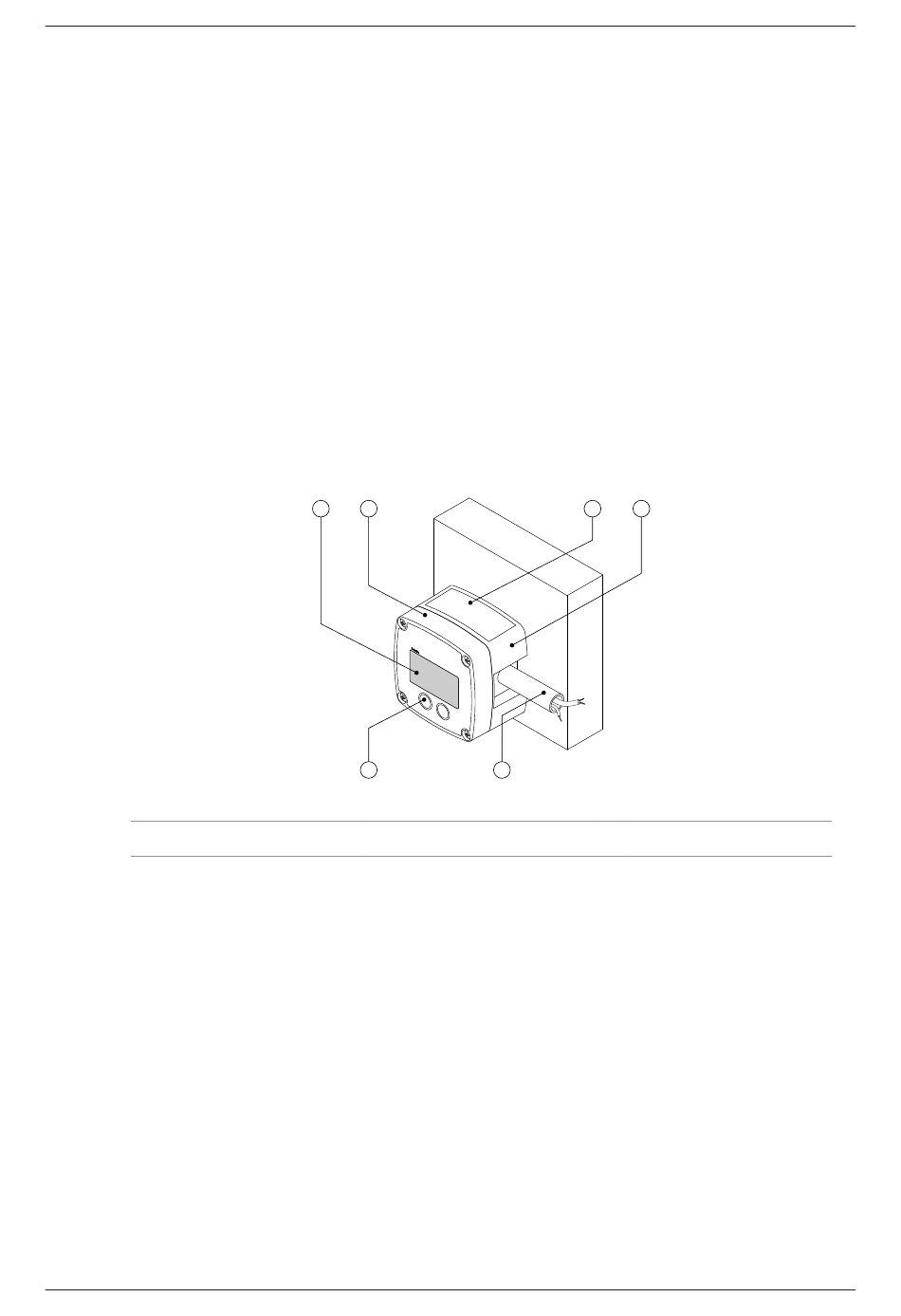

Fig. 3:
Installation example B-Smart
3. Label
4. Back cover
for further information.
3 4
6
5. Keys
6. Cable entry
