Fluidwell B Series Quick Reference Manual

B-CONNECTED
Flowrate indicator / totalizer / transmitter with
Modbus communication
Quick Reference Guide
B-Series - Basic with a capital B
More info: www.fluidwell.com
MORE INFORMATION
Downloads:
•
Detailed user-manual
•
Declaration of Conformity (DoC),
by scanning the QR-code:
or visit our website:
www.fluidwell.com/bseries.
Fluidwell bv
Voltaweg 23
5466 AZ Veghel - The
Netherlands
www.fluidwell.com
Doc: B-Connected_QRG_06_EN.docx
This publication is subject to change without prior notice.
1. INTRODUCTION
The B-Series are intended for use in safe areas (ordinary locations)
and designed and constructed for measurement purposes in
industrial processes. A hazardous situation may occur if the B-
Series is not used for the purpose it was designed for or is used
incorrectly.
2. DESCRIPTION
The B-Smart is used as a flowrate indicator/totalizer and has one
flowmeter input, one isolated scaled pulse output, one isolated
analog output and one RS485 port.

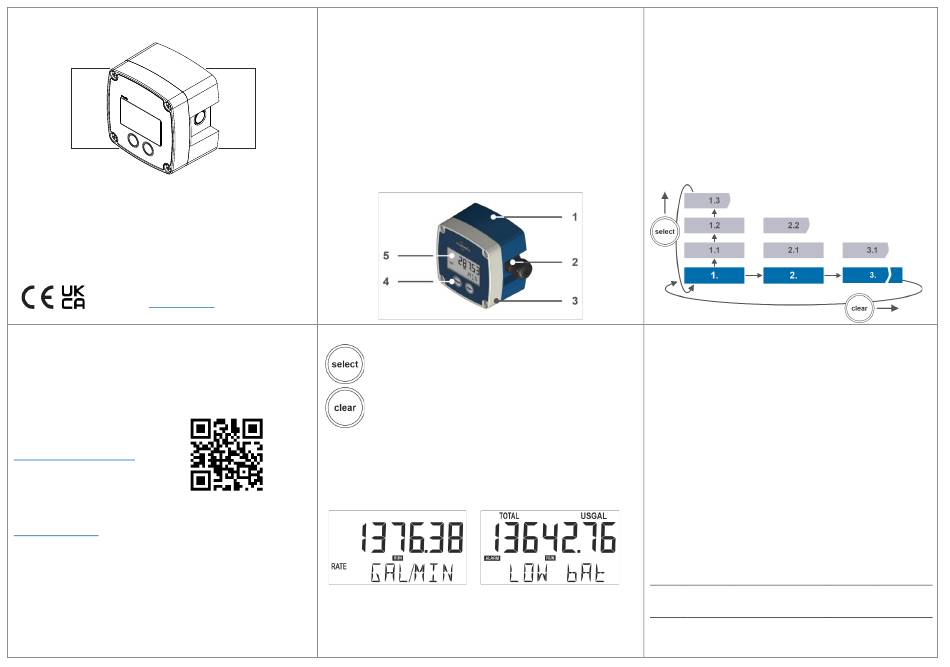

B-Series components:
• the front cover (3) with the display (5) and the control keys (4);
• the body (1) with knockouts for the cable glands (2).
3. OPERATION
SELECT-key
To scroll to view Flowrate, Total or Accumulated total.
CLEAR-key
To reset (clear) Total, when shown on screen,.
You can reset (clear) the Total:
1. Press the SELECT key to view the Total screen.
2. Press the CLEAR key two times.
Examples display information:
Flowrate Low battery alarm
4. NAVIGATION IN SETUP MENU
The setup menu has menus (e.g. 1, 2 and 3) and sub-menus
(e.g. 2.1, 2.2 etc.) to configure the B-Series.
Enter / leave setup: press and hold SELECT for 7 seconds
Select a menu: press CLEAR
Select a sub-menu: press SELECT
Change selection:
➢
simultaneously, press SELECT + CLEAR.
➢
press SELECT to increase value en RESET to
select the digit or change the selection.
Confirm change: simultaneously, press SELECT + CLEAR
5.A SETUP MENU STRUCTURE
1. TOTAL 5.
1.1 Unit 5.1
1.2 Decimals 5.2
1.3 K-Factor 5.3
1.4 K-Factor decimals
6.
2.
RATE 6.1
2.1
Unit 6.2
2.2
Time unit 6.3
2.3
Decimals 6.4
2.4
K-Factor 6.5
2.5
K-Factor decimals 6.6
3.
METER 7.
3.1
Signal 7.1
7.2
4.
ANALOG OUT
7.3
4.1
Output
7.4
4.2
Rate min
7.5
4.3
Rate max
4.4
Tune min
4.5
Tune max
5.B Modbus registers
(see manual for description and full list)
PDU H.REG VARIABLE
6146 46147 Total
6150 46151 Acc. Total
6154 46155 Flowrate
4640 44641 Clear total (write: 258)
DIGITAL OUT
Mode
Amount decimals
Amount
COMM
Mode
Speed (baudrate)
Databits
Parity
Address
Transmission delay
OTHER
Model
Software version
Serial number
Pin code
Backlight
# REGS TYPE
4 UINT64
4 UINT64
2 UINT32
1 UINT16
