INTRODUCTION

3.1

SYSTEM DESCRIPTION

The flow rate indicator / totalizer model B-Smart is a microprocessor-driven instrument designed to
show the current flow rate, resettable total, non-resettable accumulated total, and to transmit flow
rate and totals.
This manual describes the daily use, configuration and installation of the B-Smart with pulse input
from a flow meter.
The following figure shows the B-Smart used in a typical installation.
3.2

PRODUCT FEATURES

General characteristics
● User friendliness: easy two button operation
● Good readings in full sunlight and darkness through bright backlight
● Mounting flexibility through compact and durable IP65 enclosure for field, wall or meter mounting
● Ability to process most common pulse signals
Page 6

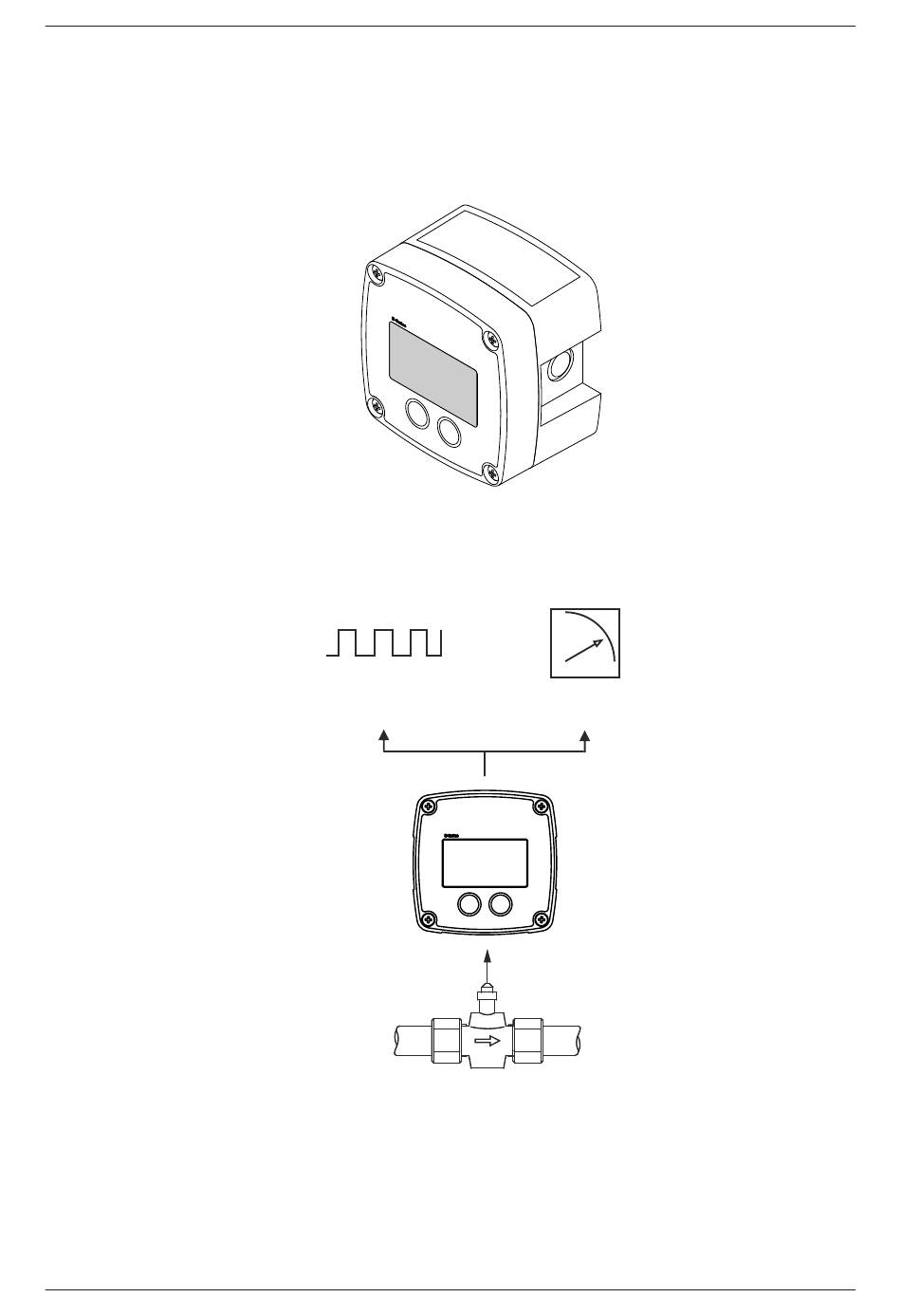

Fig. 1:
The B-Smart
pulse output
Fig. 2:
Typical application
mA
4-20mA output
FW_B-SMART_M_v0401-01_EN
B-Smart
