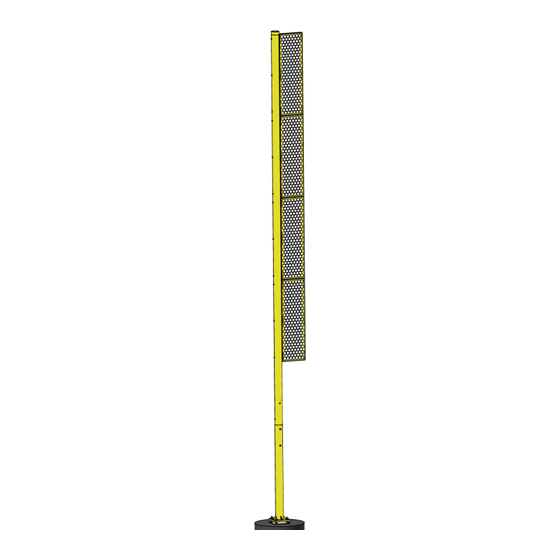

- Page 1 -- BBFP-30SM -- -- SBFP-30SM -- (30’ PROFESSIONAL / SOFTBALL FOUL POLE) Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Page 1 of 9...
- Page 2 30’ Professional / Soft Ball Foul Pole, BBFP-30SM / SBFP-30SM QUANTITY IS FOR ONE COMPLETE FOUL POLE ITEM IMAGE DESCRIPTION TOP POLE P/N: BBFP-30TU BOTTOM POLE P/N: BBFP-30-D2 PANEL P/N: BBPS-B 3/8” FLAT WASHER P/N: HW2047 3/8”-16 NYLON LOCK NUT P/N: HN265 3/8”-16 x 1”...
- Page 3 ITEM IMAGE DESCRIPTION 7/8”-9 x 18” LONG THREADED ROD P/N: SR5071 LEVELING PLATE P/N: FBGP-600-5 7/8”-9 HEX NUT P/N: P/N: HN5020 7/8”-9 FLAT WASHER P/N: HW5003 TOP CAP FOR 5-9/16" OD P/N: EC0050 AEROSOL YELLOW RAL 1018 SINGLE CAN P/N: PT0062SC AEROSOL ORANGE RAL 2004 SINGLE CAN P/N: PT0101SC AEROSOL WHITE RAL 9003 SINGLE CAN...
-
Page 4: Tools/Materials Required
2) USE OF THIS EQUIPMENT OTHER THAN INTENDED, MAY BE HAZARDOUS. 3) ALTERATION OR MODIFICATION OF THIS EQUIPMENT MAY BE HAZARDOUS AND RESULT IN INJURY. FOR REPAIR OR REPLACEMENT, CONTACT YOUR DEALER OR JAYPRO SPORTS. 4) CONCRETE SHOULD BE A MINIMUM 4000-PSI MIX. ASSEMBLY INSTRUCTIONS TOOLS / MATERIALS REQUIRED: (6) 3/4”... - Page 5 Once foundation finished curing, backoff the nuts and place a washer. 7/8”-9 HEX NUTS w/ WASHERS LEVELING PLATE FIGURE: 1 CONCRETE REBAR BASKET (6) ¾” x 66” REBAR (BY OTHERS) FIGURE: 2 Note: These are suggested dimensions for average soil conditions, consult local building codes. *For Areas Subject To Higher Wind Loads Footing Dimensions May Need To Be Adjusted.
- Page 6 Bottom Pole Section: 1. Lower the bottom pole over the threaded rods into the jellybean slots. 2. Adjust the bottom nuts up or down to plumb the bottom pole. 3. Rotate the upright as needed to align the panel mounting holes per the figure 1. 4.
- Page 7 Top Pole Section: 1. Install the top cap by tapping it on with a rubber mallet. 2. Insert the top pole into the bottom pole as shown below. TOP CAP P/N: EC0050 TOP POLE P/N: BBFP-30TU FIGURE: 4 TOP UPRIGHT POLE P/N: BBFP-30TU BOTTOM POLE P/N: BBFP-30-D2...
- Page 8 Wing Panels: 1. Attach all the wing panels per figure 5. Orient the panels so the front side is facing the field. (Note image shown is from the back side of panels.) 7/16”-14 x 7” HEX BOLT P/N: HS5383 3/8”-16 x 1” HEX BOLT P/N: HS286 3/8”...
- Page 9 2. Rotate the pole to position the panels perpendicular to the foul line, as shown in figure 1. 3. Drill the two holes in the top upright pole to accommodate the hardware as shown. This finalize the location. Note drill holes for 1/2” hardware. 4.
