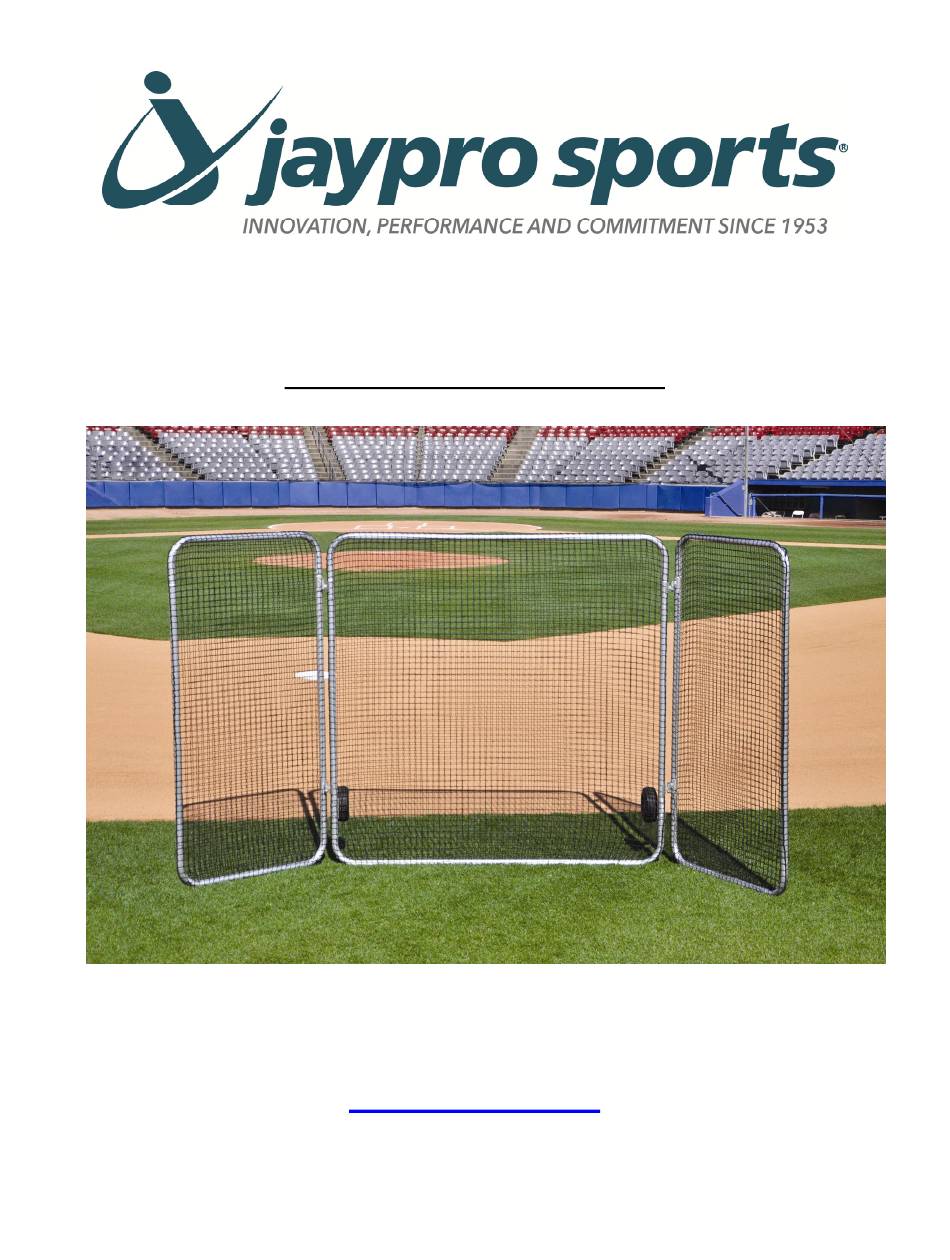

- Page 1 --- BLFSW --- (BIG LEAGUE FUNGO SCREEN W/ WING) Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com REV - A Page 1 of 5...
- Page 2 JAYPRO SPORTS BLFSW, 8’ x 8’& 4’ x 8’ BIG LEAGUE TRI-FOLD SCREENS IMPORTANT NOTICE: 1) BEFORE EACH USE CHECK EQUIPMENT FOR PROPER CONNECTING HARDWARE AND STRUCTURAL INTEGRITY. REPLACE DAMAGED OR MISSING HARDWARE IMMEDIATELY. 2) USE OF THIS EQUIPMENT OTHER THAN INTENDED, MAY BE HAZARDOUS.
- Page 3 ASSEMBLE THREE FRAMES: TYPICAL PIPE ASSEMBLY After this step install net to each frame before moving to next step. REV - A Page 3 of 5...
- Page 4 INSTALL NET: 1) Install the net on each of the frames by sliding the open end of the net over the top of the frame. Tie closed the bottom opened end of the net using the cord provided. ASSEMBLE WHEELS: Important note: There are only four of these 3/8”...
- Page 5 Important note: There are only sixteen of these 3/8” washers with larger OD ASSEMBLE HINGE: (4 PLACES) and is shiny looking. TYPICAL HINGE DETAIL (Very important – helps stability of unit) Using at least 2 people, lift the frame onto the vertical position. ...
