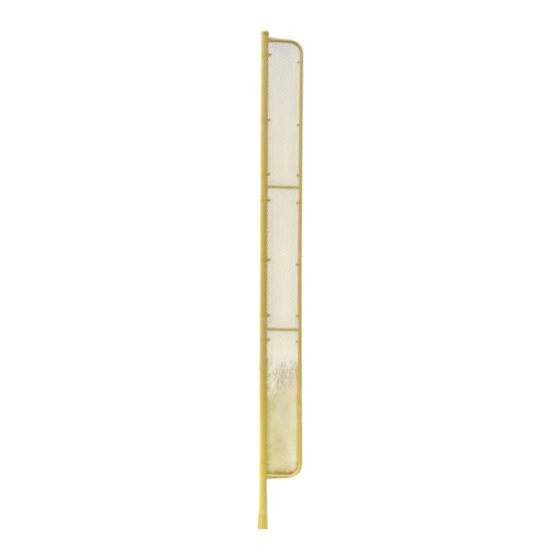

- Page 1 -- BBFP-30 -- (30’ PROFESSIONAL FOUL POLE) Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Rev-A Page 1 of 13...
- Page 2 JAYPRO SPORTS 30’ Professional Foul Pole, BBFP-30 QUANTITY IS FOR ONE COMPLETE FOUL POLE ITEM IMAGE DESCRIPTION TOP FOUL POLE ASSEMBLY WITH PRE-ASSEMBLE SCREEN PANELS 168-1/4” LOWER FOUL POLE SECTION YELLOW POWDER COATED CAP 61” GROUND SLEEVE (OPTIONAL) #12-14 SELF-DRILLING SCREW, ZP 1/2"-13 NYLON LOCK HEX NUT, ZP...
-
Page 3: Tools Required
HAZARDOUS. 3) ALTERATION OR MODIFICATION OF THIS EQUIPMENT MAY BE HAZARDOUS AND RESULT IN INJURY. FOR REPAIR OR REPLACEMENT, CONTACT YOUR DEALER OR JAYPRO SPORTS. ASSEMBLY INSTRUCTIONS TOOLS REQUIRED: (1) 3/4” x 48” Long Re-Bar (Consult with local building code) (1) 3/4”... - Page 4 FIGURE: 1 FIGURE: 2 Rev-A Page 4 of 13...
- Page 5 1. For a permanent installation refer to SECTION II. 2. For a semi-permanent installation (w/ ground sleeve) refer to SECTION III. 3. Identify the orientation of the lower foul pole’s top & bottom. Rev-A Page 5 of 13...
- Page 6 Permanent Installation Lower Pole: 1. Install two anti-rotation rods into the bottom side of the lower foul pole. Center rods within the pole and install 1/2” flange nuts on both ends (see figure 3). 2. Install the “safety stop bolt” hardware into the third hole from the top (see figure 4).
- Page 7 FIGURE: 4 FIGURE: 5 Rev-A Page 7 of 13...
- Page 8 Top Pole: 1. Install the yellow powder coated cap on top of foul pole with #12-14 self- drilling screw (figure 6). 2. Using a lifting device (crane) insert the top foul pole into the lower foul pole. Rotate the post so that the panels are to the inside of the field. 3.
- Page 9 FIGURE: 7 Rev-A Page 9 of 13...
- Page 10 III. Semi-Permanent Installation Ground Sleeve: 1. Place the ground sleeve into the footing and fully support it in a plumbed position (figure 8). 2. Pour concrete into the footing and reinforce with six 3/4” x 48” long rebar (consult local building code. Rebar not included, to be provided by installer) evenly space around the spot for the lower foul pole.
- Page 11 Foul Pole Assembly: 1. Install the “safety stop bolt” hardware into the third hole from the top (see figure 9). This will allow the top pole to rest inside the lower foul pole during assembly. 2. Install the yellow powder coated cap on top of foul pole with #12-14 self- drilling screw (figure 10).
- Page 12 FIGURE: 10 FIGURE: 11 Rev-A Page 12 of 13...
- Page 13 FIGURE: 12 Rev-A Page 13 of 13...
